4-4
Tg1576-ID-SO

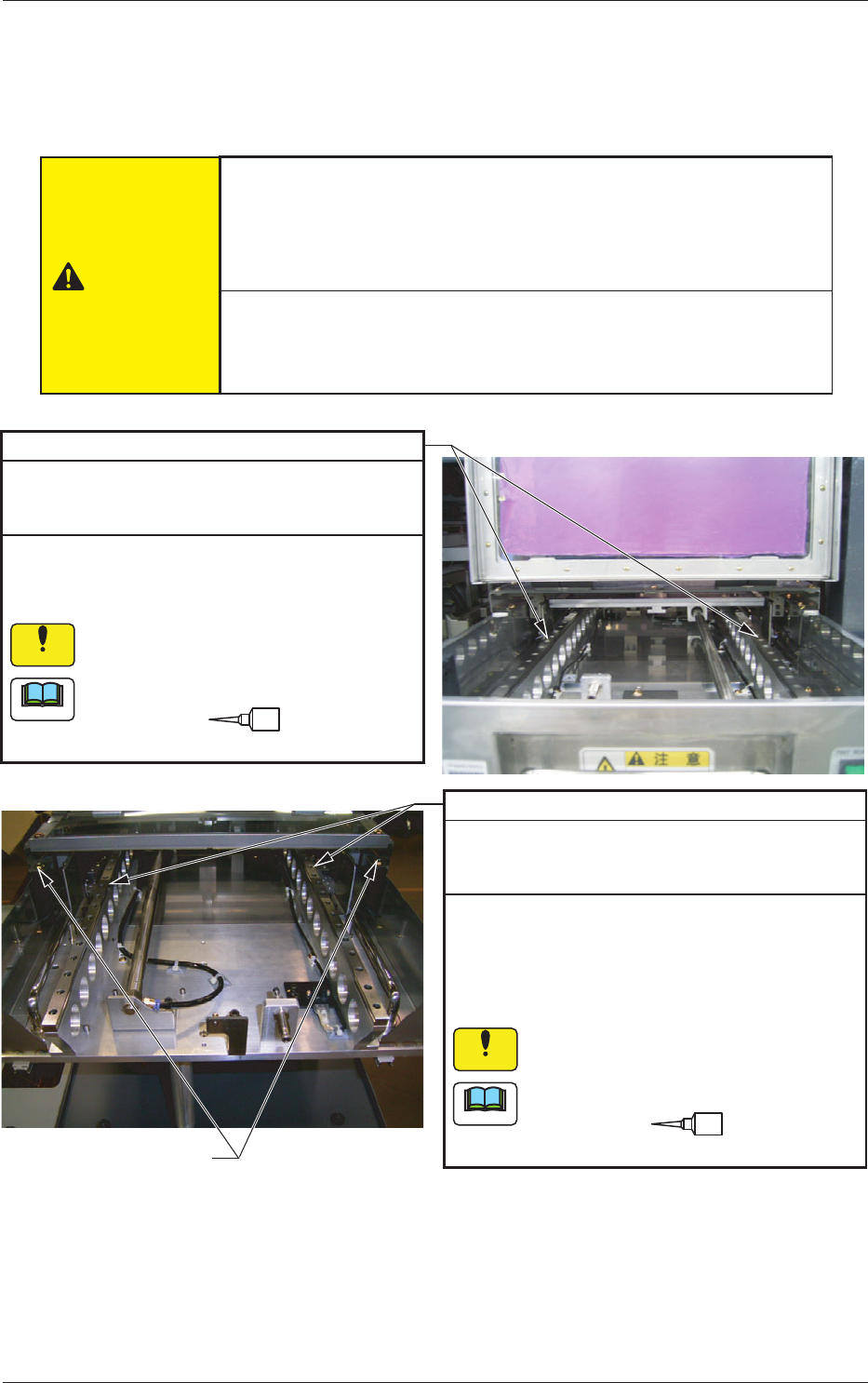

2. Inspection, Cleaning, and Lubrication Spots
2.1 Traverse
CAUTION
When the single-transfer tray feeder is set to or removed from
the cart, or the tray feeder itself is moved, two persons should
hold the specied handle and take the greatest care not to drop it
onto anybody's foot.
When the cover is to be opened or closed, open or close it slowly
with the handle held securely.
Take care so that your nger is not caught.
Linear Guides
Take ample care not to leave any
waste threads after cleaning.
No.18
Required Time: 5 minutes
Linear Guides
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
(1) Remove the two screws on the transparent
cover.
(2) Wipe old grease using a oil cloth and apply
new grease in the groove on the linear guide
using a syringe.
Take ample care not to leave any
waste threads after cleaning.
Use No. 18 (green) nozzle.
No.18
Required Time: 10 minutes
Screws (2 Places)
Note
Notice
Note
Notice
Use No. 18 (green) nozzle.
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Wipe old grease using a oil cloth and apply
new grease in the groove on the linear guide
using a syringe.
Fig. D2
0709-002
2. Inspection, Cleaning, and Lubrication Spots
4-5
Tg1576-ID-SO
3. Important Servicing Parts
3.1 List of Important Servicing Parts
Listed below are the parts that may be consumed within one year.
Contact our marketing department or sales agency whenever you need to
purchase some of these parts.
Table D2
Name Part No. Part Name Q'ty
Recommended
Q'ty/Year
Exploded
View
Remarks
Traverse 630 158 8339 GUIDE, LINEAR 2 - -
0707-001
3. Important Servicing Parts
4-6
Tg1576-ID-SO
0707-001
