1. Introduction
1.1 Machine Outline
The QP-341E/351E is a limited footprint multi-function high-precision SMD mounter.
The machine is ideally suited for positioning after a high-speed chip shooter as a fine
pitch mounter, or used in a multiunit, multipurpose line for placing anything from odd-
form components to flip chips.
The machine occupies a minimum of floorspace, with the width of the QP-341E withheld
to 835 mm (or 916 mm for the QP-351E), and a conveyor length of 837 mm
(918 mm for the QP-351E).
The machine employs a triple-shafted placing head, with independent rotational and
vertical movement for each of the attached nozzles.
IP series mechanical feeders and power feeders can be loaded.
1.2 Features
• QP-341E/351E can be used for small or large scale production because of its
compactness and excellent line configurability.
• Configure the production line to suit your throughput requirements, and the kind of
parts to be placed.
• Expand your supported part range using Fuji's two-camera system.
• Slim frame occupies the minimum of floorspace.
• Placing accuracy of ±0.066 mm (3σ) for regular parts, and ±0.03 mm (3σ) for parts
such as QFPs with leads on all four sides.
• Supports the same Power Feeders used with the QP-132E and the NP-133E, in
addition to mechanical feeders (also compatible with the QP-242E and IP-3).
• Supports the handling of large boards of up to 457 x 508 mm. The PFU-3E or the
MFU-6E can be attached/detached on both the front and rear side of the machine
enabling easy maintenance and changeover.
– 1 – QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)

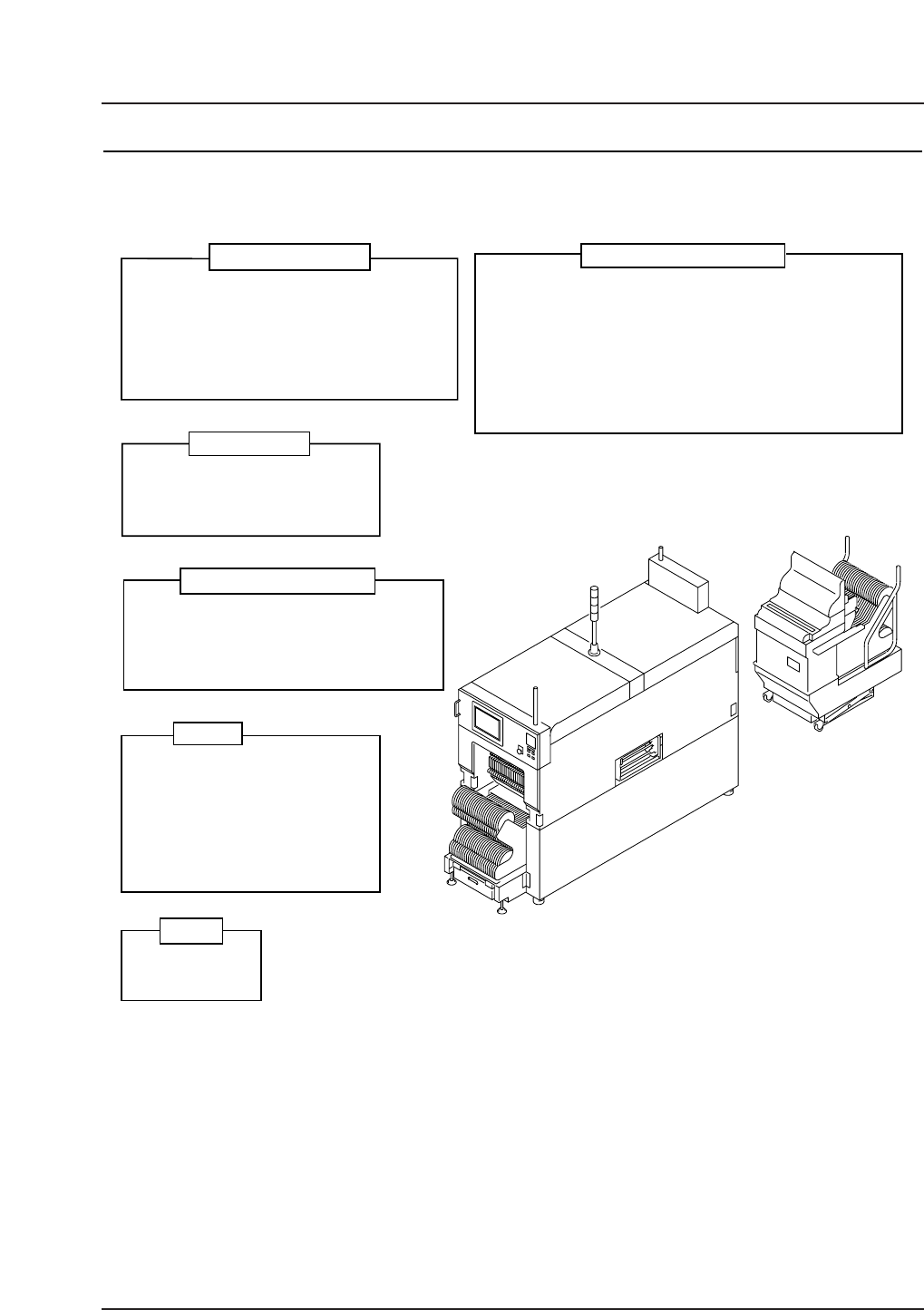

2. Machine Data and Structure
2.1 Machine Data and Operating Environment
Notes : Power Source: The built-in transformer has primary side taps of 200, 210, 220, 230, 380, 400,
415, 460 and 480 Volts.
A dedicated power source, not shared with other large equipment, should be used in order to
avoid problems with electrical noise, voltage fluctuations, high-frequency distortions, and other
related problems.
IP22: IEC compliant (protection against intrusion by body parts, solid objects and water).
QP3S001
Power & Air Requirements
Voltage:
Frequency:
Power consumption:
Air pressure:
Air consumption:
System Components
Display Panels
Color LCD touch panel
Language: Japanese or English
Weight
QP-341E:
MFU-6E (with tape cutter):
MTU-8E:
MTU-9E:
Installation Environment
Temperature:
Humidity:
Protective features: Class IP22 or equivalent
Color
50/60 Hz
2.5 kVA
200 V AC (± 10 %), three-phase
0.5 MPa (5 kgf/cm )
150 Nl/min.
1800 kg
Machine: Ivory
PCB conveyors
XY-robots
Part supply stations
Placing heads
Part and fiducial mark inspection cameras
30% to 80%
15°C to 35°C
2
+600 Nl/min. (empty tray rejection)
+55 Nl/min. (vacuum back-up)
QP-351E: 2050 kg
PFU-3E (with tape cutter):
180 kg
190 kg
360 kg
360 kg
– 2– QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)
– 3 – QP-341E-MM/QP-351-MM Specifications
Preliminary (January 10, 2000)

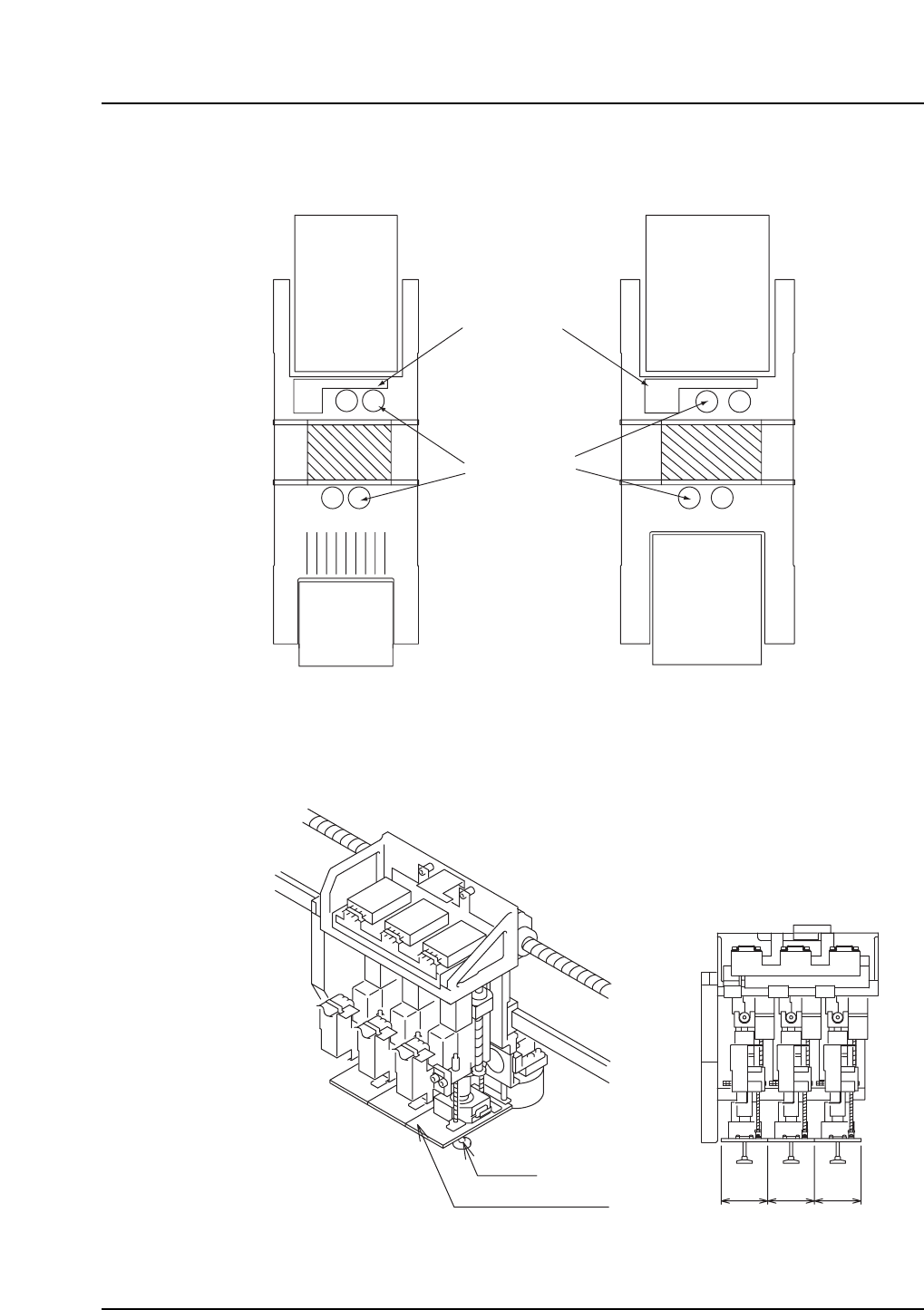

2.2 Machine Structure
2.2.1 Overview
2.2.2 Placing Head
Nozzle
60 60 60
Background lighting
QP3S002B
(mm)
Cameras
Rear side
PFU-3E
MFU-6E
MTU-8E/9E
Front side (fixed)
QP3S002A
Nozzle
stations
MF, PF
or none
QP-341E
Rear side
PFU-3E
MFU-6E
MTU-8E/9E
Front side
QP-351E
MFU-6E
PFU-3E
or none
