Page SAMSUNG TECHWIN 93 SP1 Conveyor Bypass SP1D2 (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference 55 M3*15 (BL/Zn) SO CKET HEAD CAP SCREW 6 56 M3*10 (BL/Zn) SO CKET HEAD CAP SCREW 18 57 M3*8 (BL/Z…
Page
SAMSUNG TECHWIN
92
SP1

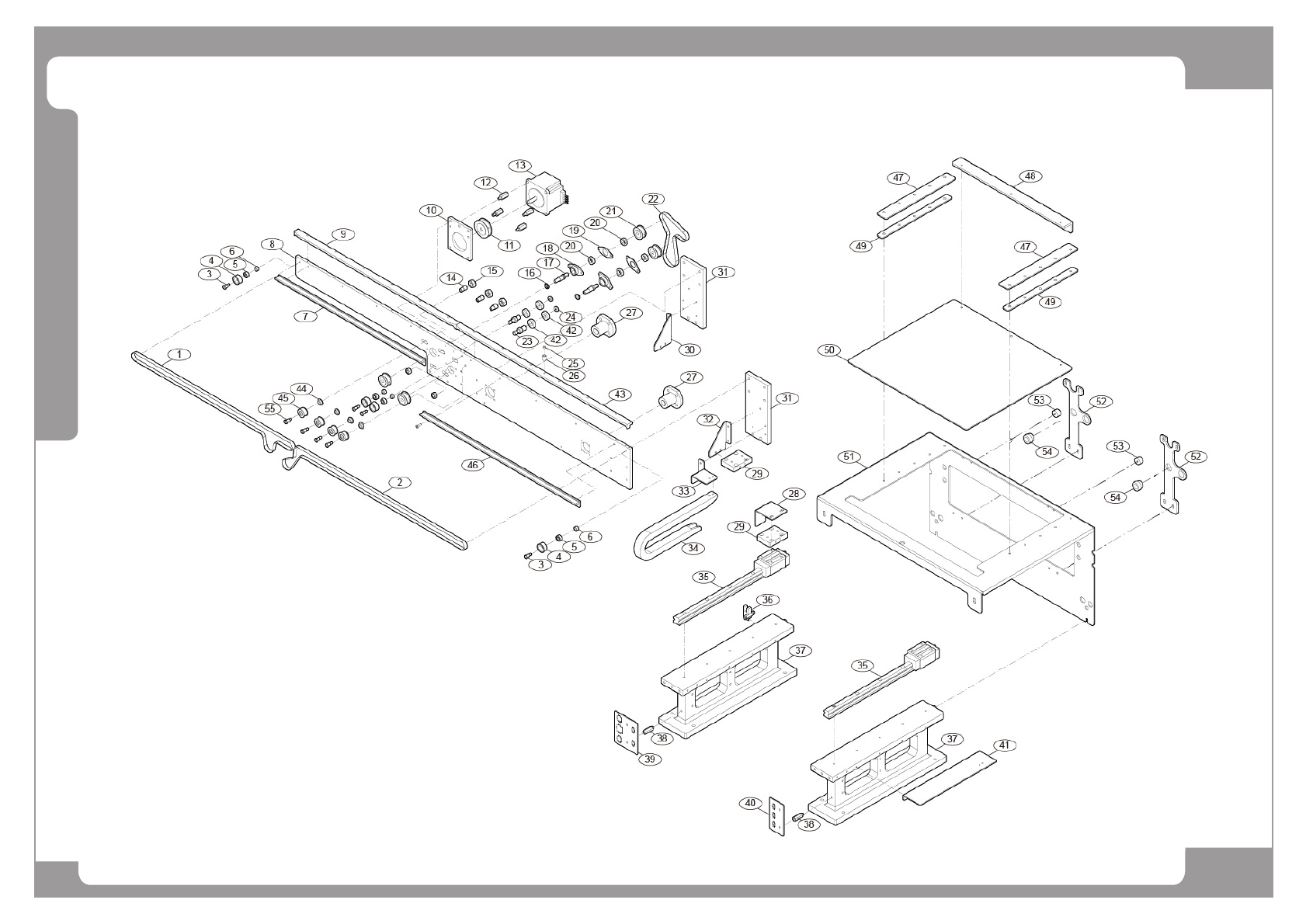

Conveyor Bypass SP1D2 (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 FC29-001004A HOUSINGBEARING HOUSING COVER 2
29 MC19-000295A PULLEYTIMING PULLEY 4
30 MC05-000114 TIMING_BELT_2GT_320 1
31 FC30-000761A PLATEBYPASS_CONV_GUIDE_FIX1 2
32 FC30-000768A PLATEBYPASS_FIX_FRAME 1
33 MC05-000115 TIMING_BELT_3GT_705 1
34 J71531282A BELT_MOTOR_PULLEY J71531282A 1
35 J71531252A WORK_FLAT_BELT_UNDER_B J71531252A 1
36 FC30-000763A PLATEMOTOR_PLATE_1 1
37 EP08-900073 STEP_MOTOR 2S56Q01842SR2 1
38 FC30-000762A PLATEBELT_UNDER_PLATE 1
39 FC09-001456A BRACKETSENSOR BKT 1
40 J70531672A MOTOR_JIG_BAR J70531672A 12
41 MC19-000298A PULLEYPULLEY 3
42 FC18-900920 LOCK_NUT RN8 2
43 FC30-000766A PLATESCREW_PLATE 2
44 MC03-900023 BALL BEARING 2
45 J70531177A BUSHING J70531177A 2
46 J70531665A BYPASS_LEAD_SCREW J70531665A 2
47 MC19-000300A SHAFTPULLEY_SHAFT_1 2
48 FC18-000442A SPACERTENSION SPACER 2
49 EP08-900126 SERVO_MOTOR_PB PBM423DXC24 1
50 J70653790A IDLER_SPACER_TENSTION J70653790A 4
51 J7253007A IDLER 2 4
52 MC05-900145 TIMING_BELT 10282GT7 1
53 MC05-000113 TIMING_BELT_2GT_900 1
54 MC03-900034 BEARING_MR148ZZ 4
Page
SAMSUNG TECHWIN
93
SP1
Conveyor Bypass SP1D2 (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
55 M3*15 (BL/Zn) SOCKET HEAD CAP SCREW 6
56 M3*10 (BL/Zn) SOCKET HEAD CAP SCREW 18
57 M3*8 (BL/Zn) SOCKET HEAD CAP SCREW 28
58 FC09-003125A BRACKETLONG_STOP_CYLINDER_BKT 1
59 J70531716A BYPASS_WIDTH_PULLEY J70531716A 1
60 J70531671A BEARING_FIX_JIG 1
Page
SAMSUNG TECHWIN
94
SP1
Conveyor Bypass SP1D2 (2/2)
