Page SAMSUNG TECHWIN 56 SP1 Lower Frame Ass’y (2/2) 2 9 10 3 16 16 13 0 14 6 2 1 7 12 8 5 4 11 14 0 A B C 21 20 21 19 D 17 18 18 26 23 22 0 15 SP1 SP1S 24 26 25
Page
SAMSUNG TECHWIN
55
SP1
Lower Frame Ass’y (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J7051010D HOUSING FOOT 1
2 J2100018 NUT FOOT 1
3 J70511014A BOLT FOOT 1
4 J7051008C BASE FOOT 1
5 J7351001A CUSHION FOOT 1
6 FC18-901373 CRING(SHAFT) 1
7 HP06-900200 FITTING SQL1204S(WHITE) 1
8 HP06-900202 FITTING SQL1003S(WHITE) 1
9 HP06-900203 FITTING SQL0602S(WHITE) 1
10 J71651397B MANIFOLDER 1
11 J6711073A KQ2N0809 1 ONLY FOR SP1S
12 HP06-000241 FITTINGKQ2N0810;NIPPLE,one touch 1 ONLY FOR SP1S
13 HP06-000270 FITTINGKQ2TY1012;+fitting,plug 1 ONLY FOR SP1S
Page
SAMSUNG TECHWIN
56
SP1

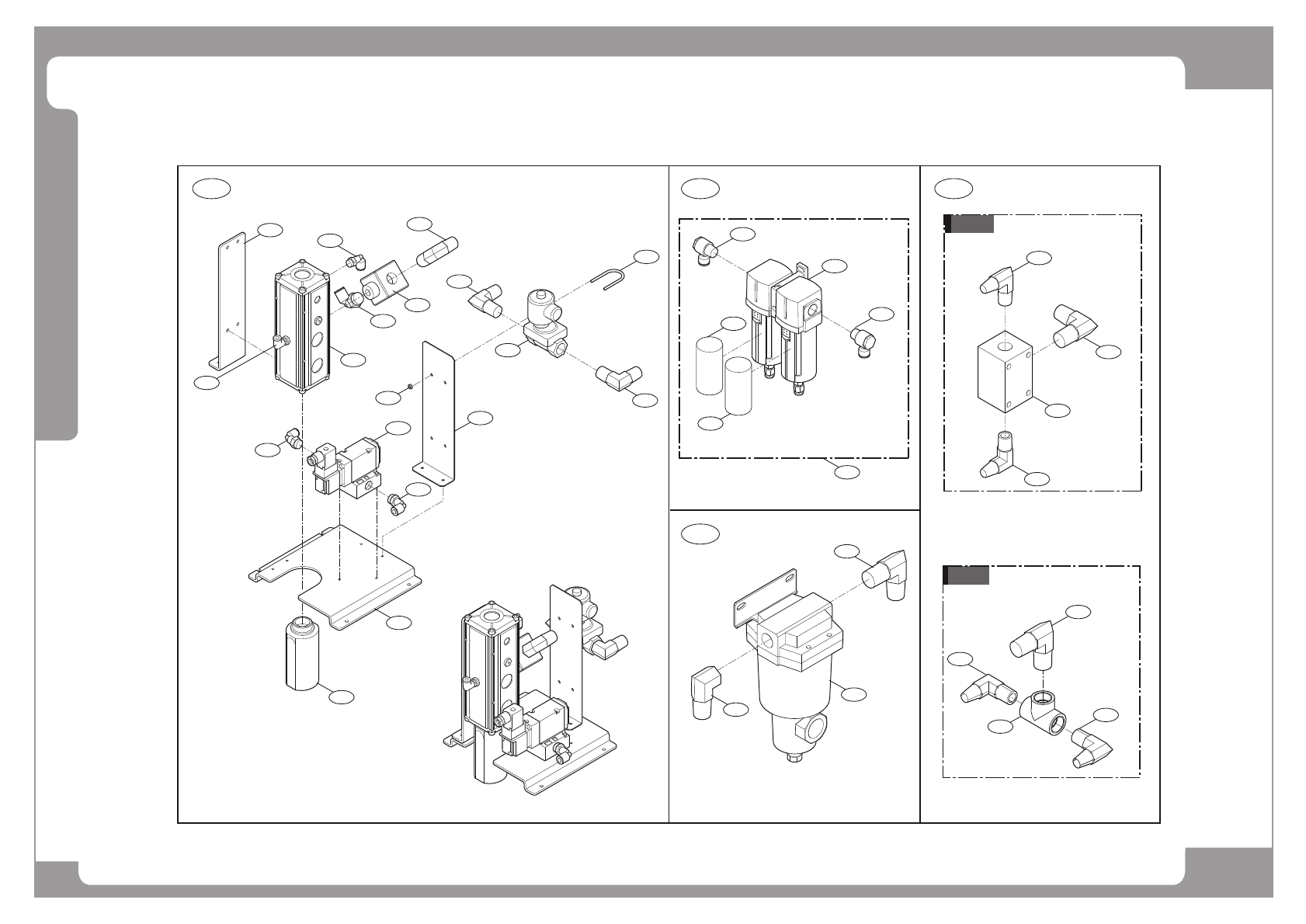

Lower Frame Ass’y (2/2)
2
9
10
3
16
16
13
0
14
6
2
1
7
12
8
5
4
11
14
0
A B
C
21
20
21
19
D
17
18
18
26
23
22
0
15
SP1
SP1S
24
26
25
Page
SAMSUNG TECHWIN
57
SP1
Lower Frame Ass’y (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70661423A VACUUM_BASE J70661423A 1
2 HP06-900083 FITTING_D18_SMP300 L 1/2" D18 2
3 FC18-900004 U_BOLT 1
4 HP14-900112 SOL_VV_TV2 1
5 HP11-000198 VACUUM_PUMP_PM303X4A-34 1 HP11-900097 /HP11-900108
6 J70661370A VACCUM_SUPPORT_BKT J70661370A 1
7SILENSER 1
8 J71651398B VACBRANCHBLK 1
9 HP06-900083 FITTING_D18_SMP300 L 1/2" D18 1
10 HP06-900204 FITTING SQL1002S(WHITE) 1
11 HP06-900188 AIR_FITTING SQL0601SW 1
12 HP06-900200 FITTING SQL1204S(WHITE) 1
13 HP14-900045 AIRVALVE VP5445D03A 1
14 HP06-900202 FITTING SQL1003S(WHITE) 2
15 HP04-900027 MIST_SEPARATOR_ASSY 1
16 ELBOW_FITTING 2
17 HP04-900028 MIST_SEPARATE_AM350 1
18 HP06-900083 FITTING_D18_SMP300 L 1/2" D18 2
19 J71651850A CLN_BRANCH_BLK J71651850A 1
20 J6711220A FITTING_ID12 2 ONLY FOR SP1S
21 HP06-900218 FITTING_ID12_1BY2 PT1/2ID12 2
22 J67181003A ELEMENTAIR 1
23 HP04-900024 ELEMENT_SEPARATOR PFH40000005A6083 1
24 J6711019A FITTING_D18_SMP300 1 ONLY FOR SP1S
25 HP06-000268 FITTING3041/2;TFITTING,UNF SCREW,1/2" 1 ONLY FOR SP1S
26 HP06-900218 FITTING_ID12_1BY2 ONLY FOR SP1S
