- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 40 0-84841 EFARRANGECB L1BLACKETASM 1 2 #01 400-84833 EFARRANG ECBL1ASM 1 3 HA -0052400-00 CIRCUITPROTECTO R 1 4 40 0-92655 EFCPOUTPUTCAB LEASM 1 …

- -

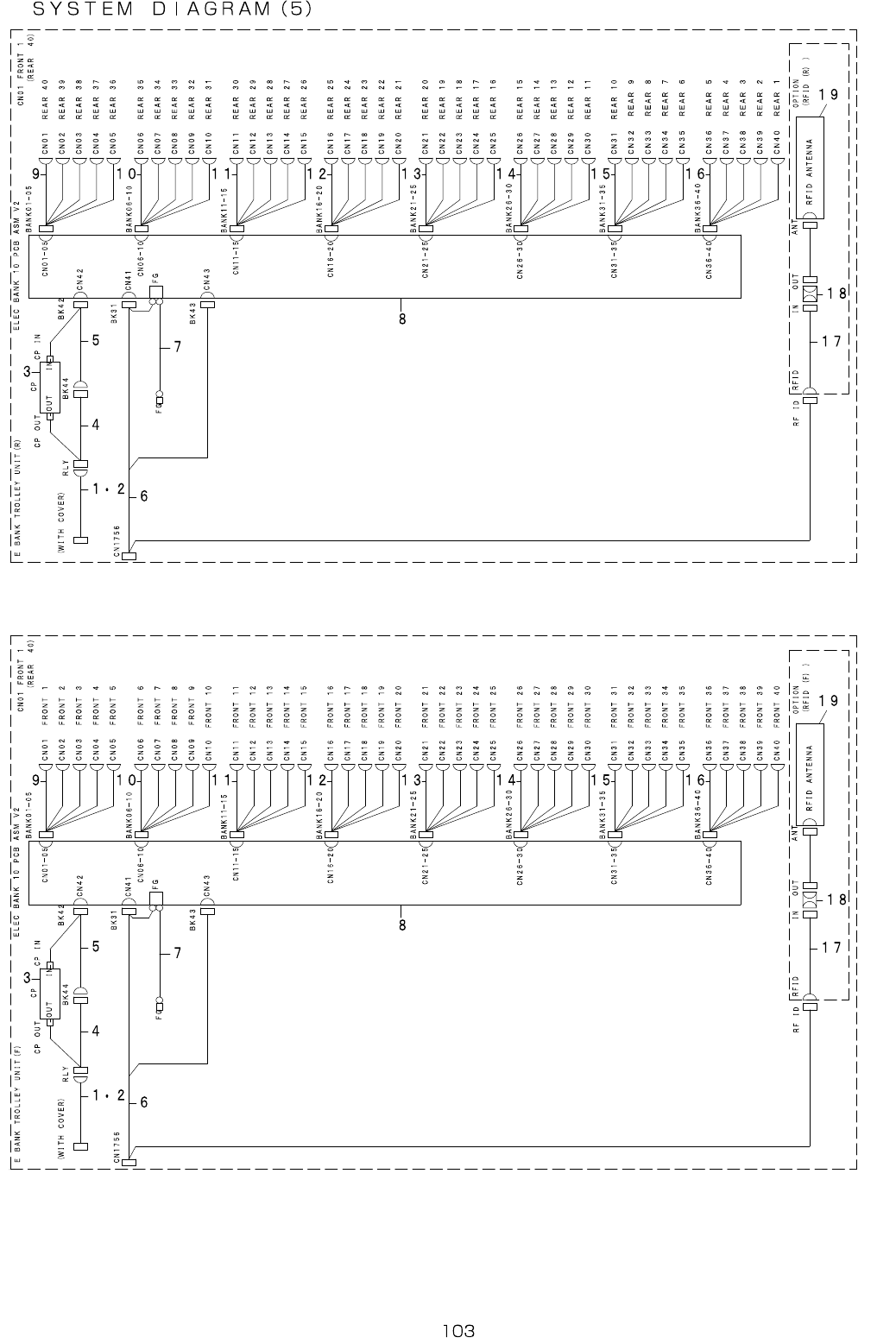

52.SYSTEMDIAGRAM(5)

- -

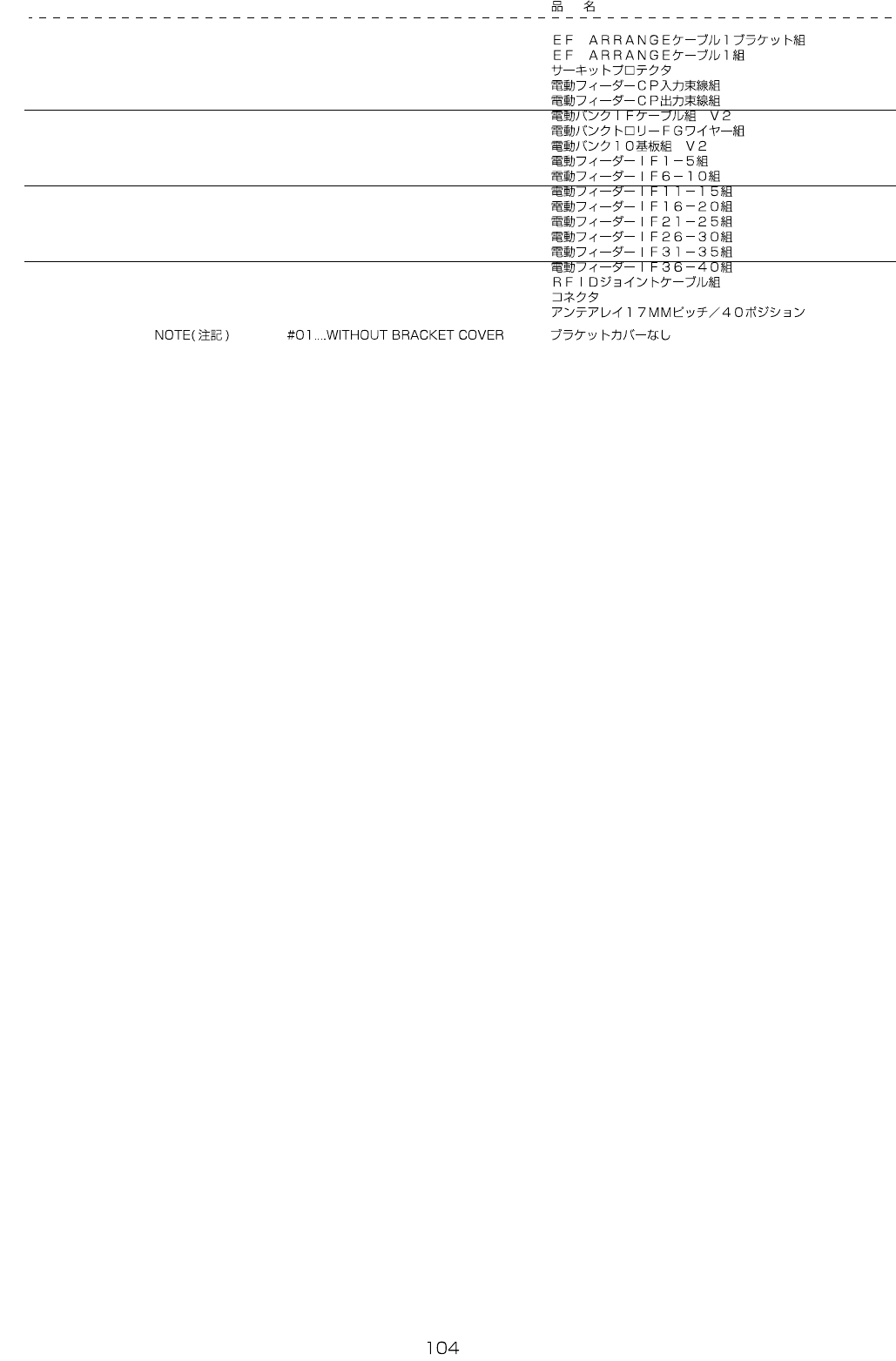

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-84841 EFARRANGECBL1BLACKETASM 1

#01

400-84833 EFARRANGECBL1ASM 1

3 HA-0052400-00 CIRCUITPROTECTOR 1

4 400-92655 EFCPOUTPUTCABLEASM 1

5 400-92656 EFCPINPUTCABLEASM 1

6 401-87554 ELECBANKIFCABLEASMV2 1

7 400-84840 ELECBANKTOROLYFGWIREASM 1

8 401-87551 ELECBANK10PCBASMV2 1

9 400-92647 EFIFCBL1-5ASM 1

10 400-92648 EFIFCBL6-10ASM 1

11 400-92649 EFIFCBL11-15ASM 1

12 400-92650 EFIFCBL16-20ASM 1

13 400-92651 EFIFCBL21-25ASM 1

14 400-92652 EFIFCBL26-30ASM 1

15 400-92653 EFIFCBL31-35ASM 1

16 400-92654 EFIFCBL36-40ASM 1

17 400-79659 RFIDJOINTCABLEASM 1

18 HK-0651200-60 CONNECTOR 1

19 400-90031 ANTENNAARRAY17MMPITCH/40POSITION 1

Notes
