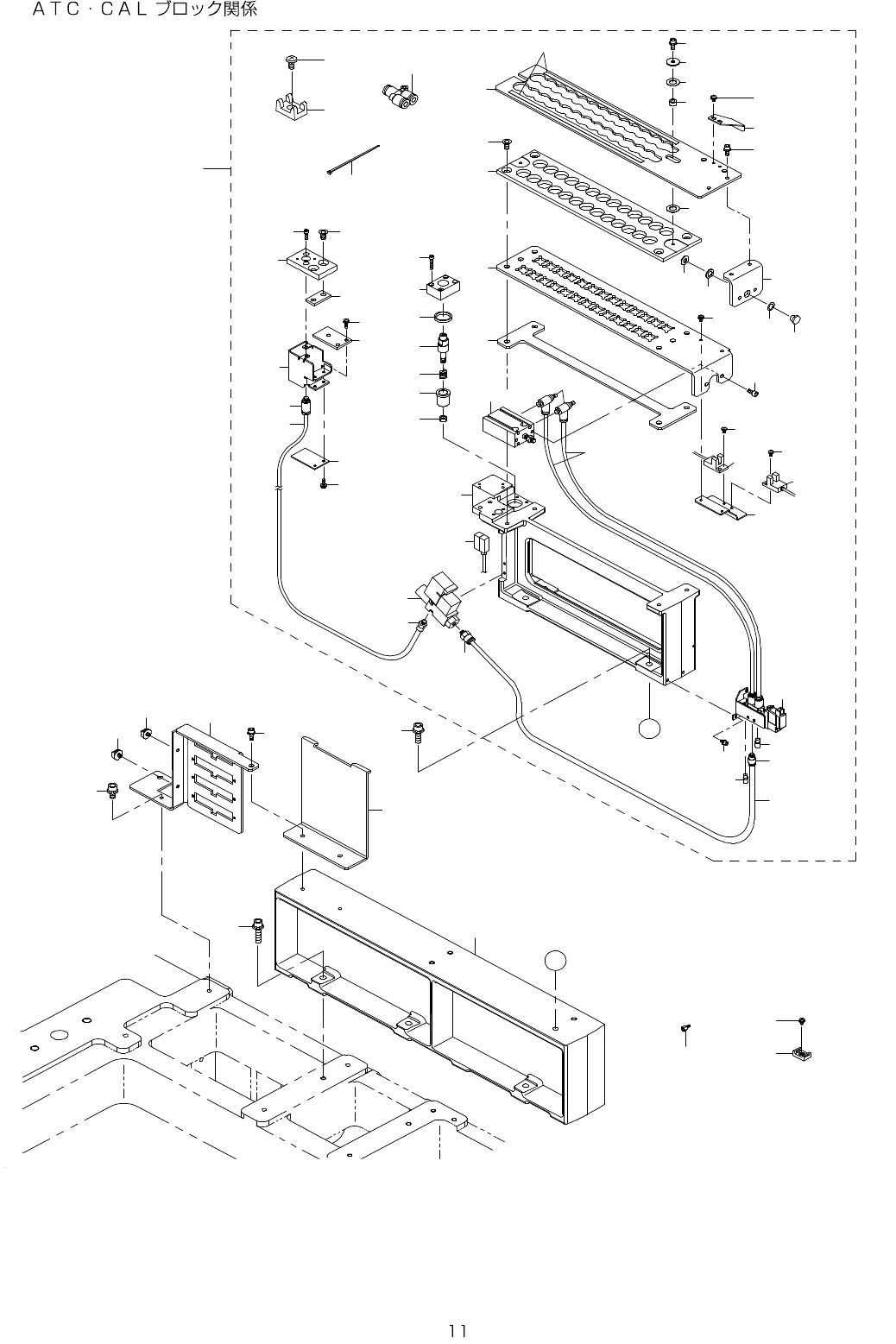

6. ATC & CAL BLOCK COMPONENTS
7
A
4 5
3 3
3 2
3 1
3 0
5 3
5 6
5 5
5 2
2 3
2 4
4 8
4 2
4 1
4 0
2 6
2 5
2 2
2 2
2 0
4 4
1 8
1 9
6 2
6 1
5 9
5 7
5 4
5 0
4 9
4 7
3 4
3 6
1 1
5 8
6 0
5 4
5 1
2 7
2 8
3 9
3 8
3 7
4 3
3 5
6 6
6 3
6 5
6 4
2 0
A
6
5
2 9
6 5
6 7
6 8
6 9
7 0
4 6
2 1
8
1 6
1 4
1 5
1 3
1 7
9
1 0
1 2
1
2
3
4
4
- -

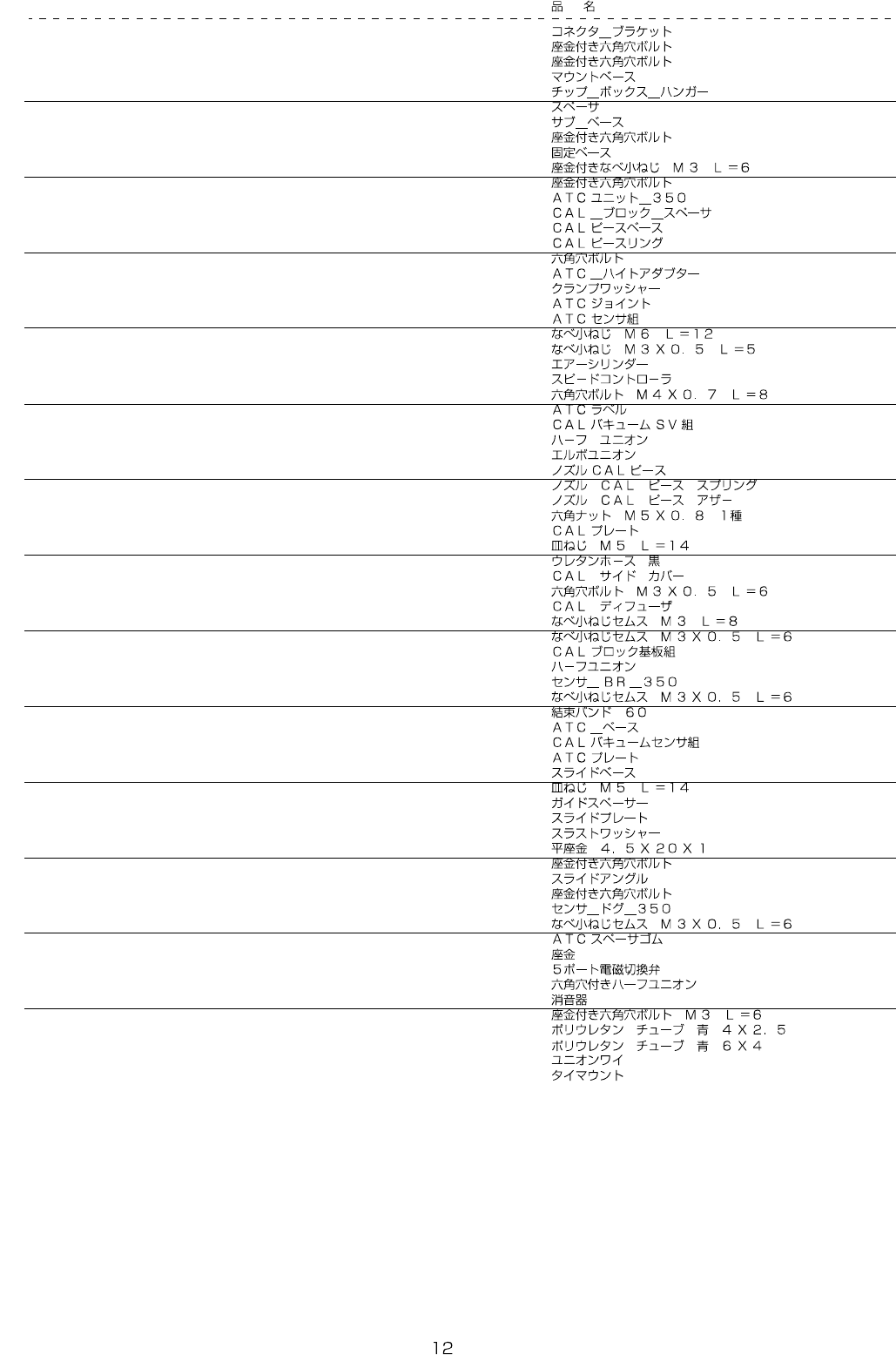

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61608 CONNECTOR_BRACKET 1
2 SL-6041292-TN SCREW 2
3 SL-6061292-TN SCREW 1
4 HX-0070600-0A MOUNT BASE 2
5 401-61609 CHIP_BOX_HANGER 1
6 HX-0035400-0S SPACER 3
7 401-61577 SUB_BASE 1
8 SL-6062592-TN SCREW 6
9 HX-0029400-00 FIXED BASE 1
10 SL-4030681-SC SCREW M3 L=6 1
11 SL-6062092-TN SCREW M6 L=20 4
12 401-61786 ATC_UNIT_350 1
13 401-61590 CAL_BLOCK_SPACER (1)
14 400-45995 CAL PIECE BASE (1)
15 400-45996 CAL PIECE RING (1)
16 SM-6031602-TN SCREW M3 L=16 (4)
17 401-62759 ATC_HEIGHT_ADAPTER (1)
18 GLA-02335000 CLAMP WASHER (1)
19 E3528-729-000 ATC JOINT (1)
20 401-61248 ATC SENSOR ASM (2)
21 SM-4061201-SC SCREW M6 L=12 (1)
22 SM-4030501-SC SCREW M3X0.5 L=5 (4)
23 400-42709 AIR CYLINDER (1)
24 PC-0105080-00 SPEED CONTROLLER (2)
25 SM-6040802-TN SCREW (2)
26 400-77293 ATC LABEL (1)
27 400-02125 CAL VCUM SV ASM (1)
28 PJ-3010605-03 HALF UNION (1)
29 PJ-3040405-04 ELBOW UNION (1)
30 400-45979 NOZZLE CAL PIECE (1)
31 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
32 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
33 NM-6050001-SC NUT M5 (1)
34 400-76118 CAL PLATE (1)
35 SM-1051452-TN PLATE SCREW (2)
36 BT-0400251-EB URETHANE HOSE, BLACK (0.2)
37 L202E-521-000 CAL SIDE COVER (1)
38 SM-6030602-TN HEX SCREW M3 X 6 (2)
39 L202E-621-000 CAL DIFFUSER (1)
40 SL-4030891-SC SCREW M3X8 (2)
41 SL-4030691-SC SCREW M3X6 (2)
42 400-07376 CALBLOCK PCB ASM (1)
43 PJ-3010405-05 HALF UNION (1)
44 401-61663 SENSOR_BR_350 (1)
45 SL-4030691-SC SCREW M3X6 (2)
46 EA-9500B00-00 CABLE BAND (2)
47 401-61581 ATC_BASE (1)
48 400-02126 CAL VACUUM SENSOR ASSY (1)
49 400-77290 ATC PLATE (1)
50 400-77291 SLIDE BASE (1)
51 SM-1051452-TN PLATE SCREW (4)
52 400-45975 GUIDE SPACER (2)
53 400-77292 SLIDE PLATE (1)
54 E3404-700-000 THRUST WASHER (4)
55 WP-0451016-SP WASHER 4.5X20X1 (2)
56 SL-6041042-TN BOLT (2)
57 400-45977 SLIDER ANGLE (1)
58 SL-6041092-TN SCREW (2)
59 401-61664 SENSOR_DOG_350 (1)
60 SL-4030691-SC SCREW M3X6 (2)
61 400-01286 ATC SPACER RUBBER (1)
62 B2107-816-000 WASHER (1)
63 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
64 PJ-3030605-01 HALF UNION (1)
65 PX-0505010-00 SILENCER (2)
66 SL-6030692-TN SCREW M3 L=6 (2)
67 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.21)
68 BT-0600400-EC URETHANE TUBE BLUE 6X4 (0.36)
69 PJ-3080600-03 Y UNION (1)
70 HX-0055700-00 TIE MOUNT (1)
- -
