- - 17 . HEAD COM PON EN T S (1) 8 5 8 6 8 4 9 1 0 1 9 7 8 4 1 0 7 5 7 3 7 4 3 5 1 4 9 2 9 3 7 1 7 1 7 1 1 0 0 1 8 9 0 8 8 8 8 9 0 B B 9 9 9 8 9 6 9 5 9 5 9 4 9 1 9 0 8 8 8 9 8 7 6 1 6 0 5 4 5 3 5 0 4 9 4 8 4 5 7 1 7 1…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-06026 Y MOTOR FRAME 2
2 SL-6062092-TN SCREW M6 L=20 8
3 401-46348 Y AXIS SERVO MOTOR 2
4 SM-6082002-TN SCREW M8 L=20 8
5 400-93855 FIXED SUPPORT UNIT 2
6 SM-6052002-TN BOLT 4
7 401-61654 COUPLING_Y_350 2
8 401-06040 Y BALL SCREW M 2
9 401-06024 Y BS CONNECTOR 2
10 401-46918 Y_BS_FRAME 2
11 SL-6062092-TN SCREW M6 L=20 4
12 400-93864 O_RING_X 2
13 SL-6063092-TN SCREW M6 L=30 8
14 SM-6061602-TN SCREW M6 L=16 8
15 401-46923 FC_SUPPORT_X 1
16 400-98052 FC_RUBBER_Y 3
17 SM-3061052-TN SCREW M6 L=10 2
18 401-10219 FC SUPPORT Y V2 2
19 400-98052 FC RUBBER Y 6
20 SM-6061202-TN BOLT 2
21 401-46926 X_CB_SUPPORT 1
22 401-10451 X CABLE BEAR 1
23 SM-3040652-TN SCREW M4 L=6 1
24 SM-6041002-TN BOLT 8
25 401-46927 Y_CB_SUPPORT 1
26 400-60210 Y CABLE BEAR(E) 1
27 SM-3051052-TN SCREW M5 L=10 4
28 400-46005 CB BRACKET L 1
29 401-36746 Y_ADJUST_PLATE 2
30 SB-1150004-00 RADIAL BEARING 2
31 L132E-421-000 CB BRACKET PIN X 2
32 SL-6052092-TN SCREW 8
33 RC-0150001-KP RETAINING RING 13.8 2
34 HX-0029400-00 FIXED BASE 2
35 SL-4030691-SC SCREW M3 L=6 2
36 SM-6061202-TN BOLT 2
37 SL-3061232-TN SCREW 4
38 400-46006 CB BRACKET R 1
39 CM-3003000-03 HIGH TEMPARATURE CAUTION LABEL 2 (31.5) 2
40 401-61585 Y_CB_BR_350 1
41 SL-6040892-TN BOLT 2
42 SL-6051092-TN BOLT 2
- -
17. HEAD COMPONENTS (1)
8 5
8 6
8 4
9
1 0
1
9 7
8 4
1 0
7 5
7 3 7 4
3 5
1 4
9 2
9 3
7 1
7 1
7 1
1 0 0
1 8
9 0
8 8
8 8
9 0
B
B
9 9
9 8
9 6
9 5
9 5
9 4
9 1
9 0
8 8
8 9
8 7
6 1
6 0
5 4
5 3
5 0
4 9
4 8
4 5
7 1
7 1
7 1
A
2 1
1 1
5 5
4 1
4 0
1 9
3 4
6 2
3 3
2 4
3 4
2 0
6 2
3 3
3 2
1 7
3 1
2 3
6 5
6 4
6 4
6 4
6 3
6 3
5 9
5 8
5 7
5 6
4 7
4 3
4 2
3 9
3 8
3 8
2 9
2 8
2 7
2 6
2 6
2 5
2 2
1 5
1 3
6 6 6 9
6
3 0
1 2 8 3
6 4
5 4
5 2
5 1
4 6
4 4
3 7
1 7
1 6
1 6
7 0
3
5
A
4
9
2
C
C
7 2
7 6
7 6
8 2
7 2
3 6
8 1
8 0
D
D
7 8
7 7
7 7
7 8
7 9
8
7
- -

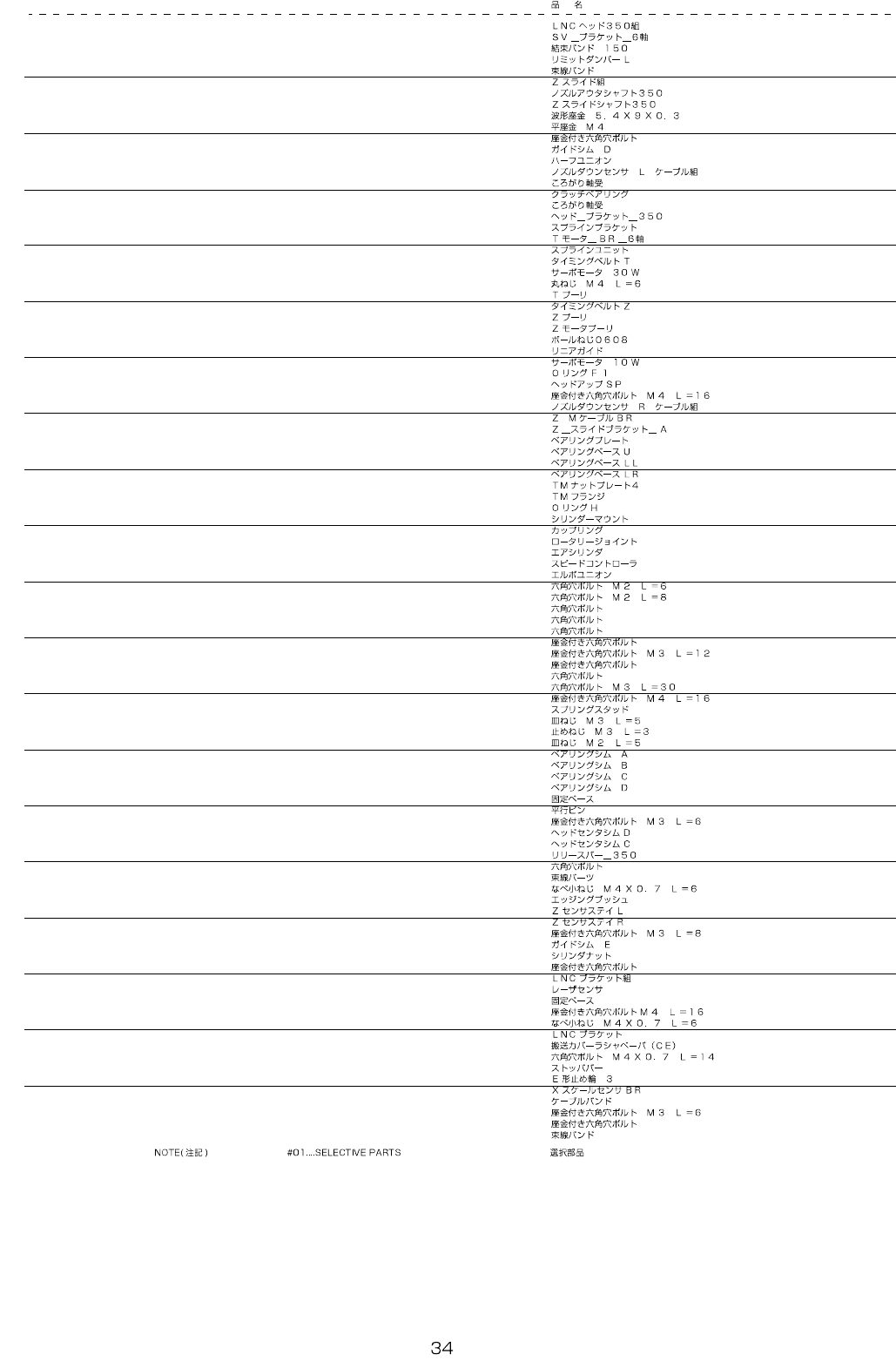

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61829 LNC_HEAD_350_ASSY 1
2 401-61658 SV_BRACKET_6AXIS (1)
3 EA-9500B02-00 CABLE BAND 150 ( 4)
4 E3005-729-000 LIMIT DAMPER L (2)
5 EA-9500B01-00 CABLE BAND (5)
6 400-53293 Z SLIDE ASM (6)
7 401-61583 NOZZLE_OUTER_SHAFT_350 (1)
8 401-61584 Z_SLIDE_SHAFT_350 (1)
9 WZ-0541510-KP WAVED WASHER 5.4X9.0X0.3 (2)
10 WP-0430801-SC WASHER M4 (2)
11 SL-6040892-TN BOLT (1)
12 E3028-729-000 GUIDE SHIM D (3)
13 PJ-2105041-00 HALF UNION (6)
14 400-92495 NOZZLE DOWN SENS L ASM (1)
15 SB-1060020-00 BEARING (6)
16 SB-1060004-00 CLUTCH BEARING (12)
17 SB-1080016-00 BEARING (12)
18 401-61576 HEAD_BRACKET_350 ( 1)
19 400-46052 SPLINE BRACKE T (1)
20 401-61657 T_MOTOR_BR_6AXIS (1)
21 400-63959 SPLINE UNIT (6)
22 400-46521 TIMING BELT T (6)
23 401-49143 SERVO MOTOR 30W (6)
24 SM-3040652-TN SCREW M4 L=6 (2)
25 400-46516 T PULLEY (6)
26 400-46522 TIMING BELT Z (6)
27 400-01123 Z PULLEY (6)
28 400-01124 Z MOTOR PULLEY (6)
29 401-61655 BALL SCREW 0608 (6)
30 400-44585 LINEAR GUIDE (6)
31 401-46452 SERVO MOTOR 10W (6)
32 400-46058 O RING F1 ( 6)
33 400-58386 HEAD UP SP (2)
34 SL-6041692-TN SCREW (2)
35 401-13701 NOZZLE DOWN SENS R ASM (1)
36 400-77262 Z M CABLE BR (1)
37 401-61607 Z_SLIDE_BRACKET_A (6)
38 400-46056 BEARING PLATE (12)
39 400-46048 BEARING BASE U (6)
40 400-46049 BEARING BASE LL (3)
41 400-46050 BEARING BASE LR (3)
42 400-72868 TM NUT PLATE 4 (6)
43 400-71805 TM FRANGE (6)
44 400-46060 O RING H ( 6)
45 400-46070 CYLINDER MOUNT (2)
46 400-46515 COUPRING (6)
47 400-46525 ROTARY JOINT (6)
48 400-46524 AIR CYLINDER (2)
49 PC-0105080-00 SPEED CONTROLLER (2)
50 PJ-3040405-04 ELBOW UNION (2)
51 SM-6020602-TN SCREW M2 L=6 (48)
52 SM-6020802-TN SCREW M2 L=8 (54)
53 SM-6051602-TN BOLT (8)
54 SM-6041002-TN BOLT (4)
55 SM-6030802-TN SCREW (12)
56 SM-6030842-TN SCREW M3L=8 (24)
57 SL-6031292-TN SCREW M3 L=12 (1 2)
58 SL-6031692-TN SCREW (18)
59 SM-6031602-TN SCREW M3 L=16 (2 4)
60 SM-6033002-TN SCREW M3 L=30 ( 4)
61 SL-6041692-TN SCREW M4 L=16 ( 4)
62 400-56921 SPRING STUD (2)
63 SM-1030552-TN PLATE SCREW M3 L=5 (54)
64 SM-8030312-TP SCREW M3 L=3 (60)
65 SM-1020501-SC SCREW (12)
66
#01
E3071-729-000 BEARING SHIM A (6)
67
#01
E3072-729-000 BEARING SHIM B (6)
68
#01
E3073-729-000 BEARING SHIM C (6)
69
#01
E3074-729-000 BEARING SHIM D (6)
70 HX-0029400-00 FIXED BASE ( 7)
71 PH-0400122-C0 PIN (6)
72 SL-6030692-TN SCREW M3 L=6 (1)
73 E3047-729-000 HAED CENTER SHIM D (3)
74 E3021-721-000 HAED CENTER SHIM C (3)
75 401-61650 RELEASE_BAR_350 (1)
76 SM-6041002-TN BOLT (4)
77 HX-0034400-00 HARNESS PARTS (1)
78 SM-4040601-SC SCREW M4X0.7 L=6 (1)
79 HX-0009600-0A GROM MET (1)
80 400-77260 Z SENSOR STAY L (1)
81 400-77261 Z SENSOR STAY R (1)
82 SL-6030892-TN SCREW M3 L=8 (2)
83 E3029-729-000 GUIDE SHIM E (3)
84 400-54879 CYLINDER NUT (2)
85 SL-6052092-TN SCREW 6
86 400-49066 LNC BRACKET ASM 1
87 400-45547 LNC60 (1)
88 HX-0029400-00 FIXED BASE ( 3)
89 SL-6041692-TN SCREW M4 L=16 ( 1)
90 SM-4040601-SC SCREW M4X0.7 L=6 (3)
91 400-46069 LNC BRACKET (1)
92 E1143-721-000 WOOLEN CLOTH PAPER (1)
93 SM-6041402-TN SCREW M4X0.7 L=14 (2)
94 400-46527 STOPPER BAR (1)
95 RE-0300000-K0 E-RING 3 (2)
96 400-46547 X SCALE SENSOR BR (1)
97 400-46548 CABLE BAND (1)
98 SL-6030692-TN BOLT (2)
99 SL-6040892-TN BOLT (2)
100 EA-9500B01-00 CABLE BAND (3)
