- - 21 . PWB CO NVEY OR C OM PONE NT S ( 1) 1 7 8 6 9 7 1 7 2 7 8 7 8 G B C D B C 7 6 7 6 5 6 6 4 3 7 0 7 4 7 3 2 9 1 1 1 1 9 1 1 9 9 1 1 1 0 7 8 1 0 E E 8 D 5 8 1 1 1 1 6 8 6 7 7 5 F 1 3 1 4 1 5 1 4 1 5 I A 1 6 1 7 1 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61830 OCC_LEFT_350_ASM 1
2 SM-3030552-TN SCREW M3 L=5 (2)
3 SM-1030501-SC SCREW M3 L=5 (1)
4 401-61831 OCC_CAMERA_BR_L_350_ASM (1)
5 HX-0029400-00 FIXED BASE (2)
6 PH-0400122-C0 PIN (2)
7 400-48028 OCC CAMERA (1)
8 SM-6020302-UZ SCREW M2 L=3 (2)
9 400-71590 CCD BR (1)
10 SM-4040801-SC SCREW M4X0.7 L=8 (2)
11 SL-6041692-TN SCREW M4 L=16 (2)
12 400-71311 OCC LENS BR L (1)
13 SM-6030602-TN SCREW M3X6 (2)
14 401-44863 LENS_MJ076_96TL (1)
15 400-71591 OCC LIGHT ASM (1)
16 118-04606 RUBBER PLUG (10)
17 400-43895 LIGHT DIFFUSER (1)
18 400-14037 BEAM SPRITTER (1)
19 400-13943 PRISM COVER (1)
20 SL-6030692-TN SCREW M3 L=6 (3)
21 400-01225 HOLD RUBBER (1)
22 400-15847 OCC COLLAR (1)
23 E1038-871-000 PLATEN LOCK CAM SCREW (2)
24 400-13949 LIGHT FILTER U SUPPORT (1)
25 L154E-821-000 LIGHT BRACKET (1)
26 400-15962 OCC LABEL (1)
27 E1143-721-000 WOOLEN CLOTH PAPER (1)
28 SL-6030892-TN SCREW M3 L=8 (4)
29 400-14043 PRISM BASE (1)
30 400-47508 OCC A LIGHT PCB ASM (1)
31 400-14042 PRISM (1)
32 SL-6030892-TN SCREW M3 L=8 (1)
33 SM-1020301-SN SCREW (4)
34 400-43896 LENS FILTER (1)
35 400-13948 GUIDE PLATE (1)
36 400-13944 ROTARY BASE (1)
37 SM-1030501-SC SCREW M3 L=5 (3)
38 400-47512 OCC C LIGHT PCB ASM (1)
39 SL-4030691-SC SCREW M3 L=6 (2)
40 400-44028 MIRROR BOX (1)
41 SL-6030692-TN SCREW M3 L=6 (3)
42 401-61644 CAMERA_BRACKET_350 (1)
43 SM-4040801-SC SCREW M4X0.7 L=8 4
44
#01
HX-0035400-0D BASE PARTS 4
45
#01
400-14043 PRISM BASE 1
46
#01
HX-0033500-0G SPACER 4
47
#01
400-32433 LOW HEAD SCREW M3 10 4
48
#01
400-47508 OCC A LIGHT PCB ASM 1
49 SL-6052092-TN SCREW 4
50 SL-6041292-TN SCREW 2
51 HX-0034400-00 HARNESS PARTS 4
- -

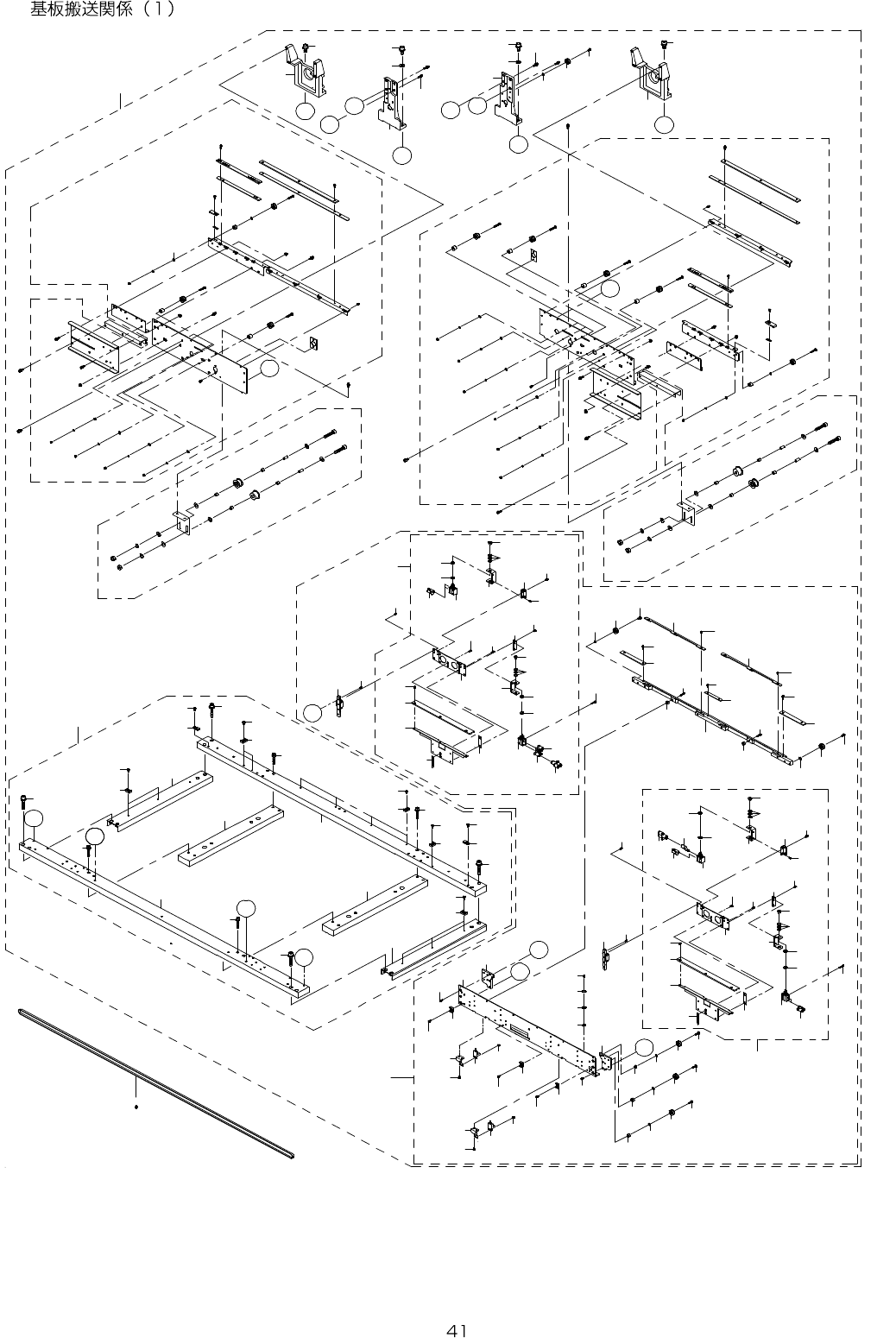

21. PWB CONVEYOR COMPONENTS (1)
1
7
8
6 9
7 1
7 2
7 8
7 8
G
B
C
D
B
C
7 6
7 6
5
6
6
4
3
7 0
7 4
7 3
2
9
1 1
1 1
9
1 1
9
9
1 1
1 0
7
8
1 0
E
E
8
D
5
8
1 1
1 1
6 8
6 7
7 5
F
1 3
1 4
1 5
1 4
1 5
I
A
1 6
1 7
1 8
1 7
1 8
1 9
2 0
2 0
1 9
2 2
2 1
2 4
2 3
2 5
2 7
2 8
2 9
2 8
2 7
2 9
3 0
2 7
3 1
2 8
3 2
5 4
3 5
3 6
3 7
3 8
3 9
4 0
4 1
4 2
4 1
4 2
4 4
4 3
4 8
4 9
5 0
5 1
4 6
4 5
5 2
5 3
3 3
4 8
4 9
5 0
5 1
H
H
4 5
4 6
4 6
4 7
5 5
5 6
5 7
5 8
5 9
6 0
6 1
6 2
6 3
6 4
6 0
6 1
6 3
6 4
6 3
6 4
5 2
3 3
3 9
3 6
3 5
3 2
5 0
5 5
4 6
4 5
5 1
3 8
4 9
4 8
5 3
4 5
4 6
5 1
5 0
4 9
4 8
4 3
4 4
4 2
4 1
4 2
4 1
4 0
3 7
5 4
4 6
4 7
1 2
3 4
3 4
3 0
2 8
3 1
2 7
3 0
2 8
3 1
2 7
I
G
7 7
7 7
7
7
4 3
4 3
7 9 8 0
9
1 1
6 5
6 2
6 6
2 6
F
A
- -

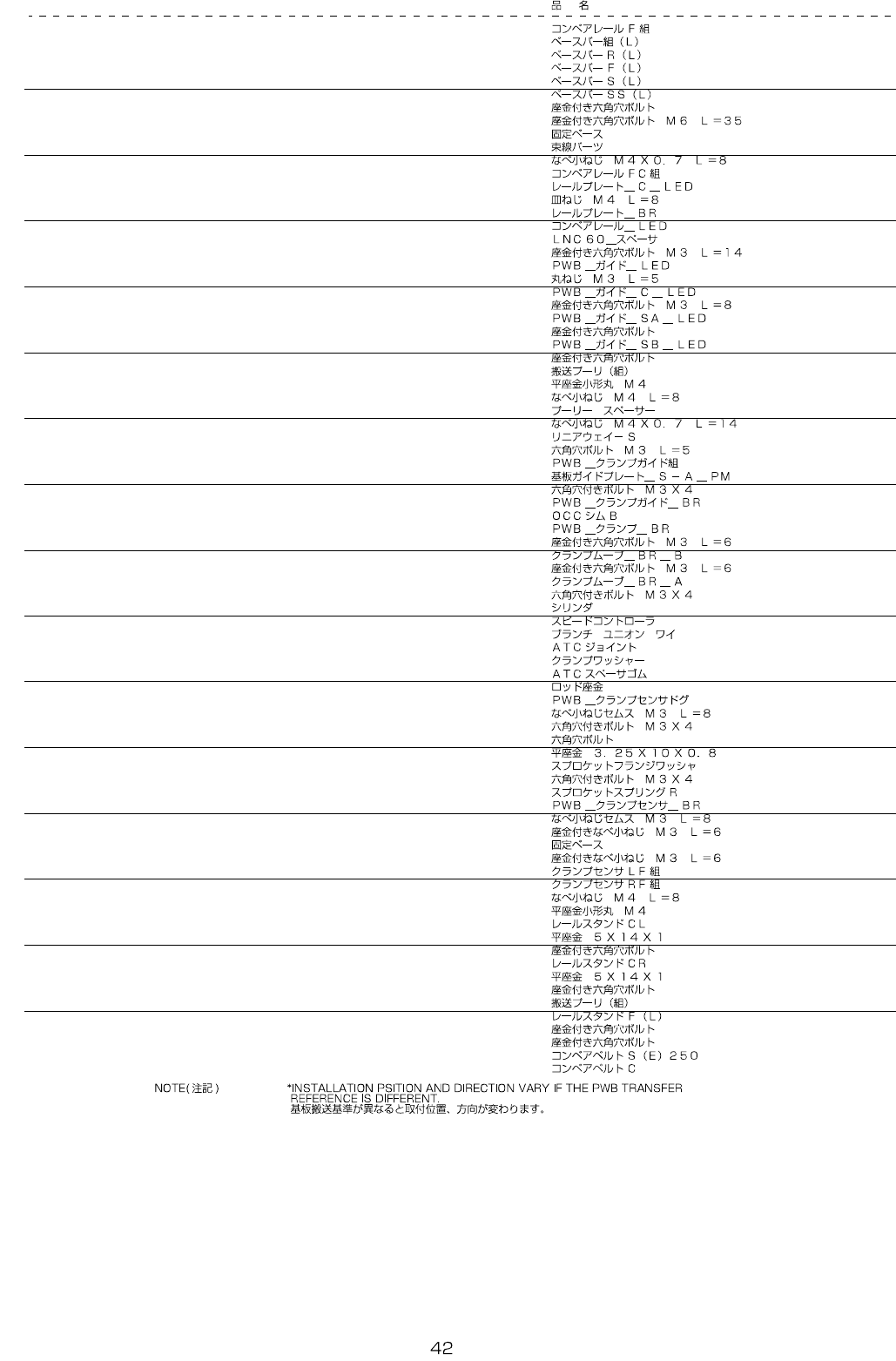

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-36087 CONVEYOR RAIL F ASM 1
2 400-00994 BASE BAR ASM(L) (1)
3 400-01038 BASE BAR R(L) (1)
4 400-01039 BASE BAR F(L) (1)
5 400-70087 BASE BAR S(L) (2)
6 400-00996 BASE BAR SS(L) (2)
7 SL-6084092-TN BOLT (8)
8 SL-6063592-TN SCREW (8)
9 HX-0029400-00 FIXED BASE (12)
10 HX-0034400-00 HARNESS PARTS (2)
11 SM-4040801-SC SCREW M4X0.7 L=8 (15)
12 401-36088 CONVEYOR RAIL FC ASM (1)
13 401-35872 RAIL_PLATE_C_LED (1)
14 SM-1040852-TP DISH SCREW (6)
15 401-35873 RAIL_PLATE_BR (2)
16 401-35870 CONVEYOR_RAIL_LED (1)
17 401-35489 LNC60_SPACER (2)
18 SL-6031492-TN SCREW M3 L=14 (6)
19 401-35871 PWB_GUIDE_LED (2)
20 SM-3030552-TN SCREW M3 L=5 (6)
21 401-35887 PWB_GUIDE_C_LED (1)
22 SL-6030892-TN SCREW M3 L=8 (2)
23 401-35888 PWB_GUIDE_SA_LED (1)
24 SL-6031092-TN SCREW (2)
25 401-35889 PWB_GUIDE_SB_LED (1)
26 SL-6031092-TN SCREW (2)
27 E2111-715-0A0 CONVEYOR PULLEY ASM. (7)
28 WP-0430800-SC WASHER M4 (7)
29 SM-4040855-SC SCREW (4)
30 L167E-921-000 PULLEY SPACER (3)
31 SM-4041401-SC SCREW M4X0.7 L=14 (3)
32 400-46973 LINEAR_WAY-S (4)
33 SM-6030502-TN SCREW M3 L=5 (12)
34 401-36089 PWB_CLAMP_GUIDE_ASM (2)
35 401-21746 PWB_GUIDE_PLATE_S-A_PM (1)
36 SM-6030402-TN SCREW M3X4 (3)
37 401-35876 PWB_CLAMP_GUIDE_BR (1)
38 E3805-721-000 OCC SHIM B (2)
39 401-35875 PWB_CLAMP_BR (1)
40 SL-6030692-TN SCREW M3 L=6 (4)
41 401-35878 CLAMP_MOVE_BR_B (2)
42 SL-6030692-TN SCREW M3 L=6 (4)
43 401-35877 CLAMP_MOVE_BR_A (2)
44 SM-6030402-TN SCREW M3X4 (4)
45 400-76113 CYLINDER (2)
46 401-35882 SPEED_CONTROLLER (4)
47 PJ-3080400-04 BRANCH UNION Y (1)
48 E3528-729-000 ATC JOINT (2)
49 GLA-02335000 CLAMP WASHER (6)
50 400-01286 ATC SPACER RUBBER (2)
51 B2107-816-000 WASHER (2)
52 401-35890 PWB_CLAMP_SENS_DOG (1)
53 SL-4030891-SC SCREW M3X8 (2)
54 SM-6030402-TN SCREW M3X4 (12)
55 SM-6031602-TN SCREW M3 L=16 (8)
56 WP-0330816-SF WASHER 3.25X10X0.8 (4)
57 401-03290 SPROCKET_FLUNGE_WASHER (4)
58 SM-6030402-TN SCREW M3X4 (4)
59 401-03301 SPROCKET_SP_R (4)
60 401-35891 PWB_CLAMP_SENS_BR (2)
61 SL-4030891-SC SCREW M3X8 (4)
62 SL-4030681-SC SCREW M3 L=6 (4)
63 HX-0029400-00 FIXED BASE (3)
64 SL-4030681-SC SCREW M3 L=6 (3)
65 401-36110 CLAMP SENS LF ASM (1)
66 401-36112 CLAMP SENS RF ASM (1)
67 SM-4040855-SC SCREW (2)
68 WP-0430800-SC WASHER M4 (2)
69 400-00802 RAIL_STAND_CL (1)
70 WP-0501046-SC WASHER 5 X 14 X 1 (2)
71 SL-6052092-TN SCREW (2)
72 400-00805 RAIL_STAND_CR (1)
73 WP-0501046-SC WASHER 5 X 14 X 1 (2)
74 SL-6052092-TN SCREW (2)
75 E2111-715-0A0 CONVEYOR PULLEY ASM. (1)
76 400-46032 RAIL STAND F(L) (2)
77 SL-6041292-TN SCREW (4)
78 SL-6052092-TN SCREW (4)
79 400-75460 CONVEYOR BELT S(E)250 1
80 401-07791 CONVEYOR_BELT_C 2
