- - 28 . PWB CO NVEY OR C OM PONE NT S ( 8) 1 6 3 5 7 6 8 1 9 9 9 1 0 1 0 2 3 1 1 1 8 2 9 1 9 2 0 2 1 2 2 2 3 2 3 2 4 3 0 3 1 2 4 6 1 0 1 0 2 3 2 2 1 1 1 2 2 5 2 6 1 3 2 7 1 4 1 5 2 8 3 3 3 3 1 4 1 7 2 3 2 4 2 4 0 3 7 …

100%1 / 112
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61819 STOPPER_UNIT_C_LR_350 1
2 401-61820 STOPPER_UNIT_LR_350 (1)
3 401-10065 STOP SENSOR ASM ( 1)
4 401-61797 STOPPER_L_UNIT_350 (1)
5 L164E-221-000 STOPPER CHIP (1)
6 SM-1030401-SE SCREW M3 L=4 (1)
7 SM-1031201-SC SCREW M3X0.5 L=12 (1)
8 E2039-721-000 WASHER A (2)
9 E2038-721-000 STOPPER COLLAR ( 1)
10 WP-0330516-SC WASHER 3.3X8X0.5 (1)
11 WS-0310002-KN SPRING WASHER M3 (1)
12 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
13 PC-0105080-00 SPEED CONTROLLER (2)
14 SL-604129 2-TN SCREW M4 L=12 (1)
15 401-61603 STOPPER_FRAME_LR (1)
16 L175E-621 -000 STOPPER PLATE L (1)
17 L175E-421 -000 STOPPER CREVICE (1)
18 RE-0200000-K0 E-RING 2 (1)
19 WP-0410516-RZ WASHER (4)
20 SM-6031202-TN SCREW M3X12 (1)
21 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
22 EA-9500B00-00 CABLE BAND (4)
23 SL-403129 1-SC SCREW M3 L=12 (1)
24 400-28832 STOPPER PIN (1)
25 HX-0034400-00 FIXED BASE (1)
26 SL-403069 1-SC SCREW M3 L=6 (1)
27 401-35883 STOPPER_SPACER (1)
28 L163E-521 -000 HOLD PLATE (1)
29 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1.54)
30 401-61602 STOPPER_BR_R (1)
31 E2169-721 -000 HOLD PLATE (1)
32 SL-604129 2-TN SCREW M4 L=12 (2)
33 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1.6)
34 401-61801 STOPPER_UNIT_1200_LR 1
35 401-61821 STOPPER_UNIT_350_LR(1200MM) (1)
36 401-10065 STOP SENSOR ASM (1)
37 401-61797 STOPPER_L_UNIT_350 (1)
38 L164E-221 -000 STOPPER CHIP (1)
39 SM-1030401-SE SCREW M3 L=4 ( 1)
40 SM-1031201-SC SCREW M3X0.5 L=12 (1)
41 E2039-721 -000 WASHER A (2)
42 E2038-721 -000 STOPPER COLLAR (1)
43 WP-0330516-SC WASHER 3.3X8X0.5 (1)
44 WS-0310002-KN SPRING WASHER M3 (1)
45 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
46 PC-0105080-00 SPEED CONTROLLER (2)
47 SL-604129 2-TN SCREW M4 L=12 (1)
48 401-61603 STOPPER_FRAME_LR (1)
49 L175E-621 -000 STOPPER PLATE L (1)
50 L175E-421 -000 STOPPER CREVICE (1)
51 RE-0200000-K0 E-RING 2 (1)
52 WP-0410516-RZ WASHER (4)
53 SM-6031202-TN SCREW M3X12 (1)
54 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
55 EA-9500B00-00 CABLE BAND (4)
56 SL-403129 1-SC SCREW M3 L=12 (1)
57 400-28832 STOPPER PIN (1)
58 HX-0034400-00 FIXED BASE (1)
59 SL-403069 1-SC SCREW M3 L=6 (1)
60 401-36301 STOPPER_SUPPORT_L (1)
61 L163E-521 -000 HOLD PLATE (1)
62 401-35880 STOPPER_BR_1200 (1)
63 SL-604129 2-TN SCREW M4 L=12 (2)
64 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1.9)
65 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1.96)
66 SL-604129 2-TN SCREW M4 L=12 2
67 401-35879 CONVEYOR_SPACER 2
68 401-61823 STOPPER_UNIT_C_RL_350 1
69 401-61824 STOPPER_UNIT_RL_350 (1)
70 401-10065 STOP SENSOR ASM (1)
71 401-61800 STOPPER_R_UNIT_350 (1)
72 L164E-221 -000 STOPPER CHIP (1)
73 SM-1030401-SE SCREW M3 L=4 ( 1)
74 SM-1031201-SC SCREW M3X0.5 L=12 (1)
75 E2039-721 -000 WASHER A (2)
76 E2038-721 -000 STOPPER COLLAR (1)
77 WP-0330516-SC WASHER 3.3X8X0.5 (1)
78 WS-0310002-KN SPRING WASHER M3 (1)
79 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
80 PC-0105080-00 SPEED CONTROLLER (2)
81 SL-604129 2-TN SCREW M4 L=12 (1)
82 401-61604 STOPPER_FRAME_RL (1)
83 L179E-221 -000 STOPPER PLATE R (1)
84 L175E-421 -000 STOPPER CREVICE (1)
85 RE-0200000-K0 E-RING 2 (1)
86 WP-0410516-RZ WASHER (4)
87 SM-6031602-TN SCREW M3 L=16 (1)
88 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
89 EA-9500B00-00 CABLE BAND (4)
90 SM-4031001-SN SCREW (1)
91 400-28832 STOPPER PIN (1)
92 HX-0034400-00 FIXED BASE (1)
93 SL-403069 1-SC SCREW M3 L=6 (1)
94 401-35883 STOPPER_SPACER (1)
95 L163E-521 -000 HOLD PLATE (1)
96 401-61601 STOPPER_BR_L (1)
97 E2169-721 -000 HOLD PLATE (1)
98 SL-604129 2-TN SCREW M4 L=12 (2)
99 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1)
100 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.94)
101 401-61802 STOPPER_UNIT_1200_RL 1
102 401-61825 STOPPER_UNIT_350_RL(1200MM) (1)
103 401-10065 STOP SENSOR ASM (1)
104 401-61800 STOPPER_R_UNIT_350 (1)
105 L164E-221-000 STOPPER CHIP (1)
106 SM-1030401-SE SCREW M3 L=4 (1)
107 SM-1031201-SC SCREW M3X0.5 L=12 (1)
108 E2039-721-000 WASHER A (2)
109 E2038-721-000 STOPPER COLLA R (1)
110 WP-0330516-SC WASHER 3.3X8X0.5 (1)
111 WS-0310002-KN SPRING WASHER M3 (1)
112 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
113 PC-0105080-00 SPEED C ONTROLLER (2)
114 SL-6041292-TN SCREW M4 L=12 (1)
115 401-61604 STOPPER_FRAME_RL (1)
116 L179E-221-000 STOPPER PLATE R (1)
117 L175E-421-000 STOPPER CREVICE (1)
118 RE-020 0000-K0 E-RING 2 (1)
119 WP-0410516-RZ WASHER (4)
120 SM-6031602-TN SCREW M3 L=16 (1)
121 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
122 EA-9500B00-00 CABL E BAND (4)
123 SM-4031001-SN SCREW (1)
124 400-28832 STOPPER PIN (1)
125 HX-003 4400-00 FIXED BA SE (1)
126 SL-4030691-SC SCREW M3 L=6 (1)
127 401-36301 STOPPER_SUPPORT_L (1)
128 L163E-521-000 HOLD PLATE (1)
129 401-35880 STOPPER_BR_1200 (1)
130 SL-6041292-TN SCREW M4 L=12 (2)
131 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (1)
132 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (1.06)
- -
28. PWB CONVEYOR COMPONENTS (8)
1 6
3
5
7
6
8
1 9
9
9
1 0
1 0
2 3
1 1
1 8
2 9
1 9
2 0
2 1
2 2
2 3
2 3
2 4
3 0
3 1
2 4
6
1 0
1 0
2 3
2 2
1 1
1 2
2 5
2 6
1 3
2 7
1 4
1 5
2 8
3 3
3 3
1
4
1 7
2
3 2
4 2
4 0
3 7
3 5
3 8
3 6
3 4
4 4
4 5
4 6
4 7
4 8
4 8
4 9
4 9
4 1
4 3
3 9
- -

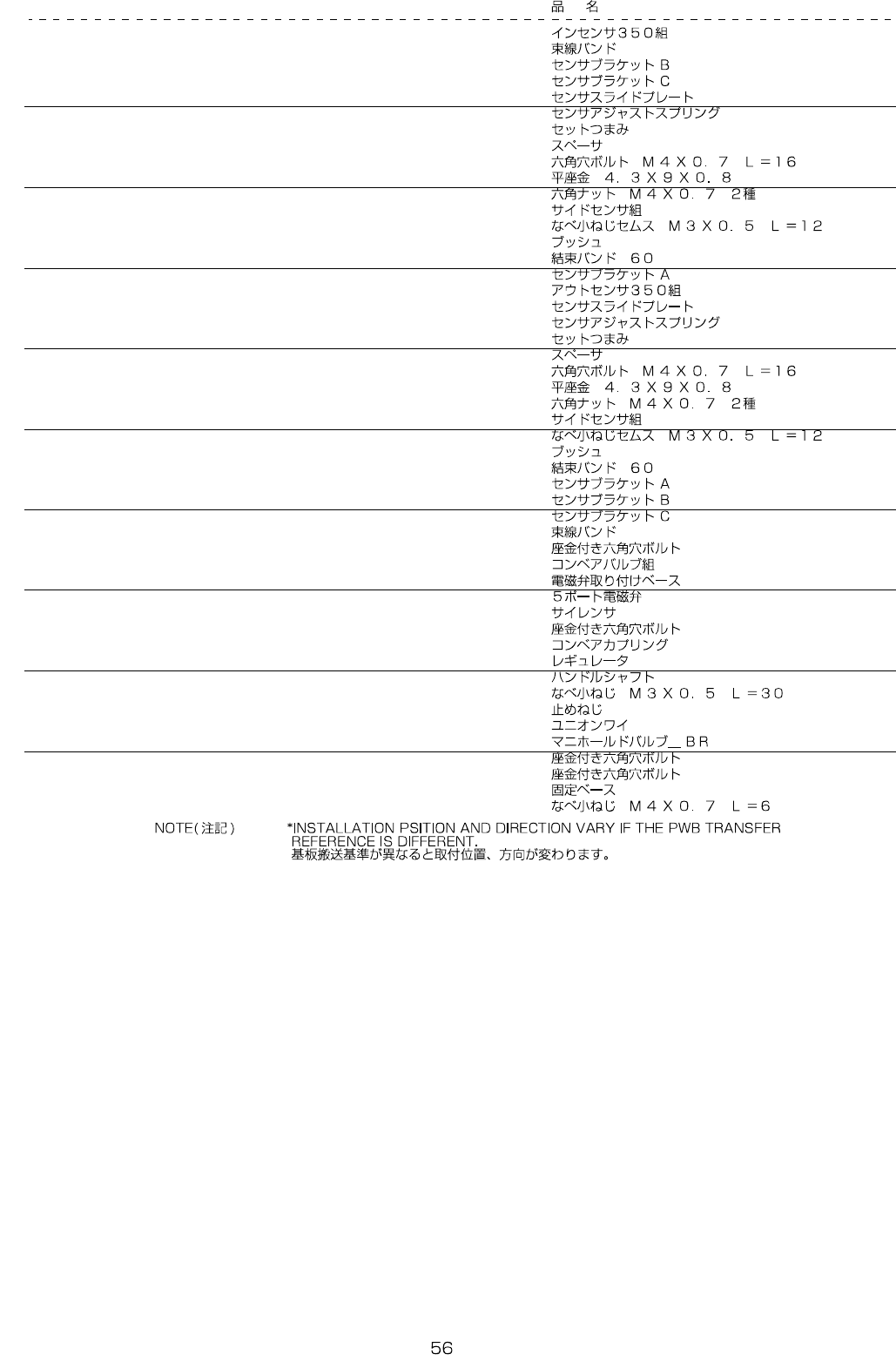

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61817 IN_SENSOR_350_ASM 1
2 HX-0044000-00 CABLE BAND (1)
3 400-01078 SENSOR BRAKET B (1)
4 400-01079 SENSOR BRAKET C (1)
5 400-01076 SENSOR SLIDE PLATE (1)
6 400-00912 SENSOR ADJUST SPRING (3)
7 G6518-880-000 SET PICK-UP (1)
8 400-58815 SPACER (1)
9 SM-6041602-TN SCREW M4 X 16 (3)
10 WP-0430801-SC WASHER 4.3X9X0.8 (6)
11 NM-6040002-SE NUT M4X0.7 (3)
12 401-62658 SIDE SENSOR ASM (1)
13 SL-4031291-SC SCREW M3X12 (1)
14 HX-0036700-0A BUSH (0.16)
15 EA-9500B00-00 CLIP CV-70S (5)
16 400-01077 SENSOR BRAKET A (1)
17 401-61818 OUT_SENSOR_350_ASM 1
18 400-01076 SENSOR SLIDE PLATE (1)
19 400-00912 SENSOR ADJUST SPRING (3)
20 G6518-880-000 SET PICK-UP (1)
21 400-58815 SPACER (1)
22 SM-6041602-TN SCREW M4 X 16 (3)
23 WP-0430801-SC WASHER 4.3X9X0.8 (6)
24 NM-6040002-SE NUT M4X0.7 (3)
25 401-62658 SIDE SENSOR ASM (1)
26 SL-4031291-SC SCREW M3X12 (1)
27 HX-0036700-0A BUSH (0.16)
28 EA-9500B00-00 CLIP CV-70S (5)
29 400-01077 SENSOR BRAKET A (1)
30 400-01078 SENSOR BRAKET B (1)
31 400-01079 SENSOR BRAKET C (1)
32 HX-0044000-00 CABLE BAND (1)
33 SL-6031092-TN SCREW 4
34 400-00916 MANIFOLD VALVE A ASM. 1
35 PV-9150050-00 SOLENOID VALVE INSTALLING BASE (1)
36 PV-1502093-00 5 PORT ELECTROMAGNETIC VALVE (3)
37 PX-0500030-00 SILENCER (1)
38 SL-6041092-TN SCREW 2
39 400-13197 CONVEYOR COUPLING 1
40 PF-0200040-00 REGULATOR 2
41 400-46029 HANDLE SHAFT 1
42 SM-4033001-SC SCREW M3 L=30 4
43 SM-8050502-TP SCREW M5 L=5 4
44 PJ-3080400-06 UNION 10
45 401-61656 MANIFOLD_VALVE_BR 1
46 SL-6082092-TN BOLT 1
47 SL-6040892-TN BOLT 1
48 HX-0029400-00 FIXED BASE 2
49 SM-4040601-SC SCREW M4X0.7 L=6 2
