- - 31. SUP P ORT T AB LE CO M PONE NTS 1 7 1 8 2 0 2 0 1 8 2 1 2 2 2 3 1 9 2 3 3 4 4 1 6 1 5 1 6 5 6 6 7 8 1 4 1 1 1 0 1 2 1 3 9 1 1 9 1 3 1 2 1 4 1 0 1 2 5 1 5 4 6 4 7 4 9 4 8 4 5 5 0 4 1 4 2 4 0 4 2 4 1 4 4 A A 4 3 …
- -

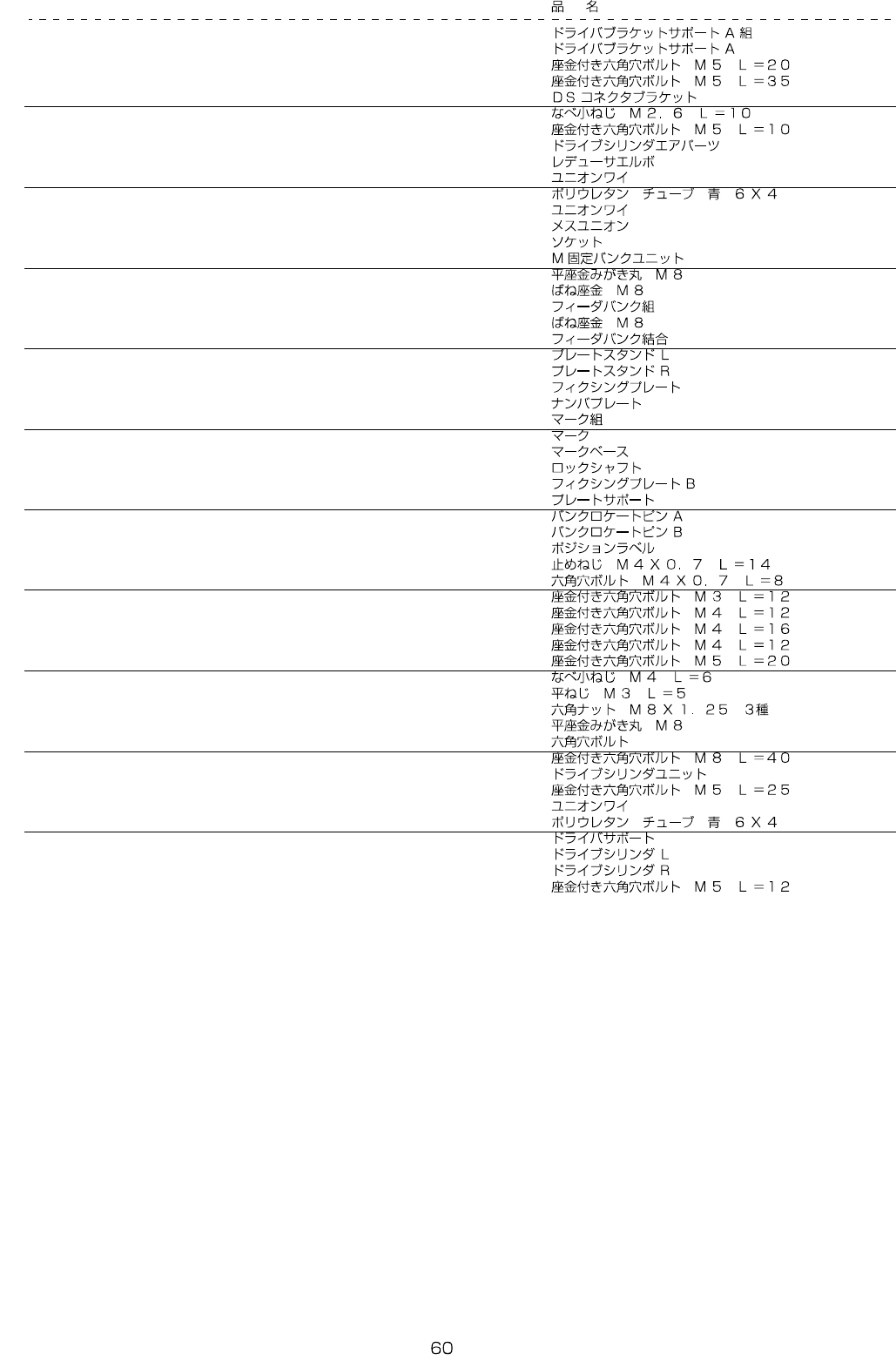

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2634-721-0A0 DRIVER BRACKET SUPPORT A ASM. 1
2 E2634-721-000 DRIVER BRACKET SUPPORT A (2)
3 SL-6052092-TN SCREW M5 L=20 (4)
4 SL-6053592-TN SCREW M5 L=35 (4)
5 400-26804 DS CONNECTOR BRACKET 1
6 SM-4861001-SC SCREW M2.6 L=10 4
7 SL-6051092-TN SCREW M5 L=10 2
8 400-93832 DC AIR PARTS 2
9 PJ-3040600-01 REDUCER ELBOW (1)
10 PJ-3080600-03 UNION Y (1)
11 BT-0600400-EC URETHANE TUBE BLUE 6X4 (4)
12 PJ-3080600-03 UNION Y (2)
13 PJ-3010651-06 FEMALE UNION (1)
14 E2904-700-000 SOCKET (1)
15 401-14142 M FIXED BANK UNIT 1
16 WP-0841601-SC WASHER M8 (2)
17 WS-0820002-KN SPRING WASHER M8 (2)
18 E2501-729-AA0 FEEDER BANK ASM (1)
19 WS-0820002-KN SPRING WASHER M8 (2)
20 E2501-729-0B0 FEEDER BANK (30) COMPL. (1)
21 E2502-729-000 PLATE STAND L (1)
22 E2503-729-000 PLATE STAND R (1)
23 E2515-729-000 FIXING PLATE (1)
24 E2516-729-000 NUMBER PLATE (1)
25 E2505-729-0A0 MARK ASM. (2)
26 E2601-725-000 MARK (1)
27 E2505-729-000 MARK BASE (1)
28 E2504-729-000 LOCK SHAFT (1)
29 E2513-729-000 FIXING PLATE B (4)
30 E2608-721-000 PLATE SUPPORT (4)
31 E2609-721-000 BANK LOCATE PIN A (1)
32 E2610-721-000 BANK LOCATE PIN B (1)
33 400-98252 POSITION LABEL (1)
34 SM-8041402-TP SCREW M4X0.7 L=14 (4)
35 SM-6040802-TN SCREW M4X0.7 L=8 (17)
36 SL-6031292-TN SCREW M3 L=12 (12)
37 SL-6041292-TN SCREW M4 L=12 (5)
38 SL-6041692-TN SCREW M4 L=16 (8)
39 SL-6041292-TN SCREW M4 L=12 (4)
40 SL-6052092-TN SCREW M5 L=20 (4)
41 SM-4040655-SN SCREW M4X0.7 L=6 (8)
42 SM-6030552-KS SCREW (9)
43 NM-6080003-SC NUT M8X1.25 TYPE3 (2)
44 WP-0841601-SC WASHER M8 (2)
45 SM-6085002-TN SCREW (2)
46 SL-6084092-TN SCREW M8 L=40 (2)
47 400-93831 DRIVE CYLINDER UNIT 2
48 SL-6052592-TN SCREW M5 L=25 (6)
49 PJ-3080600-03 UNION Y (1)
50 BT-0600400-EC URETHANE TUBE BLUE 6X4 (0.8)
51 400-93843 DRIVER SUPPORT (1)
52 400-00575 DRIVE CYLINDER L (1)
53 400-00576 DRIVE CYLINDER R (1)
54 SL-6051292-TN SCREW M5 L=12 (2)
- -
31. SUPPORT TABLE COMPONENTS
1 7
1 8
2 0
2 0
1 8
2 1
2 2
2 3
1 9
2
3
3
4
4
1 6
1 5
1 6
5
6
6
7
8
1 4
1 1
1 0
1 2
1 3
9
1 1
9
1 3
1 2
1 4
1 0
1
2 5
1 5
4 6
4 7
4 9
4 8
4 5
5 0
4 1
4 2
4 0
4 2
4 1
4 4
A
A
4 3
3 9
5 2
5 6
5 3
5 4
5 5
2 4
B
B
5 1
3 1
3 2
3 1
3 0
2 8
2 9
3 4
3 4
3 5
3 5
3 6
3 7
3 6
3 7
3 3
2 7
3 8
2 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61816 BU_BASE_350 ASM 1
2 401-36302 BU_BASE (1)
3 SB-8160005-C0 BEARING (2)
4 SM-6040802-TN SCREW (8)
5 400-78535 CYLINDER (1)
6 PJ-3040405-04 ELBOW UNION (2)
7 400-78534 FLOATING JOINT (1)
8 SM-6055552-TN BOLT M5 L=55 (4)
9 401-36316 BU_TABLE_STOPPER_BR_A_ASM (2)
10 401-36306 BU_TABLE_STOPPER_BR_A (1)
11 E2778-721-000 STOPPER RUBBER (1)
12 E2779-721-000 STOPPER COLLAR (2)
13 SM-6030802-TN SCREW (2)
14 SL-6040892-TN BOLT (4)
15 401-36307 BU_TABLE_STOPPER_BR_B (2)
16 SL-6040892-TN BOLT (6)
17 401-61641 BU_SENSOR_BR (1)
18 401-54793 PROXIMITY SENSOR CABLE ASM (2)
19 SL-6040892-TN BOLT (2)
20 SM-4860801-SC SCREW M2.6 L=8 (2)
21 HX-0029400-00 FIXED BASE (1)
22 SL-4030691-SC SCREW M3 L=6 (1)
23 EA-9500B01-00 CABLE BAND (1)
24 401-38011 BACK_UP_PIN_LED_ASM 16
25 SL-6082092-TN BOLT 4
26 401-36314 BU_TABLE_AIR_BR_ASM 1
27 401-62468 SUP_TABLE_AIR_ASM_BR (1)
28 PF-0200040-00 REGULATOR (1)
29 SM-4033001-SC SCREW M3 L=30 (2)
30 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
31 PX-0505010-00 SILENCER (2)
32 PJ-3010405-05 HALF UNION (1)
33 SL-4030691-SC SCREW M3 L=6 (2)
34 PC-0124010-00 SPEED CONTROLLER (2)
35 SL-4031491-SC SCREW M3X14 (2)
36 HX-0029400-00 FIXED BASE (3)
37 SL-4030691-SC SCREW M3 L=6 (3)
38 SL-6041092-TN SCREW 2
39 401-36317 BU_TABLE_ASM 1
40 401-36303 BU_TABLE_A (1)
41 401-36305 BU_TABLE_SIDE_BAR (2)
42 SL-6040692-TN SCREW M4 L=6 (8)
43 SL-6040642-TN BOLT (4)
44 SM-1040852-TP DISH SCREW (2)
45 401-36304 BU_TABLE_B (1)
46 400-78532 LIFTER GUIDE SH (2)
47 SL-6061292-TN SCREW (2)
48 SM-6045052-TN SCREW M4 L=50 (4)
49 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
50 WP-0450816-SC WASHER (4)
51 SL-6061292-TN SCREW 1
52 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 1.7
53 BT-0600400-EC URETHANE TUBE BLUE 6X4 0.08
54 PJ-3010400-01 REDUCER 1
55 PJ-3080600-03 Y UNION 1
56 EA-9500B01-00 CABLE BAND 3
