- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 401-61 816 BU_B ASE_3 50 ASM 1 2 401-36 302 BU_B ASE (1) 3 SB-8 160005-C0 BEARI NG (2) 4 SM- 6040802-TN SCREW (8) 5 400-78 535 C Y LIN DER ( 1) 6 PJ-3 040405-04 E LBO…
- -

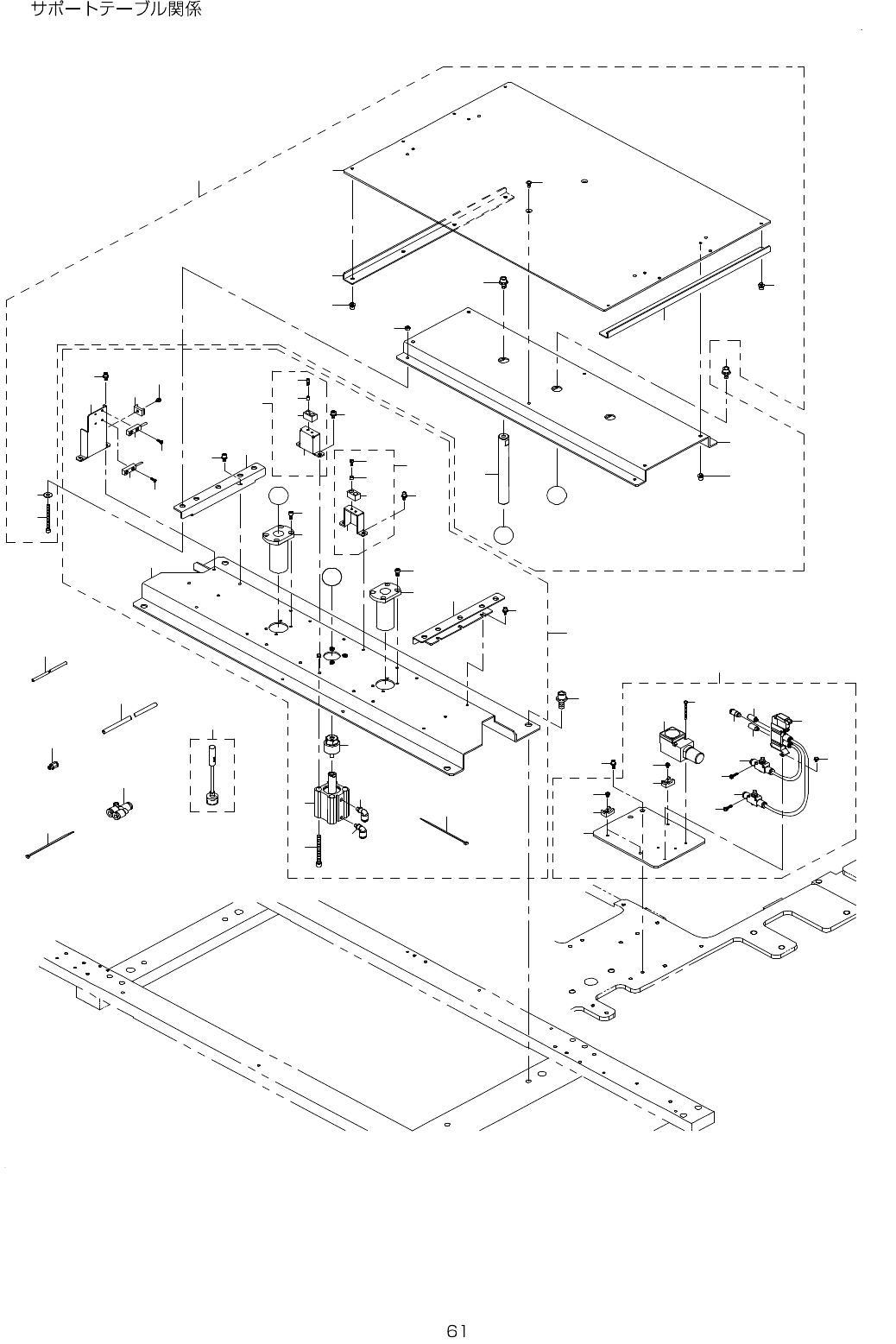

31. SUPPORT TABLE COMPONENTS
1 7
1 8
2 0
2 0
1 8
2 1
2 2
2 3
1 9
2
3
3
4
4
1 6
1 5
1 6
5
6
6
7
8
1 4
1 1
1 0
1 2
1 3
9
1 1
9
1 3
1 2
1 4
1 0
1
2 5
1 5
4 6
4 7
4 9
4 8
4 5
5 0
4 1
4 2
4 0
4 2
4 1
4 4
A
A
4 3
3 9
5 2
5 6
5 3
5 4
5 5
2 4
B
B
5 1
3 1
3 2
3 1
3 0
2 8
2 9
3 4
3 4
3 5
3 5
3 6
3 7
3 6
3 7
3 3
2 7
3 8
2 6
- -

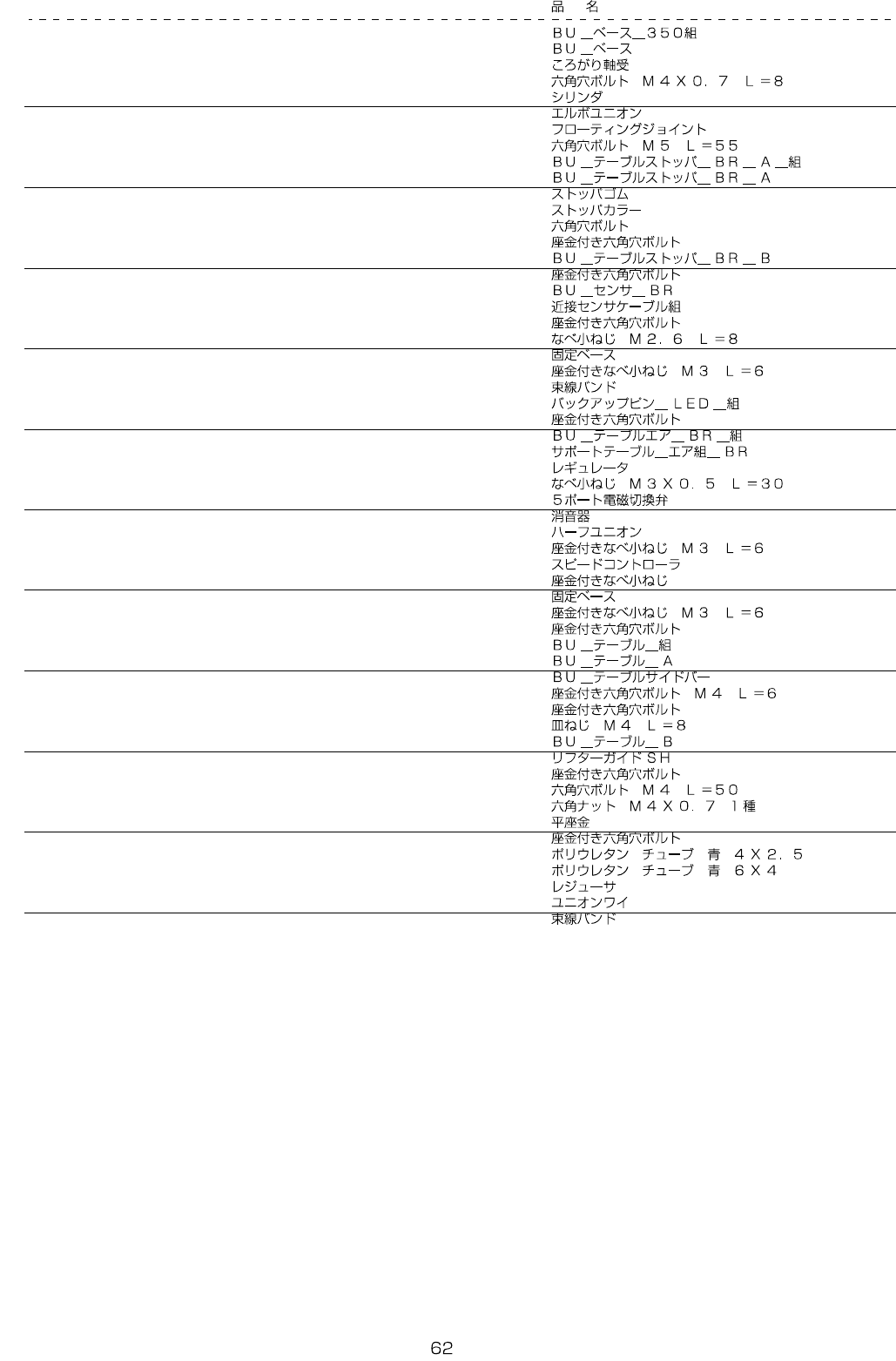

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61816 BU_BASE_350 ASM 1
2 401-36302 BU_BASE (1)
3 SB-8160005-C0 BEARING (2)
4 SM-6040802-TN SCREW (8)
5 400-78535 CYLINDER (1)
6 PJ-3040405-04 ELBOW UNION (2)
7 400-78534 FLOATING JOINT (1)
8 SM-6055552-TN BOLT M5 L=55 (4)
9 401-36316 BU_TABLE_STOPPER_BR_A_ASM (2)
10 401-36306 BU_TABLE_STOPPER_BR_A (1)
11 E2778-721-000 STOPPER RUBBER (1)
12 E2779-721-000 STOPPER COLLAR (2)
13 SM-6030802-TN SCREW (2)
14 SL-6040892-TN BOLT (4)
15 401-36307 BU_TABLE_STOPPER_BR_B (2)
16 SL-6040892-TN BOLT (6)
17 401-61641 BU_SENSOR_BR (1)
18 401-54793 PROXIMITY SENSOR CABLE ASM (2)
19 SL-6040892-TN BOLT (2)
20 SM-4860801-SC SCREW M2.6 L=8 (2)
21 HX-0029400-00 FIXED BASE (1)
22 SL-4030691-SC SCREW M3 L=6 (1)
23 EA-9500B01-00 CABLE BAND (1)
24 401-38011 BACK_UP_PIN_LED_ASM 16
25 SL-6082092-TN BOLT 4
26 401-36314 BU_TABLE_AIR_BR_ASM 1
27 401-62468 SUP_TABLE_AIR_ASM_BR (1)
28 PF-0200040-00 REGULATOR (1)
29 SM-4033001-SC SCREW M3 L=30 (2)
30 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
31 PX-0505010-00 SILENCER (2)
32 PJ-3010405-05 HALF UNION (1)
33 SL-4030691-SC SCREW M3 L=6 (2)
34 PC-0124010-00 SPEED CONTROLLER (2)
35 SL-4031491-SC SCREW M3X14 (2)
36 HX-0029400-00 FIXED BASE (3)
37 SL-4030691-SC SCREW M3 L=6 (3)
38 SL-6041092-TN SCREW 2
39 401-36317 BU_TABLE_ASM 1
40 401-36303 BU_TABLE_A (1)
41 401-36305 BU_TABLE_SIDE_BAR (2)
42 SL-6040692-TN SCREW M4 L=6 (8)
43 SL-6040642-TN BOLT (4)
44 SM-1040852-TP DISH SCREW (2)
45 401-36304 BU_TABLE_B (1)
46 400-78532 LIFTER GUIDE SH (2)
47 SL-6061292-TN SCREW (2)
48 SM-6045052-TN SCREW M4 L=50 (4)
49 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
50 WP-0450816-SC WASHER (4)
51 SL-6061292-TN SCREW 1
52 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 1.7
53 BT-0600400-EC URETHANE TUBE BLUE 6X4 0.08
54 PJ-3010400-01 REDUCER 1
55 PJ-3080600-03 Y UNION 1
56 EA-9500B01-00 CABLE BAND 3
- -

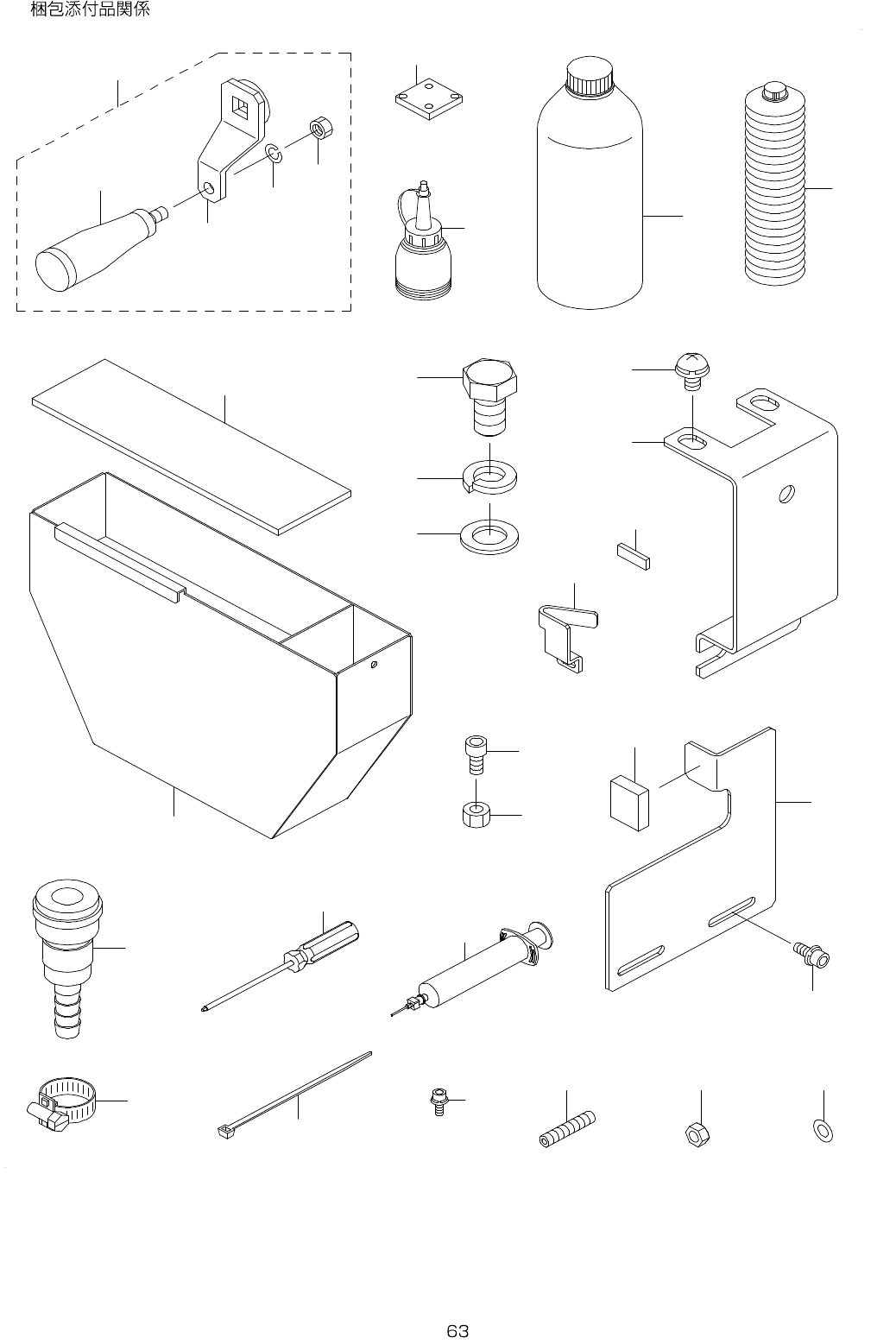

32. ACCESSORIES PART COMPONENTS
1 0
1 5
9
1 6
1 4
2 1 3 0 3 2
1 7
1 8
6
1
3
2
4
5
8
2 8
7
1 1
2 0
2 7
2 5
2 4
1 9
1 2
1 3
2 9
2 3
2 2
2 6
3 1
