- - OPTION 33 . AW C CO MPO NE NTS 1 7 1 5 3 1 1 1 0 1 6 7 4 8 9 1 2 1 8 5 1 4 2 6 1 3 1 1 9 2 1 2 0 2 2 3 0 2 8 2 7 2 3 2 5 2 6 2 3 2 6 2 4 3 1 2 9 3 2 2 7
- -

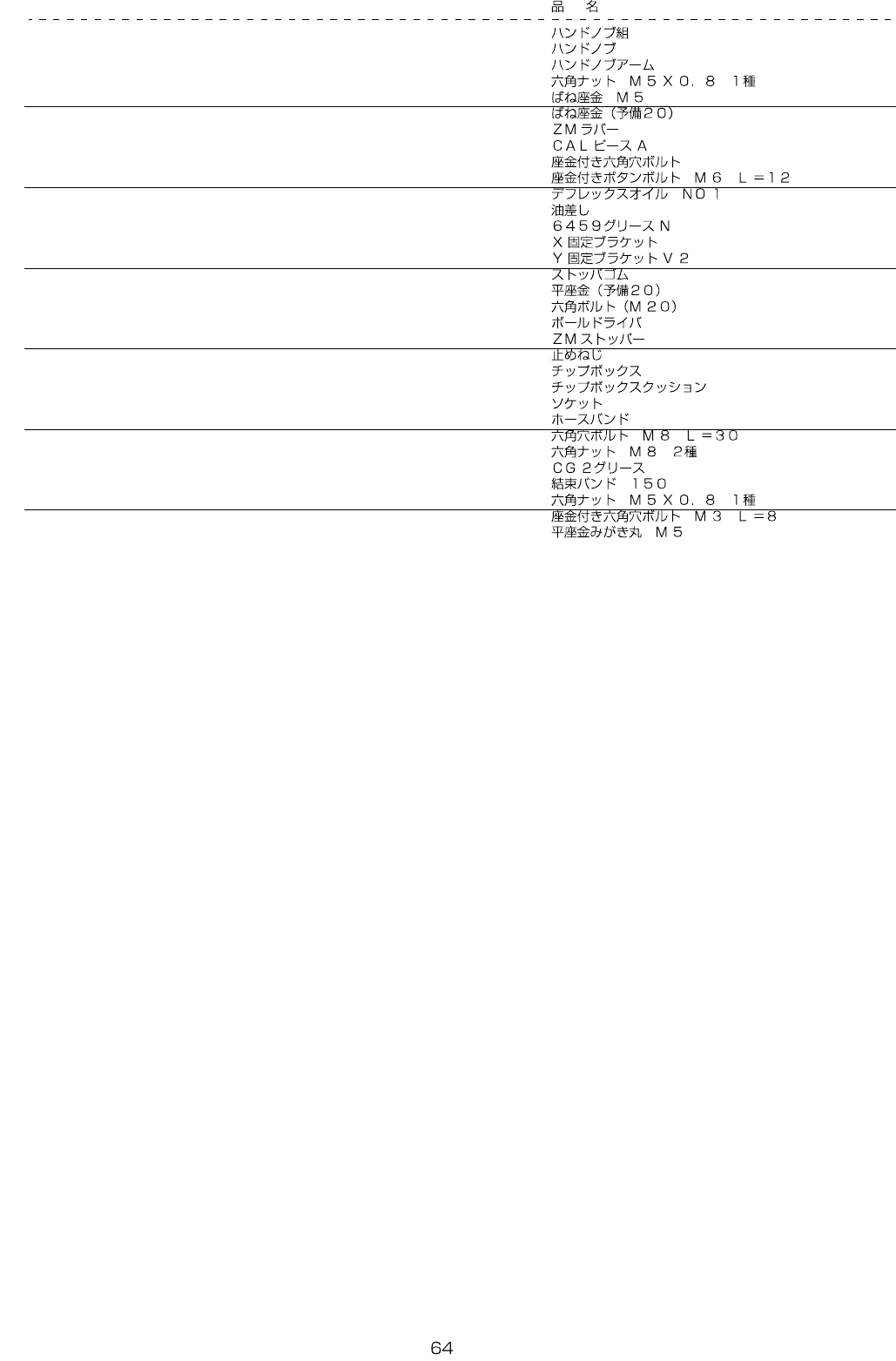

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-72349 HAND KNOB ASM 1
2 400-72363 HAND KNOB (1)
3 400-72364 HAND KNOB ARM (1)
4 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
5 WS-0510002-KN SPRING WASHER M5 (1)
6 288-46608 SPRING WASHER 4
7 400-46644 ZM RUBBER 6
8 E3622-721-000 CAL PIECE A 1
9 SL-6041092-TN SCREW 2
10 SL-3061232-TN SCREW M6 L=12 8
11 MDF-RX1001L0-9 DEFRIX OIL NO.1(800CC) 1
12 J1067-000-000 OILER 1
13 400-32449 6459 GREASE N 1
14 401-46952 X_FIX_BR 1
15 401-06051 Y_FIX_BR_V2 2
16 E2424-725-000 STOPPER RUBBER R 1
17 288-46509 WASHER 4
18 288-46400 BOLT 4
19 J1080-000-000 BOLL SCREWDRIVER 1
20 400-46528 ZM STOPPER 6
21 SM-8052502-TP SCREW M5X0.8 L=25 16
22 400-45985 CHIP BOX 1
23 400-45986 CHIP BOX CUSHION 1
24 PJ-0700000-01 SOCKET 1
25 161-21907 HOSE BAND 1
26 SM-6083002-TN SCREW M8 L=30 12
27 NM-6080002-SC NUT M8 12
28 400-46643 CG2 GREASE 1
29 EA-9500B02-00 CABLE BAND 150 10
30 NM-6050001-SC NUT M5X0.8 TYPE1 16
31 SL-6030892-TN SCREW M3 L=8 2
32 WP-0531001-SC WASHER M5 16
- -

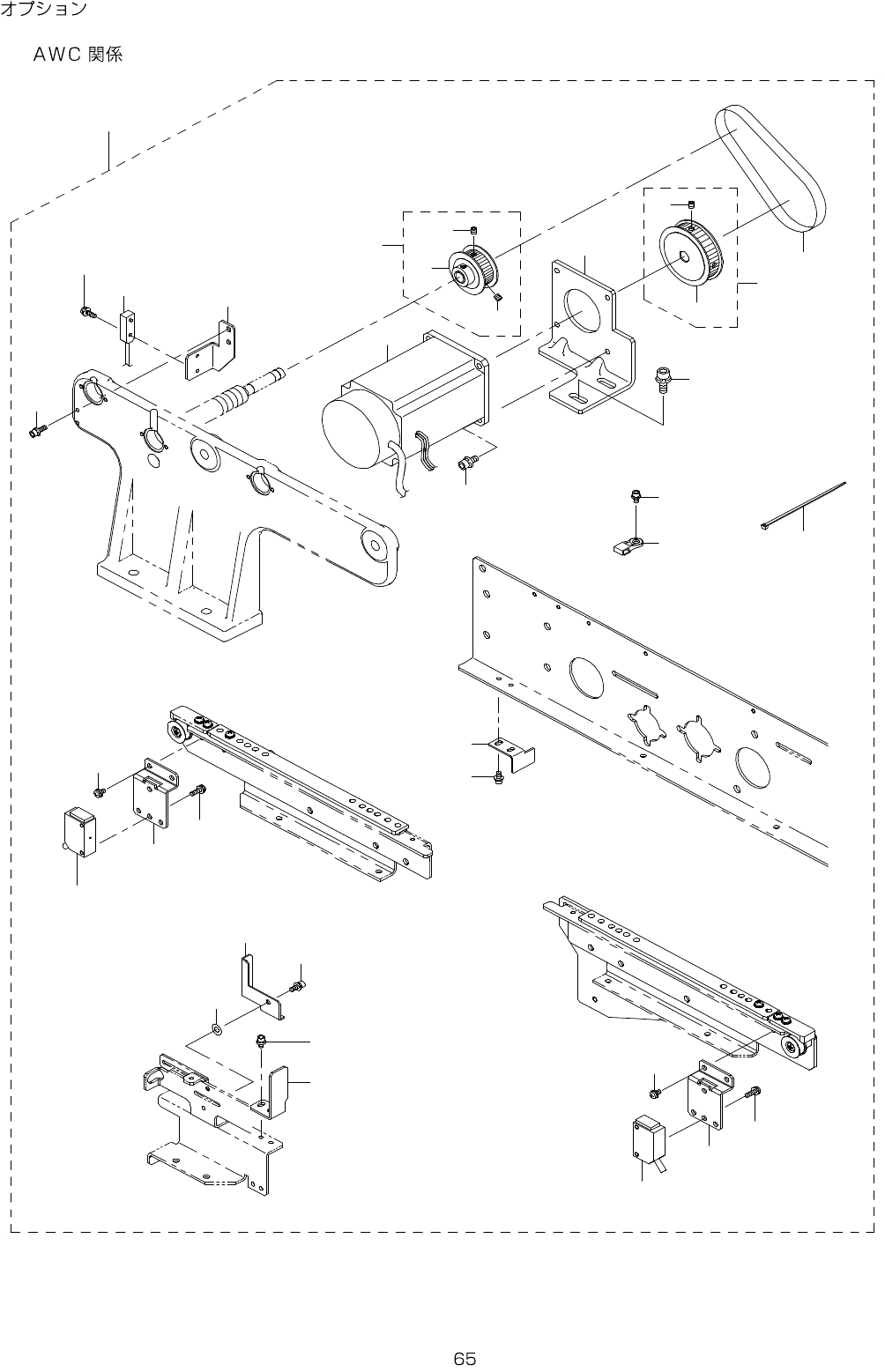

OPTION
33. AWC COMPONENTS
1 7
1 5
3
1 1
1 0
1 6
7
4
8
9
1 2
1 8
5
1 4
2
6
1 3
1
1 9
2 1
2 0
2 2
3 0
2 8
2 7
2 3
2 5
2 6
2 3
2 6
2 4
3 1
2 9
3 2
2 7
- -

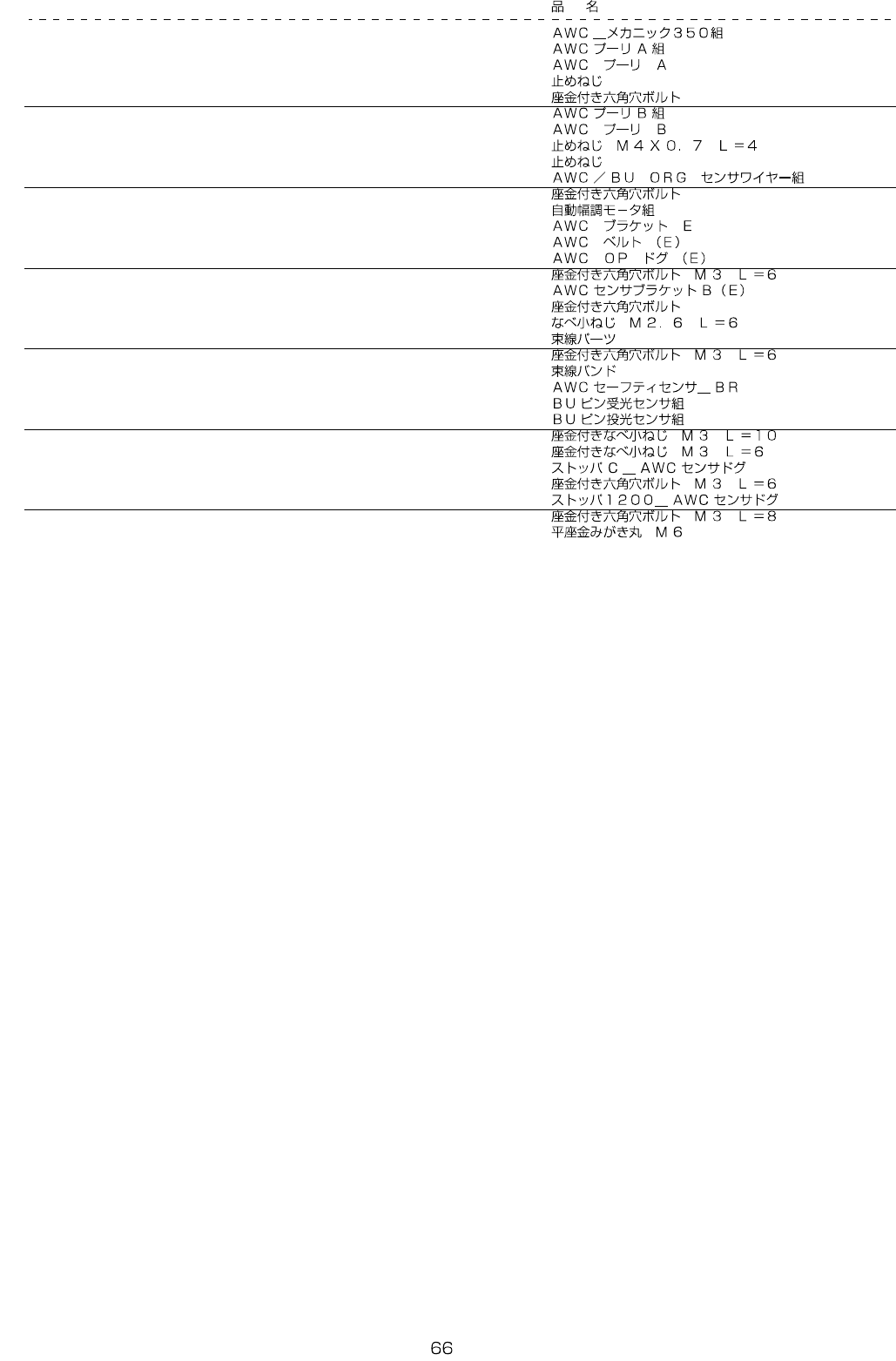

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-61950 AWC_MECHANIC_350_ASM 1
2 400-00768 AWC PULLEY A ASM. (1)
3 E2153-725-000 AWC PULLEY A (1)
4 SM-8040602-TP SCREW M4X0.7 L=6 (2)
5 SL-6051492-TN BOLT (2)
6 400-00769 AWC PULLEY B ASM. (1)
7 E2154-725-000 AWC PULLEY B (1)
8 SM-8040402-TP SCREW M4X0.7 L=4 (2)
9 SM-8040602-TP SCREW M4X0.7 L=6 (2)
10 401-29042 AWC/BU ORG SENSOR CABLE ASM (1)
11 SL-6031092-TN SCREW (2)
12 E9434-729-0A0 WIDTH ADJUST MOTOR ASM. (1)
13 E2163-725-000 AWC BRACKET E (1)
14 E2160-725-000 AWC BELT (E) (1)
15 E2161-725-000 AWC OP DOG (E) (1)
16 SL-6030692-TN SCREW M3 L=6 (2)
17 E4805-729-000 AWC SENSOR BRACKET B (E) (1)
18 SL-6041092-TN SCREW (4)
19 SM-4860601-SC SCREW M2.6 L=6 (1)
20 HX-0034400-00 HARNESS PARTS (1)
21 SL-6030692-TN SCREW M3 L=6 (1)
22 EA-9500B01-00 CABLE BAND (2)
23 401-35492 AWC_SAFETY_SENSOR_BR (2)
24 401-61237 BU PIN RECEIVE SENS ASM (1)
25 401-61236 BU PIN EMISSION SENS ASM (1)
26 SL-4031091-SC SCREW M3 L=10 (4)
27 SL-4030691-SC SCREW M3 L=6 (4)
28 401-35493 STOPPER_C_AWC_SENS_DOG (1)
29 SL-6030692-TN SCREW M3 L=6 (2)
30 401-35494 STOPPER_1200_AWC_SENS_DOG (1)
31 SL-6030892-TN SCREW M3 L=8 (1)
32 WP-0641601-SC WASHER (1)
