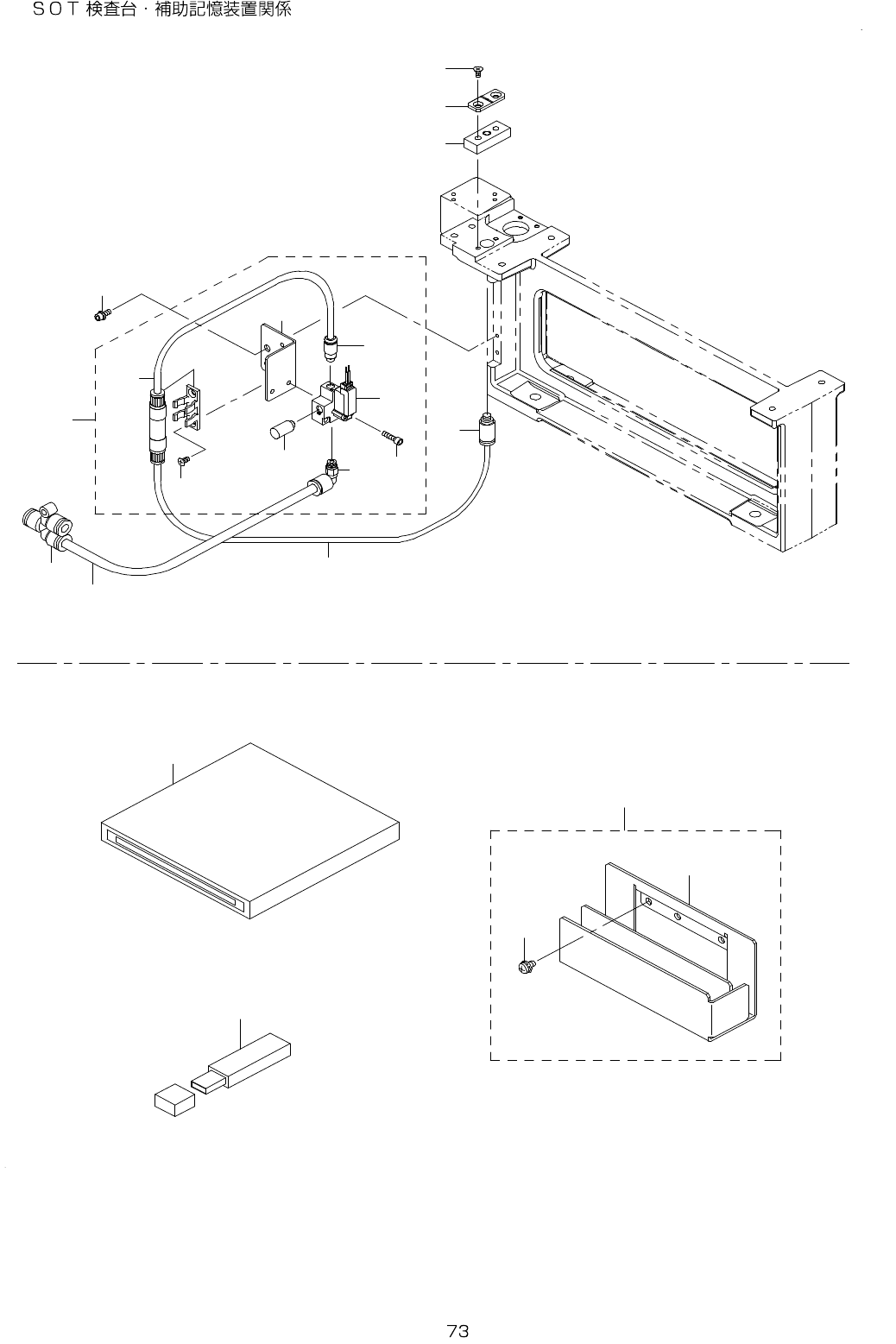

37. SOT CHECK TABLE & AUXILIARY MEMORY COMPONENTS
4
1 0
7
6
8
1 5
1 3
1 2
5
3
1
2
9
1 1
1 4
1 6
1 7
1 8
1 9
2 0
2 2
2 3
2 1
- -

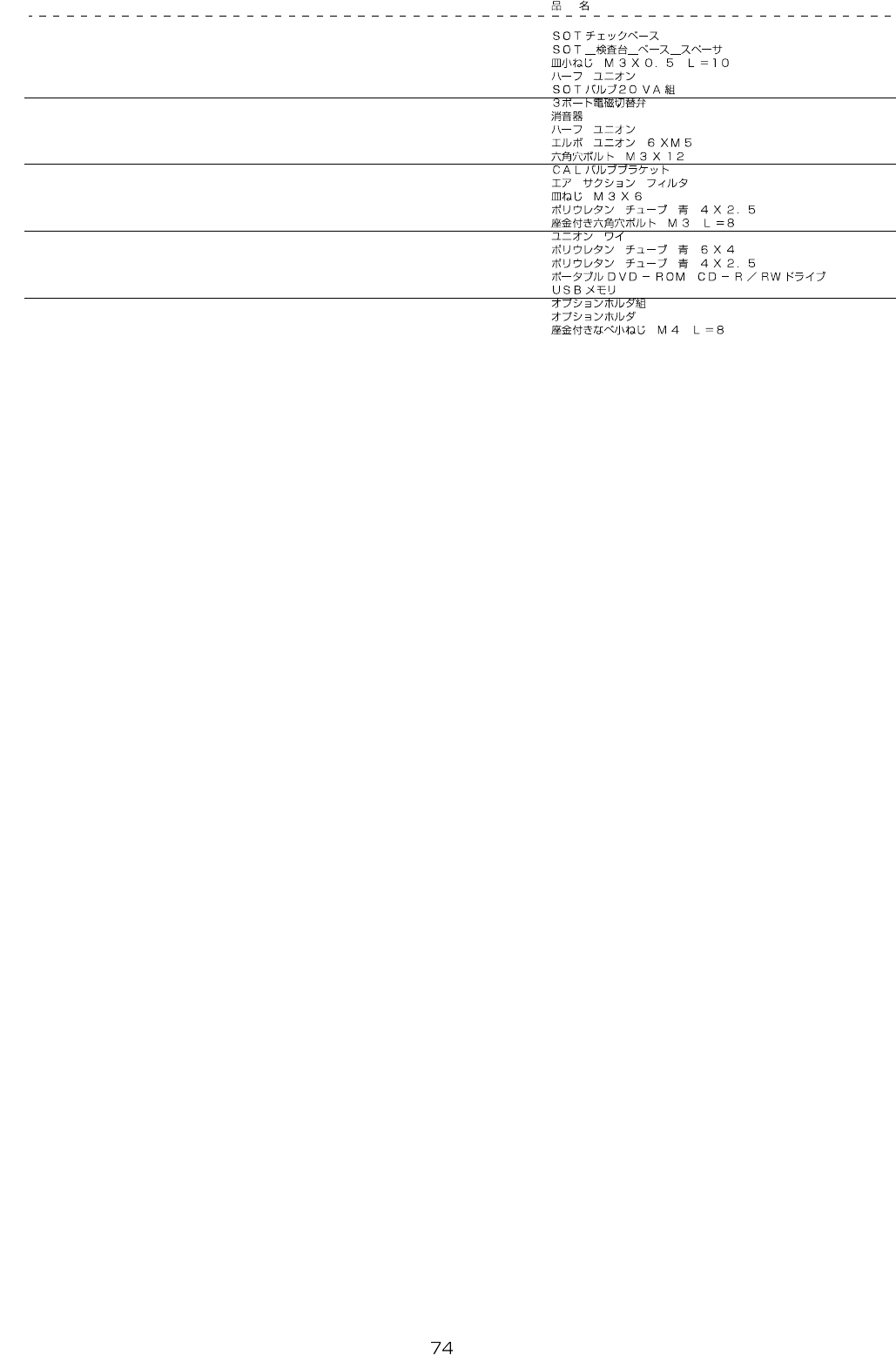

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45984 SOT CHECK BASE 1
2 401-61642 SOT_CHECK_BASE_SPACER 1
3 SM-1031001-SC SCREW M3X0.5 L=10 2
4 PJ-3010405-05 HALF UNION 1
5 401-47666 SOT_VALVE_20VA_ASM 1
6 PV-1305410-00 3-PORT SOLENOID VALVE (1)
7 PX-0505010-00 SILENCER (1)
8 PJ-3010405-05 HALF UNION (1)
9 PJ-3040605-02 ELBOW UNION 6XM5 (1)
10 SM-6031202-TN SCREW M3X12 (2)
11 401-46942 CAL_VALVE_BRKT (1)
12 PF-0100030-A0 AIR SUCTION FILTER (4)
13 SM-1030601-SC SCREW M3X6 (2)
14 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (0.08)
15 SL-6030892-TN SCREW M3 L=8 2
16 PJ-3080600-03 UNION Y 1
17 BT-0600400-EC URETHANE TUBE BLUE 6X4 0.15
18 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 0.25
19 400-44524 PORTABLE DVD-ROM CD-R/RW DRIVE 1
20 400-52558 USB MEMORY 1
21 400-71517 OPTION HOLDER ASSY 1
22 400-93827 OPTION_HOLDER (1)
23 SL-4040891-SC SCREW M4X8 (2)
