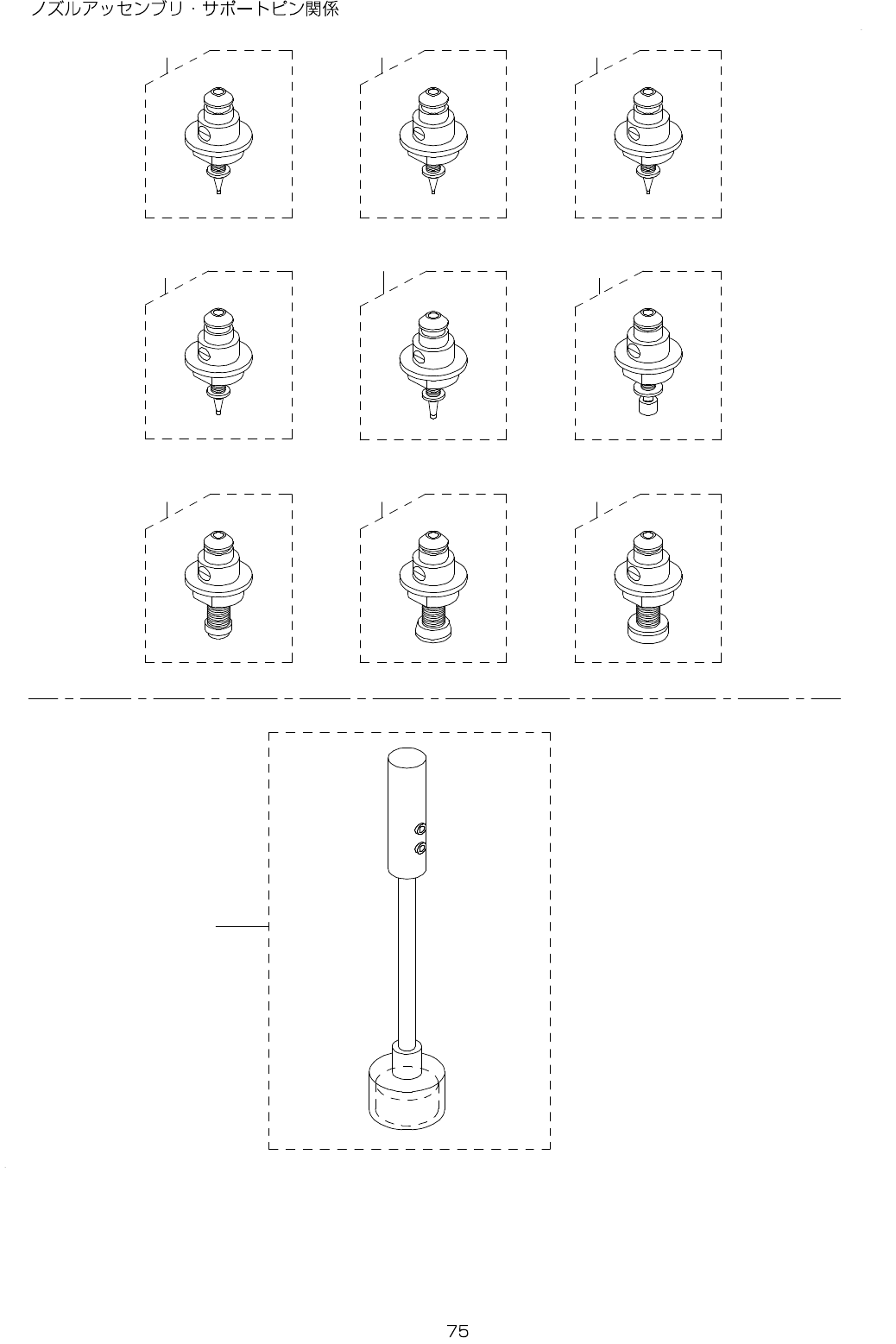

38. NOZZLE ASSEMBLY & SUPPORT PIN COMPONENTS
3
4 6
5
1 2
7 8 9
1 0
- -

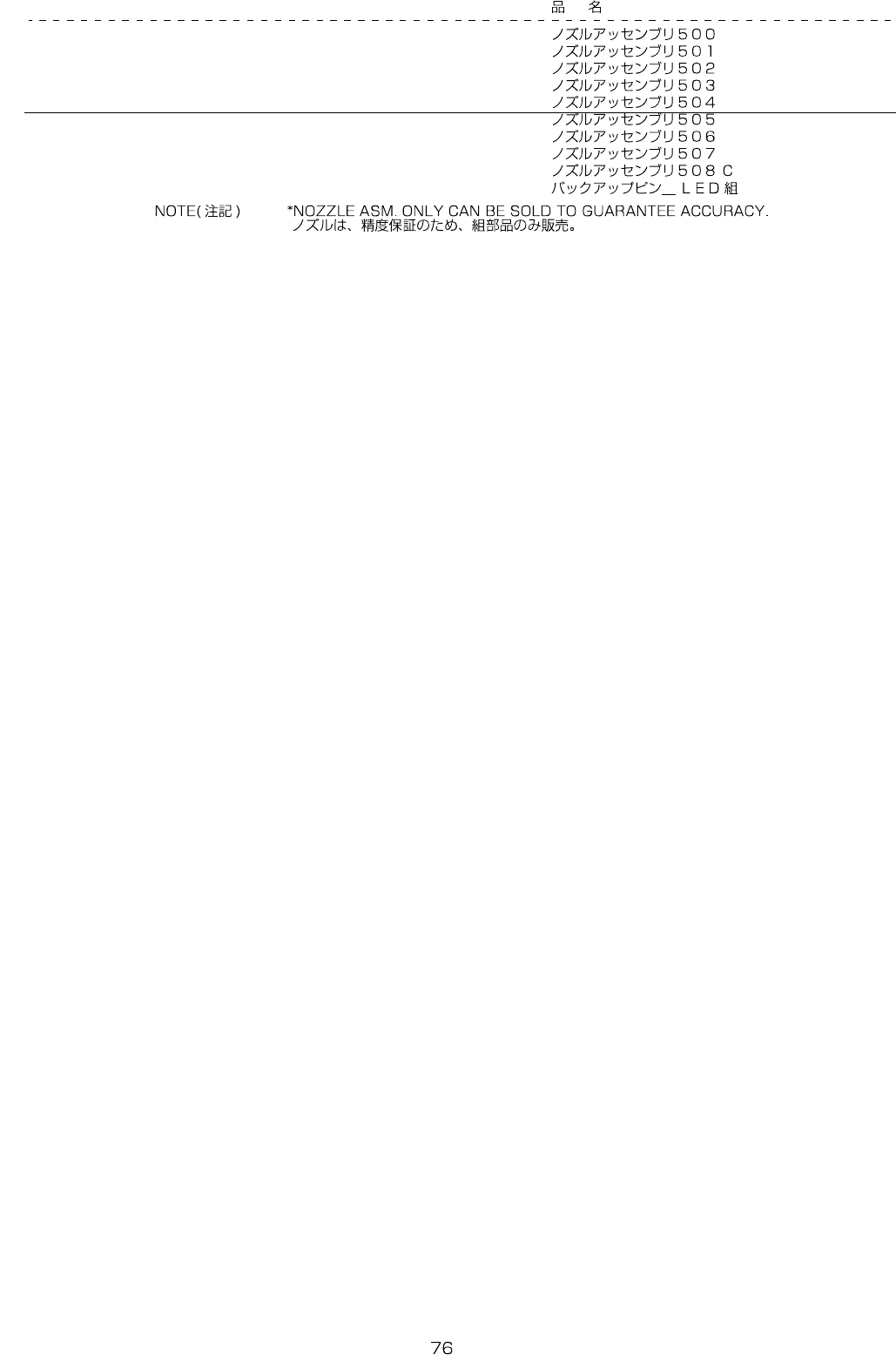

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-11046 NOZZLE ASSEMBLY 500 1
2 400-01339 NOZZLE ASSEMBLY 501 1
3 400-01340 NOZZLE ASSEMBLY 502 1
4 400-01341 NOZZLE ASSEMBLY 503 1
5 400-01342 NOZZLE ASSEMBLY 504 1
6 400-01343 NOZZLE ASSEMBLY 505 1
7 400-01344 NOZZLE ASSEMBLY 506 1
8 400-01345 NOZZLE ASSEMBLY 507 1
9 400-44239 NOZZLE ASSEMBLY 508C 1
10 401-38011 BACK_UP_PIN_LED_ASM 1
- -

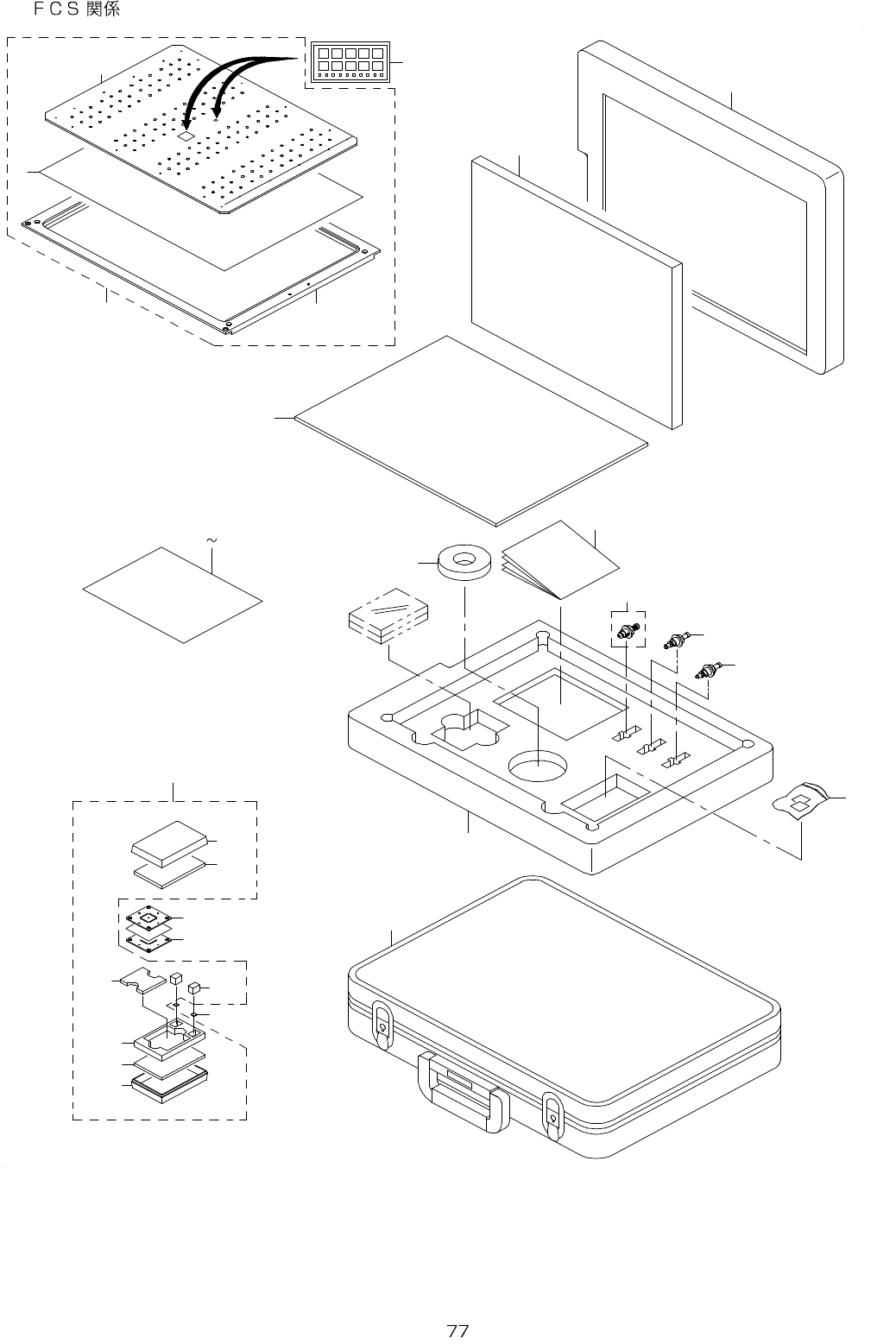

39. FCS COMPONENTS
3
1
1 9
1 9
1 7
6
1 5
1 8
2
4
7
8
9
1 0
2 6
1 4
1 6
1 4
1 5
2 0 2 2
1 3
2 3
2 5
1 2
2 4
1 1
5
2 7
