- - REF.NO NOTE PART N O D E S C R I P T I O N Qty 1 400 -00569 BANK SUPPO RTER RR COMB. 1 2 401 -35962 TRA Y_STATIO N R_ASM 1 3 S L-6084092 -TN BOLT (2) 4 WP -0841601 -SC WASHE R M8 (6) 5 WS -0820002 -KN SPRING WA SHE…
- -

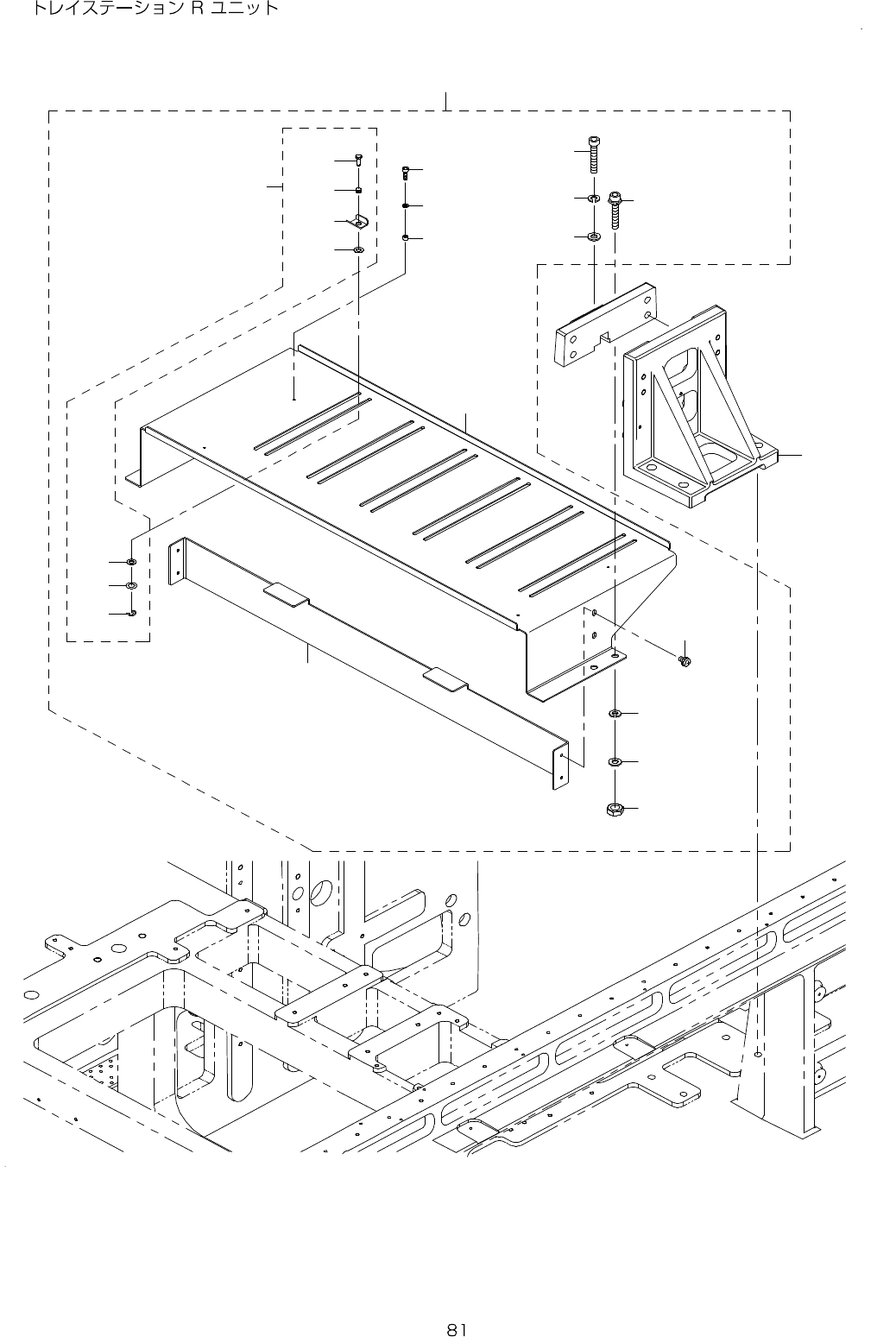

41. TRAY STATION R UNIT
1 1
1 0
9
1 2
1 4
1 3
1 2
8
1 9
6
7
1 5
1 6
1 7
1 8
2
1
2 0
5
3
4
4
5
- -

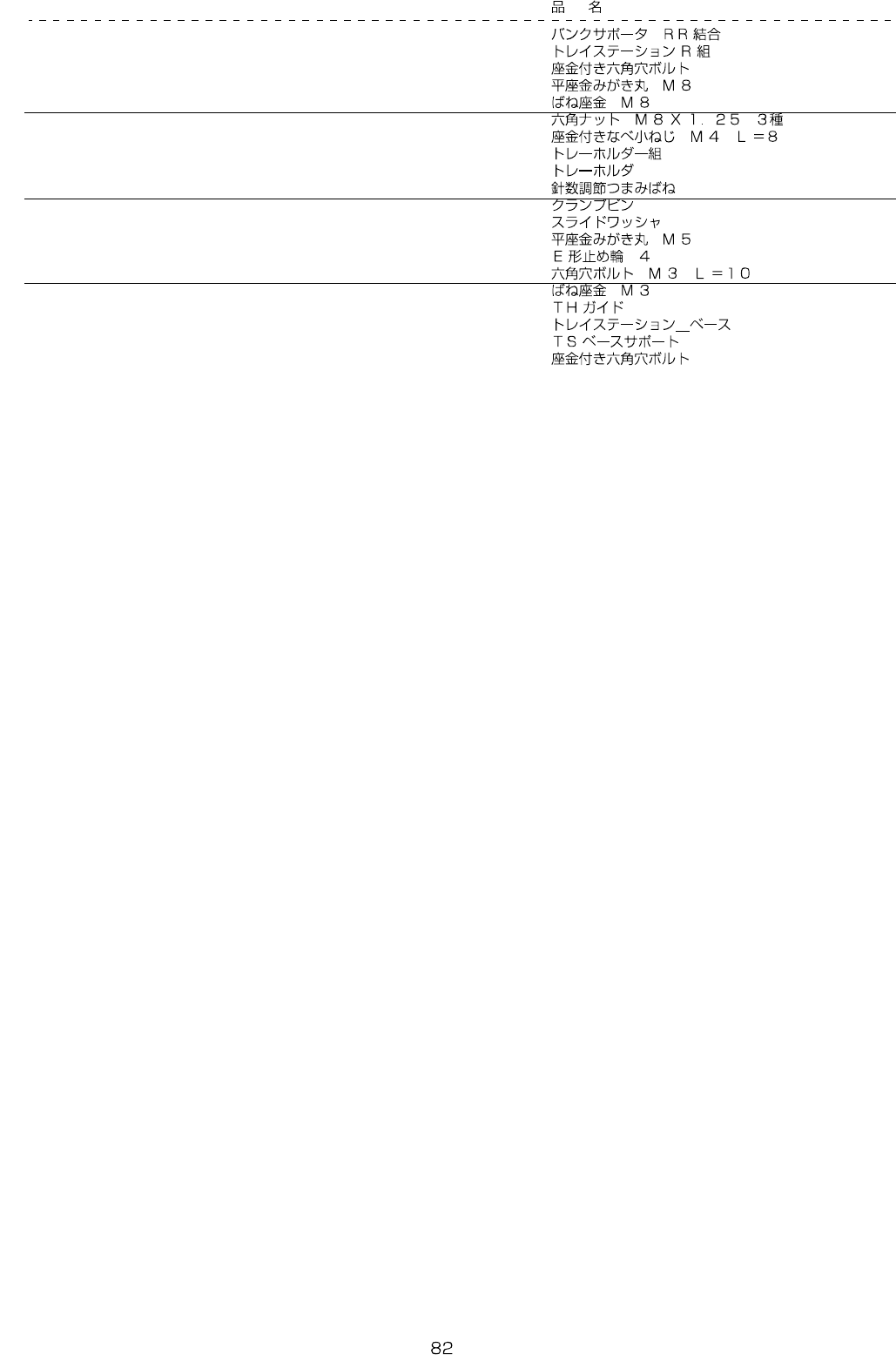

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00569 BANK SUPPORTER RR COMB. 1
2 401-35962 TRAY_STATION R_ASM 1
3 SL-6084092-TN BOLT (2)
4 WP-0841601-SC WASHER M8 (6)
5 WS-0820002-KN SPRING WASHER M8 (6)
6 NM-6080003-SC NUT M8X1.25 TYPE3 (4)
7 SL-4040891-SC SCREW M4X8 (4)
8 400-85744 TRAY_HOLDER_ASSY (12)
9 E7709-700-000 TRAY HOLDER (1)
10 B2626-372-000 SPRING (1)
11 E7307-700-000 CLAMP PIN (1)
12 400-76382 SLIDE WASHER (2)
13 WP-0531001-SC WASHER M5 (1)
14 RE-0400000-K0 E-RING 4 (1)
15 SM-6031002-TN SCREW M3 L=10 (4)
16 WS-0310002-KN SPRING WASHER M3 (4)
17 E7303-715-000 TH GUIDE (4)
18 401-36019 TS_BASE (1)
19 401-36300 TS_BASE_SUPPORT (1)
20 SL-6085002-TN BOLT (2)
- -

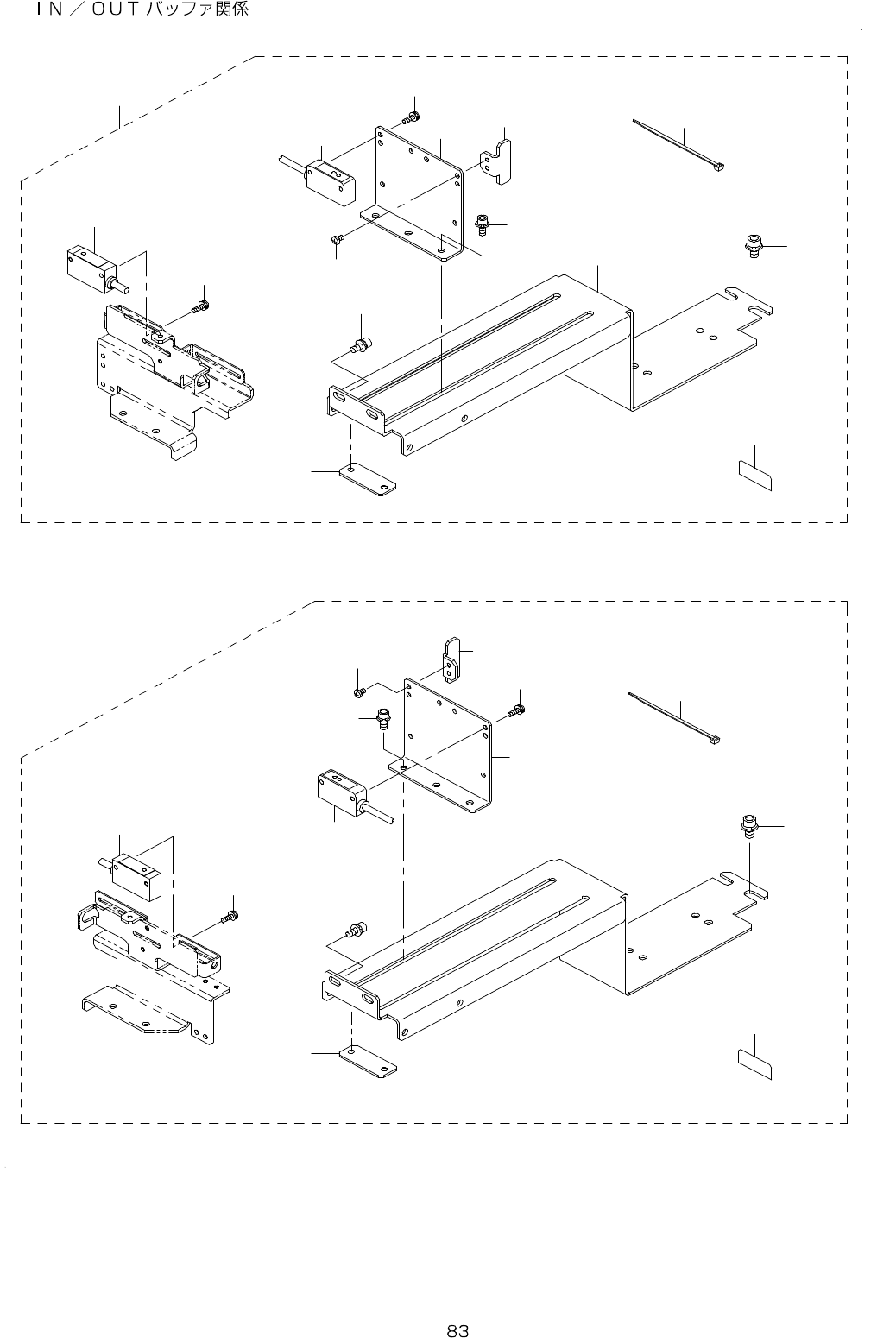

42. IN/OUT BUFFER COMPONENTS
6
2
4
2 4
2 6
5
1 1
3
8
1
2 5
1 6
1 7
1 8
2 2
9
2 3
2 1
1 0
1 3
1 4
1 2
2 7
2 9
2 8
1 5
3 0
7
1 9
2 0
