- - 45 . E FIX ED B ANK UN IT C OMPO N ENTS (2 ) 1 2 1 2 5 5 6 6 3 3 9 2 4 2 3 7 8 4 1 0 9 2 4 4 8 2 3 7 1 3 1 9 1 8 2 0 1 7 1 6 1 3 1 7 1 9 1 6 2 0 1 8 2 1 1 7 1 9 1 8 2 0 1 8 2 0 1 6 1 3 1 3 1 1 1 2 1 8 1 9 1 9 1 7 2…
- -

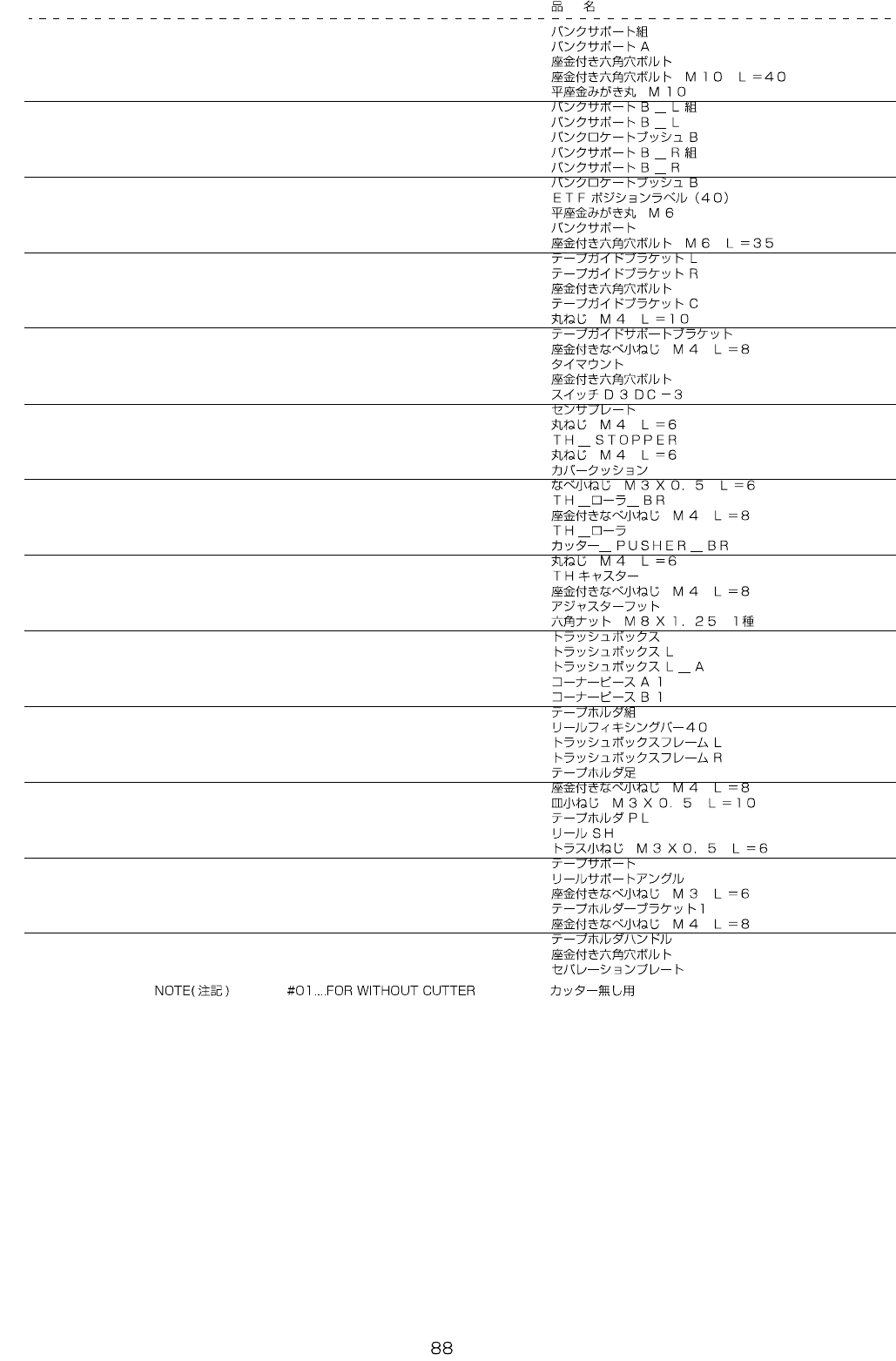

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-47411 BANK_SUPPORT_UNIT 1
2 401-09098 BANK SUP A (2)
3 SL-6083092-TN SCREW (16)
4 SL-6104042-TN SCREW M10 L=40 (8)
5 WP-1052001-SC WASHER 10 (8)
6 401-47412 BANK_SUP_B_L_ASM (2)
7 401-47413 BANK_SUP_B_L (1)
8 E2623-721-000 BANK LOCATE BUSH B (1)
9 401-47415 BANK_SUP_B_R_ASM (2)
10 401-47416 BANK_SUP_B_R (1)
11 E2623-721-000 BANK LOCATE BUSH B (1)
12 400-93594 ETF POSITION LABEL(40) 1
13 WP-0641601-SC WASHER 4
14 400-94376 BANK SUPPORT 2
15 SL-6063592-TN SCREW 4
16 400-94374 TAPE GUIDE BR L 1
17 400-94375 TAPE GUIDE BR R 1
18 SL-6061692-TN BOLT 4
19 400-94372 TAPE GUIDE BR C 1
20 SM-3041052-TN SCREW M4 L=10 4
21 400-94373 TAPE GUIDE SUPPORT BR 1
22 SL-4040891-SC SCREW M4 L=8 4
23 HX-0055700-00 TIE MOUNT 1
24 SL-6061292-TN SCREW 1
25 400-92511 SWITCH D3DC-3 2
26 400-93849 SENSOR_PLATE 2
27 SM-3040652-TN SCREW M4 L=6 4
28 401-10282 TH_STOPPER 2
29 SM-3040652-TN SCREW M4 L=6 4
30 400-49671 COVER CUSHION 2
31 SM-4030601-SC SCREW M3X0.5 L=6 2
32 401-10283 TH_ROLLER_BR 2
33 SL-4040891-SC SCREW M4X8 4
34 401-10284 TH_ROLLER 4
35 401-10288 CUTTER_PUSHER_BR 1
36 SM-3040652-TN SCREW M4 L=6 4
37 400-94860 TH_CASTER 2
38 SL-4040891-SC SCREW M4X8 8
39 400-98844 ADJUSTER_FOOT 2
40 NM-6080001-SC NUT M8X1.25 TYPE1 4
41 401-10289 TRASH BOX 1
42
#01
400-94513 TRASH BOX L 1
43 400-94959 TRASH_BOX_L_A (1)
44 400-25326 CORNER PIECE A1 (2)
45 400-25327 CORNER PIECE B1 (2)
46 401-14554 TAPE HOLDER ASM 1
47 401-10291 REEL FIXING BAR40 (2)
48 401-10286 TRASH BOX FRAME L (1)
49 401-10287 TRASH BOX FRAME R (1)
50 401-10290 TAPE HOLDER FOOT (4)
51 SL-4040891-SC SCREW M4X8 (16)
52 SM-1031001-SC SCREW M3X0.5 L=10 (20)
53 401-10285 TAPE HOLDER PL (2)
54 E1612-706-C00 REEL SH (20)
55 SM-0030601-SC SCREW M3X0.5 L=6 (8)
56 400-94863 TAPE SUPPORT (2)
57 400-84674 REEL SUPPORT ANGLE (8)
58 SL-4030691-SC SCREW M3 L=6 (16)
59 400-94862 TAPE HOLDER BR 1 (3)
60 SL-4040891-SC SCREW M4 L=8 (12)
61 400-94864 TAPE HOLDER HANDLE (1)
62 SL-6051092-TN BOLT (2)
63 400-84676 SEPARATION PLATE (20)
- -

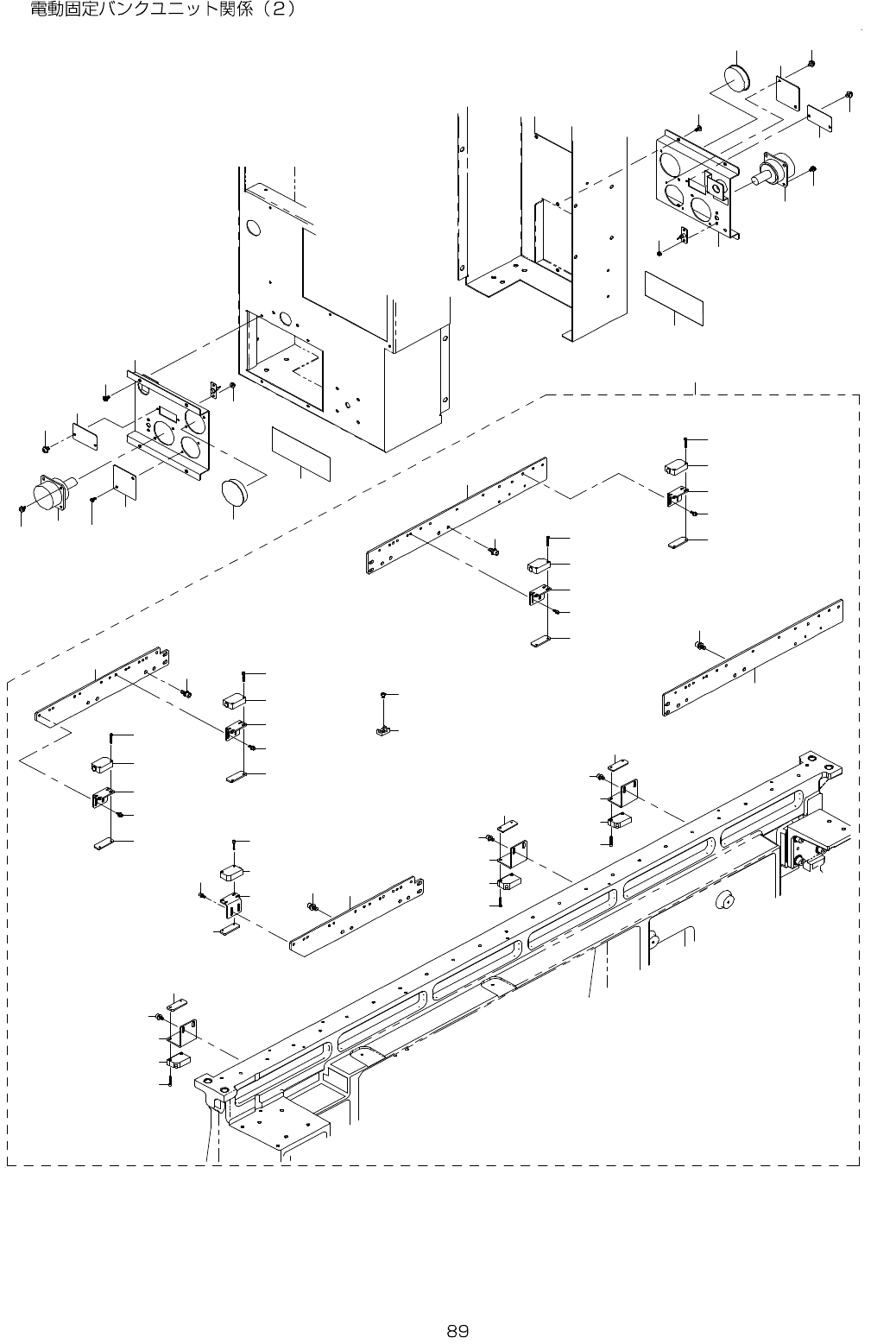

45. E FIXED BANK UNIT COMPONENTS (2)
1
2
1
2
5
5
6
6
3
3
9
2 4
2 3
7
8
4
1 0
9
2 4
4
8
2 3
7
1 3
1 9
1 8
2 0
1 7
1 6
1 3
1 7
1 9
1 6
2 0
1 8
2 1
1 7
1 9
1 8
2 0
1 8
2 0
1 6
1 3
1 3
1 1
1 2
1 8
1 9
1 9
1 7
2 1
2 0
1 7
1 4
1 5
1 2
1 1
2 0
1 8
2 0
2 2
2 1
1 9
1 9
1 8
1 6
2 2
2 0
2 2
2 1
1 9
1 8
- -

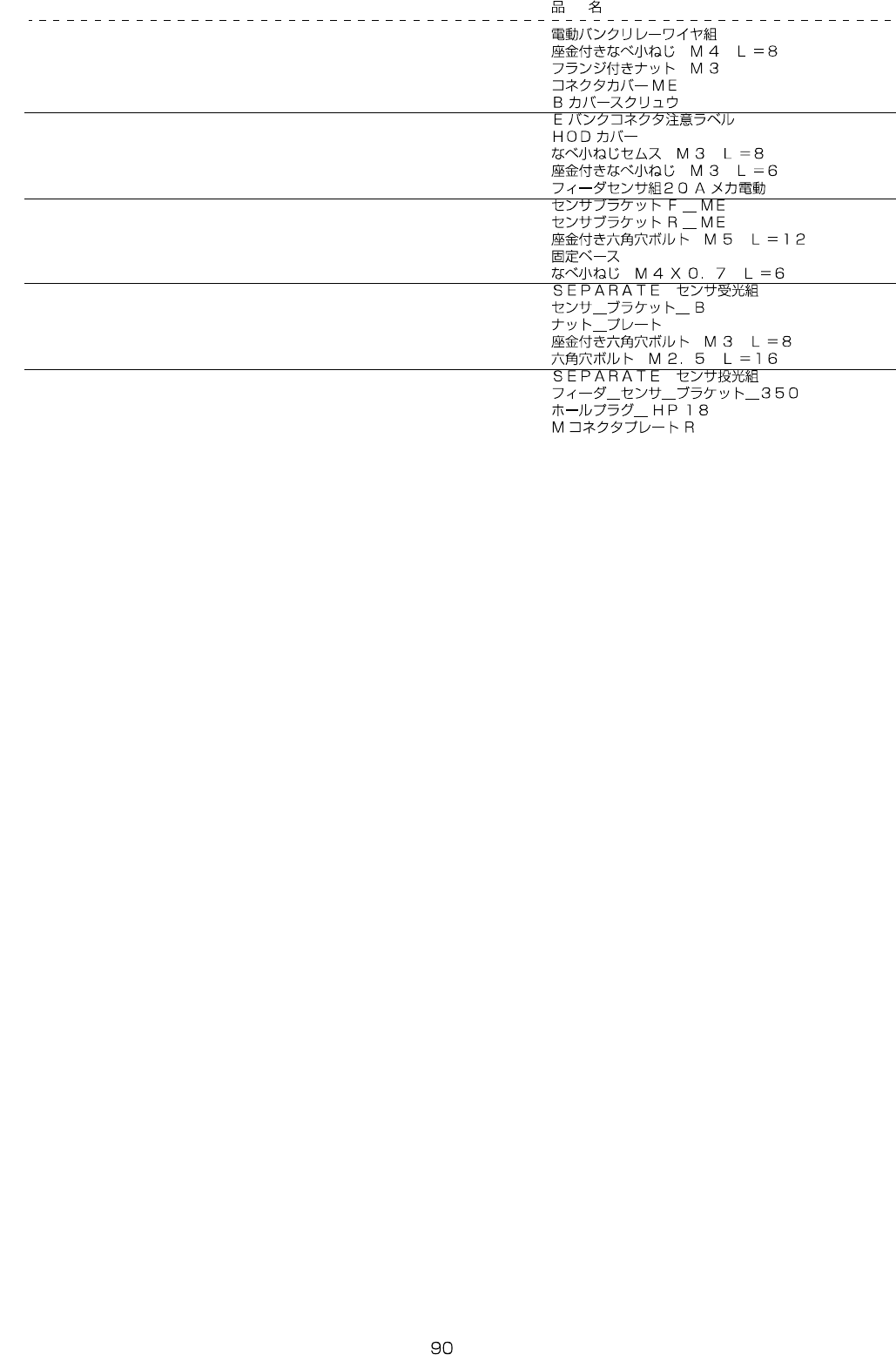

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-11734 ELEC BANK RELAY WIRE ASM 2
2 SL-4040891-SC SCREW M4 L=8 4
3 NM-3034000-SF FLANGE NUT M3 4
4 401-60009 CONNECTOR_COVER_ME 2
5 400-81751 B_COVER_SCREW 8
6 400-84938 E_BANK_CON_NOTICE_LABEL 2
7 401-47428 HOD_COVER 2
8 SL-4030891-SC SCREW M3X8 4
9 SL-4030691-SC SCREW M3 L=6 4
10 401-60137 FEEDER_SENS_ASM_20A_ME 1
11 401-60011 SENSOR_BR_F_ME (2)
12 401-60012 SENSOR_BR_R_ME (2)
13 SL-6051292-TN SCREW M5 L=12 (8)
14 HX-0029400-00 FIXED BASE (2)
15 SM-4040601-SC SCREW M4X0.7 L=6 (2)
16 401-29057 SEPARATE SENSOR RECEIVER ASM (4)
17 400-93991 S_BR_B (5)
18 400-93993 NUT_PLATE (8)
19 SL-6030892-TN SCREW M3 L=8 (16)
20 SM-6851602-TN SCREW M2.5X16 (16)
21 401-29058 SEPARATE SENSOR EMISSION ASM (4)
22 401-61648 FEEDER_SENSOR_BR_350 (3)
23 400-93799 HOLE_PLUGS_HP18 2
24 401-47198 M_CONNECTOR_PLATE_R 2
