MODEL GXH-1J 0501-001 114 フィーダカート部 FEEDER CAR T SECTION Fig. EB-2 リールホルダ、ハンドル Reel Holder ,Handle 162 167 105 167 162 153 154 102 109 101 1 10 1 10 155 1 12 149 155 101 109 151 161 166 138 136 154 133 154 108 166 161 151…
MODEL GXH-1J
1012-003
113
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301268026 COVER 1 829EB-010-101 211A8638
3 6301307800 COVER 1 829EB-010-103 211A9102
9 6301274676 BRACKET 2 829EB-010-109 211F8452
11 6301333342 FRAME 1 829EB-010-011 210B3826
17 6301307794 COVER 1 829EB-010-017 211A9101
23 6301256900 CASTER 2 829EB-010-023 2.26E+55
24
6301268460 MECH PARTS 2 829EB-010-024 226J1913
32
6301255088 MECH PARTS 1 829EB-010-032 226J1886
41
6301256313 SHAFT 2 829EB-010-041 213A1035
42
6301311333 SUPPORT 2 829EB-010-042 211K2996
43 6301329864 BRACKET 1 829EB-010-043 211F9218
44 6301329871 BRACKET 1 829EB-010-044 211F9219
46 6301264486 CASTER 2 829EB-010-046 226E0055
51
6300007619 BOLT,HEX-SCT 8 M4X8 221A0016
52
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
53
6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
54
6300007855 BOLT,HEX-SCT 16 M6X8 221A0040
55
6300007862 BOLT,HEX-SCT 4 M6X10 221A0041
56
6300008012 BOLT,HEX-SCT 4 M8X20 221A0056
57
4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
58 4111408007 SCR TRS 5X6 4 M5X6 TRS 221E0536
59 6300008708 BOLT,HEX 4 M6X30 HEX 221B0015
60
4111410703 NUT HEX 6 4 M6 221F0087
61
4111412905 WASHER SPR 4 8 SW4 221H0284
62
4111416705 WASHER SPR 5 4 SW5 221H0287
63
4111413001 WASHER SPR 6 18 SW6 221H0289
64
4111413100 WASHER SPR 8 4 SW8 221H0291
66
4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
67
6300010213 WASHER 2 BW4 221H0004
68
4111414107 WASHER V 5X10X1 4 FW5 221H0318
69
4111414305 WASHER V 6X12.5X1.6 18 FW6 221H0320
70
4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
EB-1
2Unit/1Machine
MODEL GXH-1J
0501-001
114

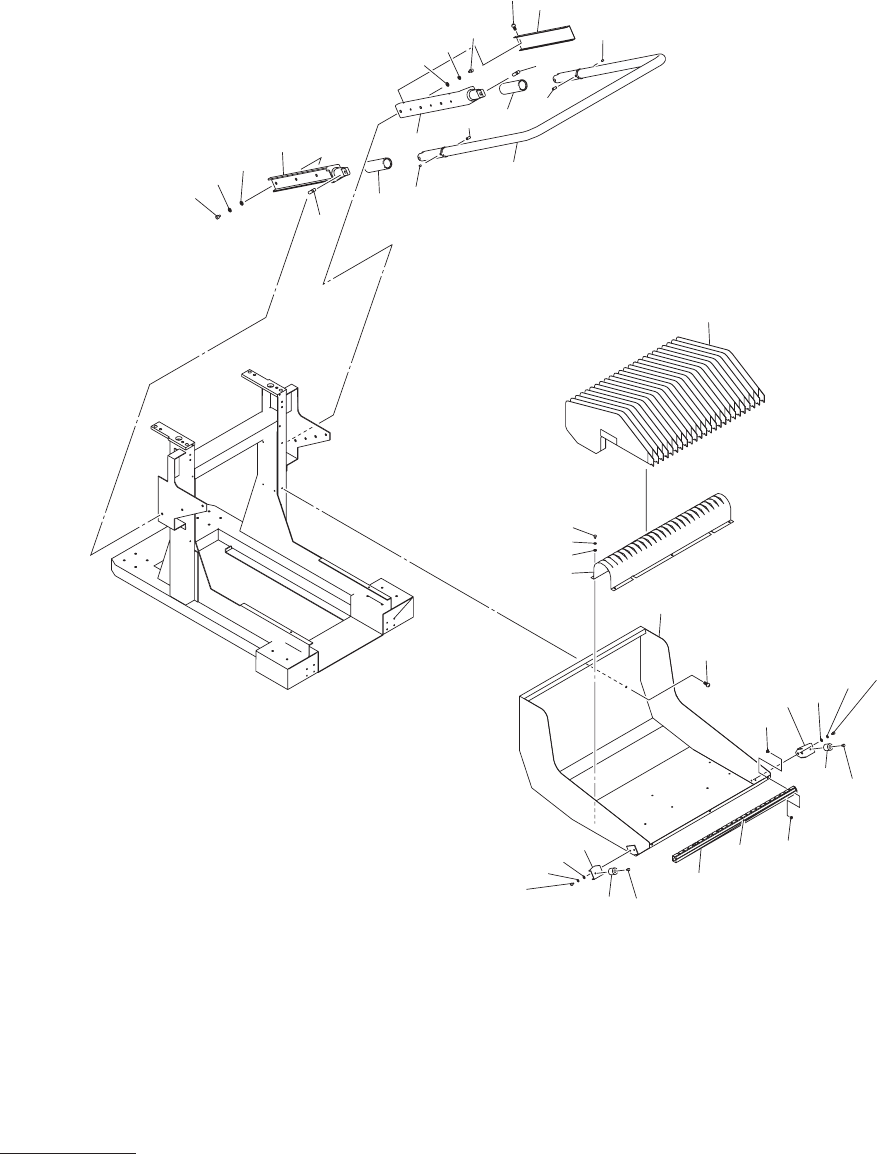

フィーダカート部
FEEDER CART SECTION
Fig. EB-2
リールホルダ、ハンドル
Reel Holder,Handle
162
167
105
167
162
153
154
102
109
101
110
110
155
112
149
155
101
109
151
161
166
138
136
154
133
154
108
166
161
151
106
152
156
140
152
106
108
166
153
161
151
139
MODEL GXH-1J
1012-003
115
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
101 6301255200 PIPE 2 829EB-010-001 216N0402
102 6301272153 COVER 1 829EB-010-102 211A8688
105 6301333687 BRACKET 1 829EB-010-005 211F9274
106 6301271514 SHOCK ABSORBER 2 829EB-010-106 222S0058
108
6301273280 BRACKET 2 829EB-010-108 211F8430
109 6301259253 PIN,HINGE 2 829EB-010-009 216D0442
1
10 6301256894 PLUNGER 2 829EB-010-010 226G0051
1
12 6301274447 HANDLE 1 829EB-010-002 226C0198
133
6301277936 BOX 1 829EB-010-033 211B0980
136 6301277981 PLATE 24 829EB-010-036 211D9681
138 6301264370 GUIDE 1 829EB-010-038 212A2055
139
6301272764 GUIDE 1 829EB-010-039 212A2068
140
6301260068 NAME PLATE,INDEX 1 829EB-010-040 6P460124
149
6301333694 BRACKET 1 829EB-010-049 211F9275
151 6300007602 BOLT,HEX-SCT 10 M4X6 221A0015
152
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
153
6300007855 BOLT,HEX-SCT 6 M6X8 221A0040
154
4110511708 SCR TRS 4X6 11 M4X6 TRS
221E0532
155 6300008975 SET SCREW 2 M6X6 SET 221C0010
156 4111410307 NUT HEX 4 3 M4 221F0082
161
4111412905 WASHER SPR 4 12 SW4 221H0284
162
4111413001 WASHER SPR 6 6 SW6 221H0289
166
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
167
4111414305 WASHER V 6X12.5X1.6 6 FW6 221H0320
EB-2
2Unit/1Machine
