MODEL GXH-1J
0501-001
125

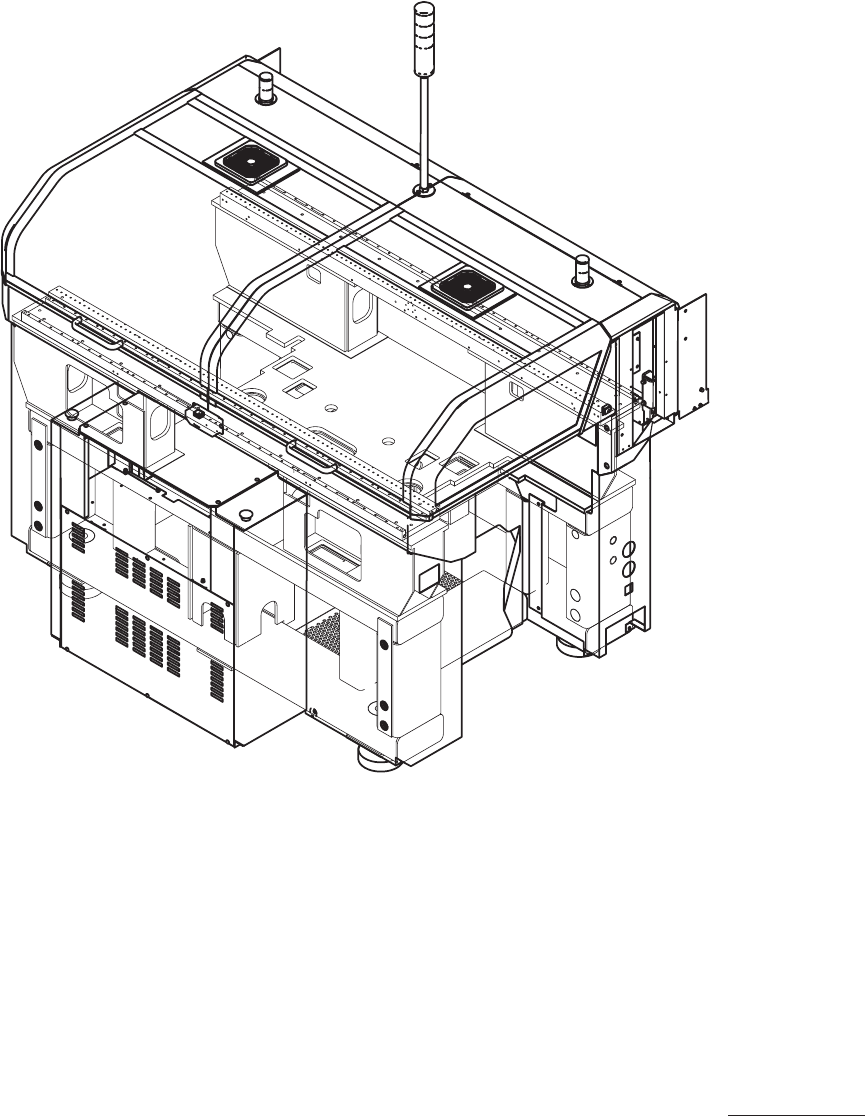

Fig. G
カバー部
COVER SECTION
MODEL GXH-1J
0909-002
126
カバー部
COVER SECTION

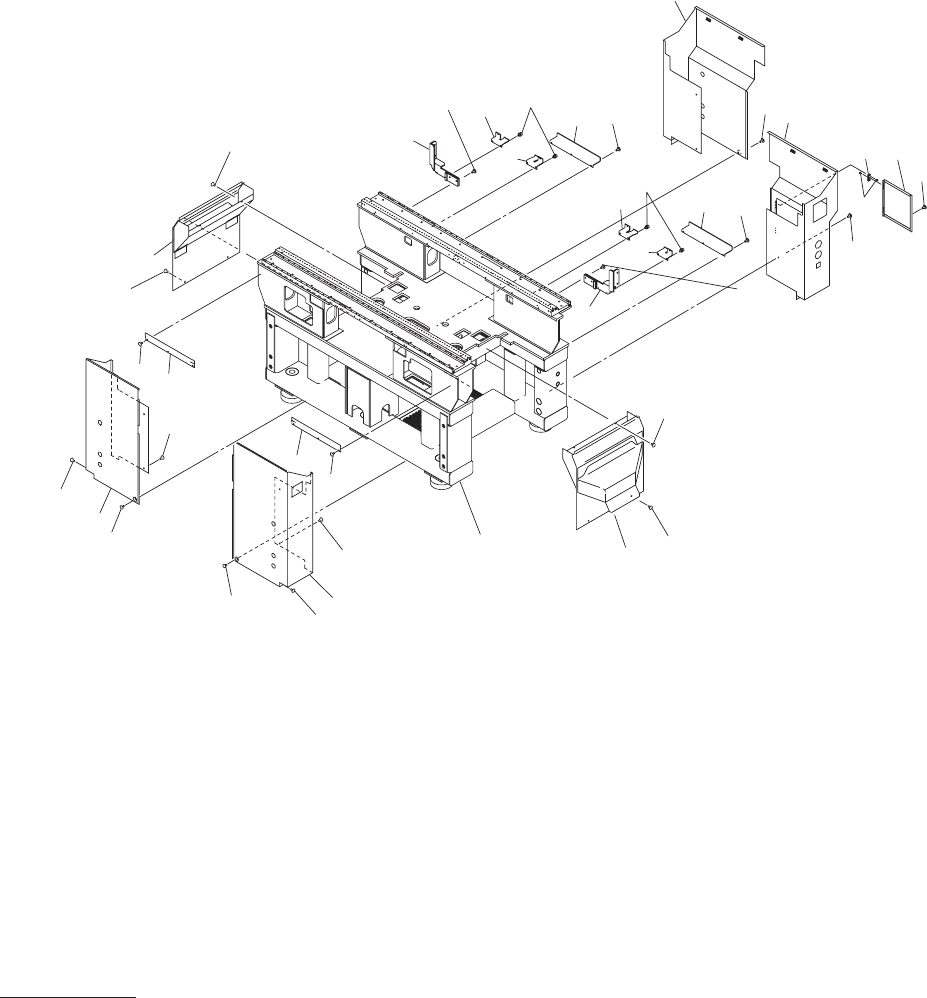

Fig. G-1
下カバー
Lower Cover
51
10
51
10
51
17
51
51
51
4
51
51
51
3
51
51
18
51
See Fig.B-1
Key No.1
45
22
35
36
25
24
21
44
43
55
54
.
53
.
34
52
51
51
37
55
54
.
53
.
58
57
.
56
.
58
57
.
56
.
51
51
23
23
MODEL GXH-1J
1012-003
127
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-1
3 6301369334 COVER 1 829G--010-103 211A9787
4 6301369341 COVER 1 829G--010-104 211A9788
10 6301363844 COVER 2 829G--010-110 21
1A9708
17 6301272443 PLATE 1 829G--010-117 21
1D9627
18 6301277882 PLATE 1 829G--010-118 21
1D9680
21 6301369402 BRACKET 1 829G--010-621 211F9721
22 6301369419 BRACKET 1 829G--010-622 211F9722
23 6301363899 BRACKET 2 829G--010-623 211F9638
24 6301363851 BRACKET 1 829G--010-624 211F9634
25 6301363868 BRACKET 1 829G--010-625 211F9635
34 6301339221 HINGE 2 829G--010-634 226F0158
35
6301363875 BRACKET 1 829G--010-635 211F9636
36 6301363882 BRACKET 1 829G--010-636 211F9637
37 6301339689 BOLT 1 829G--010-637 221E0339
43
6301368030 COVER 1 829G--010-613 211A9768
44 6301369358 COVER 1 829G--010-614 211A9789
45 6301368047 COVER 1 829G--010-615 211A9769
51 4111139109 SCR TRS 5X10 34 M5X10 TRS 221E0534
52 4110022600 SCR FLT 3X6 6 M3X6 FLT
221D0216
53 6300007732 BOLT,HEX-SCT 8 M5X8 221A0028
54
4111416705 WASHER SPR 5 8 SW5 221H0287
55
6300010220 WASHER 8 BW5 221H0005
56
6300007909 BOLT,HEX-SCT 4 M6X25 221A0045
57
4111413001 WASHER SPR 6 4 SW6 221H0289
58
4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
