P-250-003e - 第13页
MODEL GXH-1J 1012-003 11 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE B-1 1 6301379944 FRAME 1 829B--010-001 910B0859 14 6300425673 BOL T ,HEX 4 829B--010-014 221B0068 15 6300425697 NUT 4 829B--010-015 221G0…
MODEL GXH-1J
0501-001
10
本体部
MAIN BODY SECTION

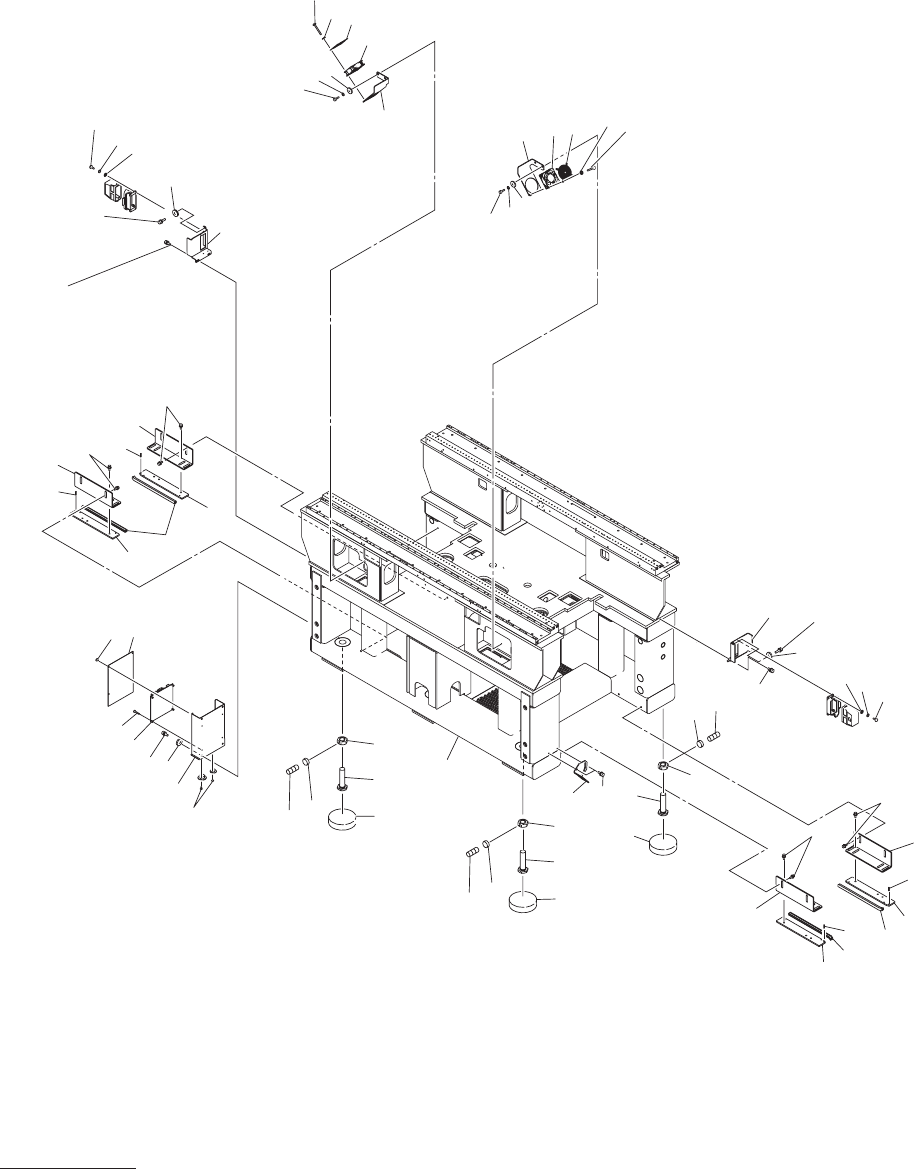

Fig. B-1
フレーム部
Frame Section
75
88
.
95
.
40
43
41
91
86
77
40
43
42
80
52
94
70
76
57
81
92
86
71
61
32
34
91
78
87
73
.
75
88
.
95
.
74
87
.
93
87
.
73
.
75
88
.
95
.
95
88
.
75
.
93
87
.
73
.
14
15
16
51
14
15
16
92
86
71
60
32
34
91
78
86
77
91
94
40
43
41
42
40
43
42
41
54
41
94
53
93
87
.
73
.
87
74
.
1
14
15
16
17
18
17
18
17
18
MODEL GXH-1J
1012-003
11
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
B-1
1 6301379944 FRAME 1 829B--010-001 910B0859
14 6300425673 BOLT,HEX 4 829B--010-014 221B0068
15
6300425697 NUT 4 829B--010-015 221G0054
16
6300892475 BLOCK,LOCATE 4 829B--010-016 216R0229
17
6300416770 COLLAR 4 829SA-010-013 216A0334
18
6300008975 SET SCREW 4 829SA-010-014 221C0010
32
6301405490 MOTOR,DC 2 M107,M108 829B--010-152 4M130025
34 6301399799 ACCESSORY,MOT-M 2 829B--010-154 23M00061
40
6301284217 BRACKET 4 829B--010-040 211F8545
41 6301290737 PLATE 4 829B--010-041 211D9790
42 6301260617 GUIDE 4 829B--010-042 212A2043
43
6300080735 SPRING PIN 12 829B--010-043 221J0031
51
6301250908 BRACKET 1 829B--010-051 211F8127
52 6301337227 BRACKET 1 829B--010-052 211F9349
53 6301268743 BRACKET 1 829B--010-053 211F8356
54 6301268750 BRACKET 1 829B--010-054 211F8357
57 6301271729 PLATE 1 829B--010-057 211D9621
60 6301272412 BRACKET(80FAN) 1 829B--010-060 211F8418
61 6301272429 BRACKET(80FAN) 1 829B--010-061 211F8419
70 6301242453 P.C.B,MOUNT 1 -U07 829B--010-070 4B1
11461
71 6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
73
6300007756 BOLT,HEX-SCT 10 M5X12 221A0030
74
6300007763 BOLT,HEX-SCT 2 M5X16 221A0031
75
6300008012 BOLT,HEX-SCT 16 M8X20 221A0056
76
4111130700 SCR PAN 3X16 4 M3X16 PAN 221E0491
77 4110423001 SCR PAN 4X10 8 M4X10 PAN 221E0500
78 4111132407 SCR PAN 4X30 8 M4X30 PAN 221E0506
80 4110022600 SCR FLT 3X6 6 M3X6 FLT
221D0216
81 4111407901 SCR TRS 3X4 4 M3X4 TRS 221E0528
86 4111412905 WASHER SPR 4 10 SW4 221H0284
87
4111416705 WASHER SPR 5 12 SW5 221H0287
88
4111413100 WASHER SPR 8 16 SW8 221H0291
91
4111414008 WASHER V 4X9X0.8 16 FW4 221H0315
92
6300010213 WASHER 8 BW4 221H0004
93
4111414107 WASHER V 5X10X1 6 FW5 221H0318
94
6300010220 WASHER 6 BW5 221H0005
95
4111414503 WASHER V 8X17X1.6 16 FW8 221H0323
MODEL GXH-1J
0501-001
12
本体部
MAIN BODY SECTION

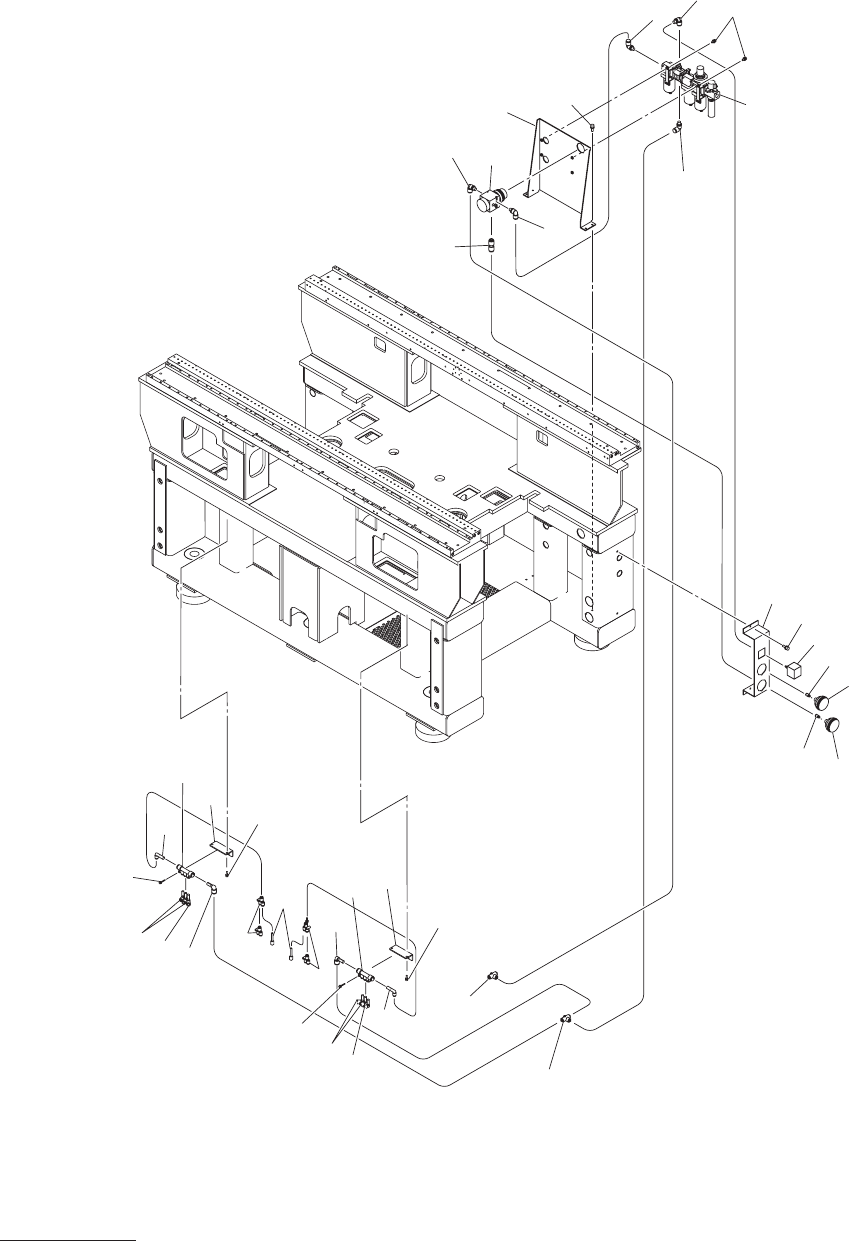

Fig. B-2
エアポート配管
Air Port Piping
137
168
163
.
155
.
110
136
131
136
135
134
135
133
133
146
145
131
132
167
162
.
154
.
151
161
.
166
.
167
162
.
154
.
134
151
161
.
166
.
112
132
109
167
162
.
153
.
142
140
110
167
162
.
152
.
143
141
138
107
138
126
137
110
139
112
144
