MODEL GXH-1J 0501-001 128 カバー部 COVER SECTION Fig. G-2 中カバー Middle Cover 163 . 171 . 172 163 . 171 . 172 163 . 171 . 172 121 121 166 125 126 127 See Fig.B-1 Key No.1 124 1 1 1 166 123 166 162 . 171 . 172 162 . 171 . 172 1…
MODEL GXH-1J
1012-003
127
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-1
3 6301369334 COVER 1 829G--010-103 211A9787
4 6301369341 COVER 1 829G--010-104 211A9788
10 6301363844 COVER 2 829G--010-110 21
1A9708
17 6301272443 PLATE 1 829G--010-117 21
1D9627
18 6301277882 PLATE 1 829G--010-118 21
1D9680
21 6301369402 BRACKET 1 829G--010-621 211F9721
22 6301369419 BRACKET 1 829G--010-622 211F9722
23 6301363899 BRACKET 2 829G--010-623 211F9638
24 6301363851 BRACKET 1 829G--010-624 211F9634
25 6301363868 BRACKET 1 829G--010-625 211F9635
34 6301339221 HINGE 2 829G--010-634 226F0158
35
6301363875 BRACKET 1 829G--010-635 211F9636
36 6301363882 BRACKET 1 829G--010-636 211F9637
37 6301339689 BOLT 1 829G--010-637 221E0339
43
6301368030 COVER 1 829G--010-613 211A9768
44 6301369358 COVER 1 829G--010-614 211A9789
45 6301368047 COVER 1 829G--010-615 211A9769
51 4111139109 SCR TRS 5X10 34 M5X10 TRS 221E0534
52 4110022600 SCR FLT 3X6 6 M3X6 FLT
221D0216
53 6300007732 BOLT,HEX-SCT 8 M5X8 221A0028
54
4111416705 WASHER SPR 5 8 SW5 221H0287
55
6300010220 WASHER 8 BW5 221H0005
56
6300007909 BOLT,HEX-SCT 4 M6X25 221A0045
57
4111413001 WASHER SPR 6 4 SW6 221H0289
58
4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320

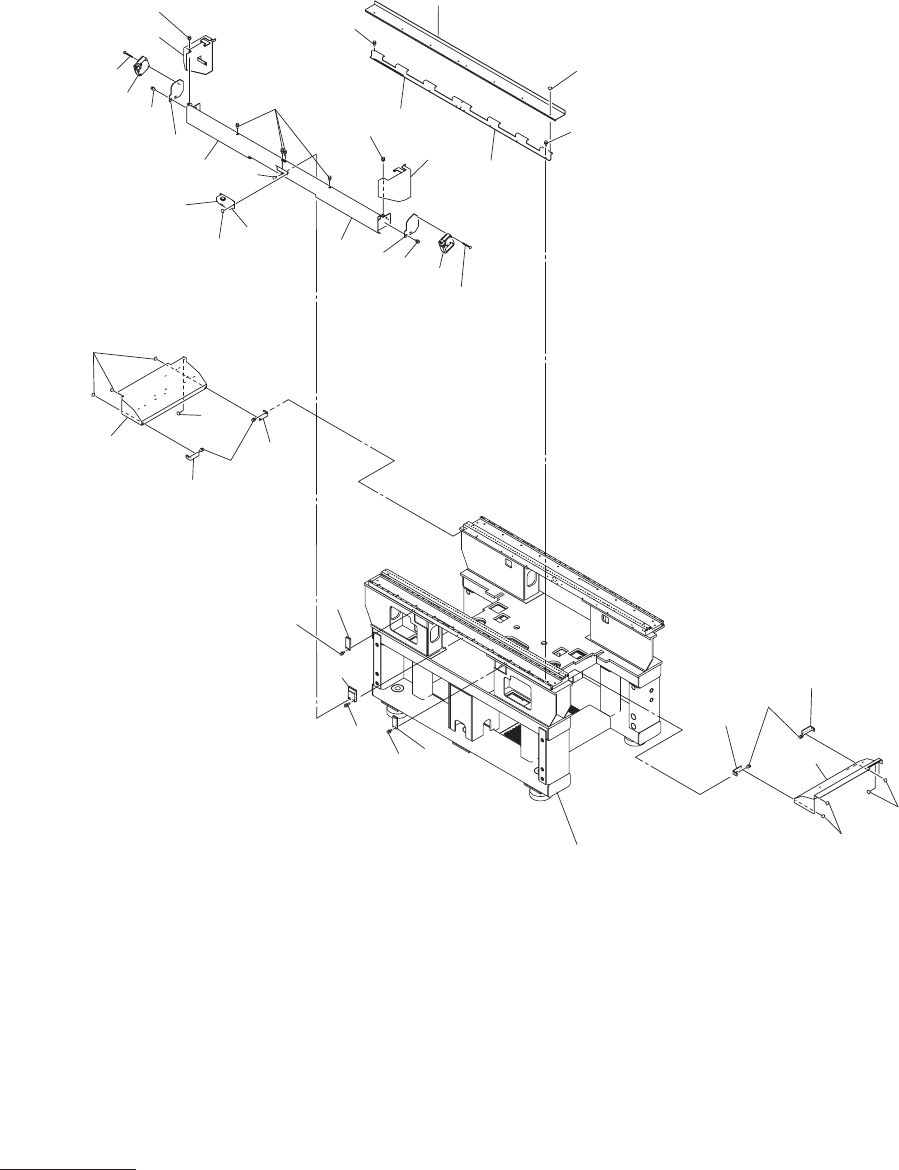

MODEL GXH-1J
0501-001
128
カバー部
COVER SECTION
Fig. G-2
中カバー
Middle Cover
163
.
171
.
172
163
.
171
.
172
163
.
171
.
172
121
121
166
125
126
127
See Fig.B-1
Key No.1
124
111
166
123
166
162
.
171
.
172
162
.
171
.
172
166
112
124
123
166
163
.
171
.
172
166
162
.
171
.
172
162
.
171
.
172
102
106
165
1
19
114
113
120
1
15
167
106
165
101
161
.
171
.
172
163
.
171
.
172
122
164
.
171
.
172
151
.
152
161
.
171
.
172
MODEL GXH-1J
1012-003
129
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-2
101 6301273501 COVER 1 829G--010-101 211A8702
102 6301273518 COVER 1 829G--010-102 211A8703
106 6301256184 SWITCH,LIMIT 2 -S131,-S132 829G--010-406 4S1F0051
111 6301341996 COVER 1 829G--010-111
211A9482
112 6301342009 COVER 1 829G--010-112 21
1A9483
113 6301360683 COVER 1 829G--010-113 21
1A9667
114 6301360690 COVER 1 829G--010-114 21
1A9668
115 6301274430 COVER 1 829G--010-115 21
1A8719
119 6301268521 PLATE 1 829G--010-119 21
1D9601
120 6301268538 PLATE 1 829G--010-120 211D9602
121 6301255682 BLOCK 2 829G--010-121 211G3424
122 6301283920 BLOCK 1 829G--010-122 211G3596
123 6301262727 BRACKET 2 829G--010-123 211F8300
124 6301262734 BRACKET 2 829G--010-124 211F8301
125 6301329932 COVER 1 829G--010-125 211A9397
126 6301329949 COVER 1 829G--010-126 211A9398
127 6301321967 COVER 1 829G--010-127 211A9300
151 6300002713 SWITCH,BUTTON 1 -S112 829G--010-151
4S1B0032
152 6300000382 ACCESSORY,SW 1 829G--010-152 23H20003
161
6300007732 BOLT,HEX-SCT 2 M5X8 221A0028
162
6300007749 BOLT,HEX-SCT 12 M5X10 221A0029
163
6300007756 BOLT,HEX-SCT 12 M5X12 221A0030
164
6300007763 BOLT,HEX-SCT 2 M5X16 221A0031
165
4111619007 SCR PAN 4X35 6 M4X35 PAN 221E0507
166 4111408007 SCR TRS 5X6 18 M5X6 TRS 221E0536
167 4111139109 SCR TRS 5X10 2 M5X10 TRS 221E0534
171 4111416705 WASHER SPR 5 28 SW5 221H0287
172
4111414107 WASHER V 5X10X1 28 FW5 221H0318
