MODEL GXH-1J 0501-001 164 電装ボックス L ELECTRICAL BOX L Fig. BL-6 ケーブル Cable 558 592 593 591 587 586 585 See Fig.BL-3 Key No.260 See Fig.BL-3 Key No.261 596 594 595 590 589 588 597 598
MODEL GXH-1J
1012-003
163
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BL-5
451 6301240374 BRACKET 1 829BL-010-071 211F8045
457 6301231587 MECH PARTS(RUBBER DAMPER) 4 829BL-010-160 226J1830
461
6301270487 UNIT,POWER 1 829BL-010-151 4U200260
462
6301244426 P.C.B,MOUNT 1 -U81 829BL-010-152 4B1
11470
463 6301231273 P.C.B,MOUNT 1 829BL-010-153 4B11
1445
464 6301230115 P.C.B,MOUNT 3 -U82,-U83,-U84
829BL-010-154 4B11
1437
465 6301231280 P.C.B,MOUNT 1 -U85 829BL-010-155 4B1
11446
466 6301230146 P.C.B,MOUNT 1 829BL-010-156 4B11
1438
467 6301251127 P.C.B,MOUNT 1 -U86 829BL-010-157 4B1
11475
469 6301256498 CORD(#KTF-049-01) 1 829BL-010-159 4W202793
470
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
471
4111416705 WASHER SPR 5 2 SW5 221H0287
472
4111414107 WASHER V 5X10X1 2 FW5 221H0318
473
4111410505 NUT HEX 5 4 M5 221F0107
MODEL GXH-1J
0501-001
164

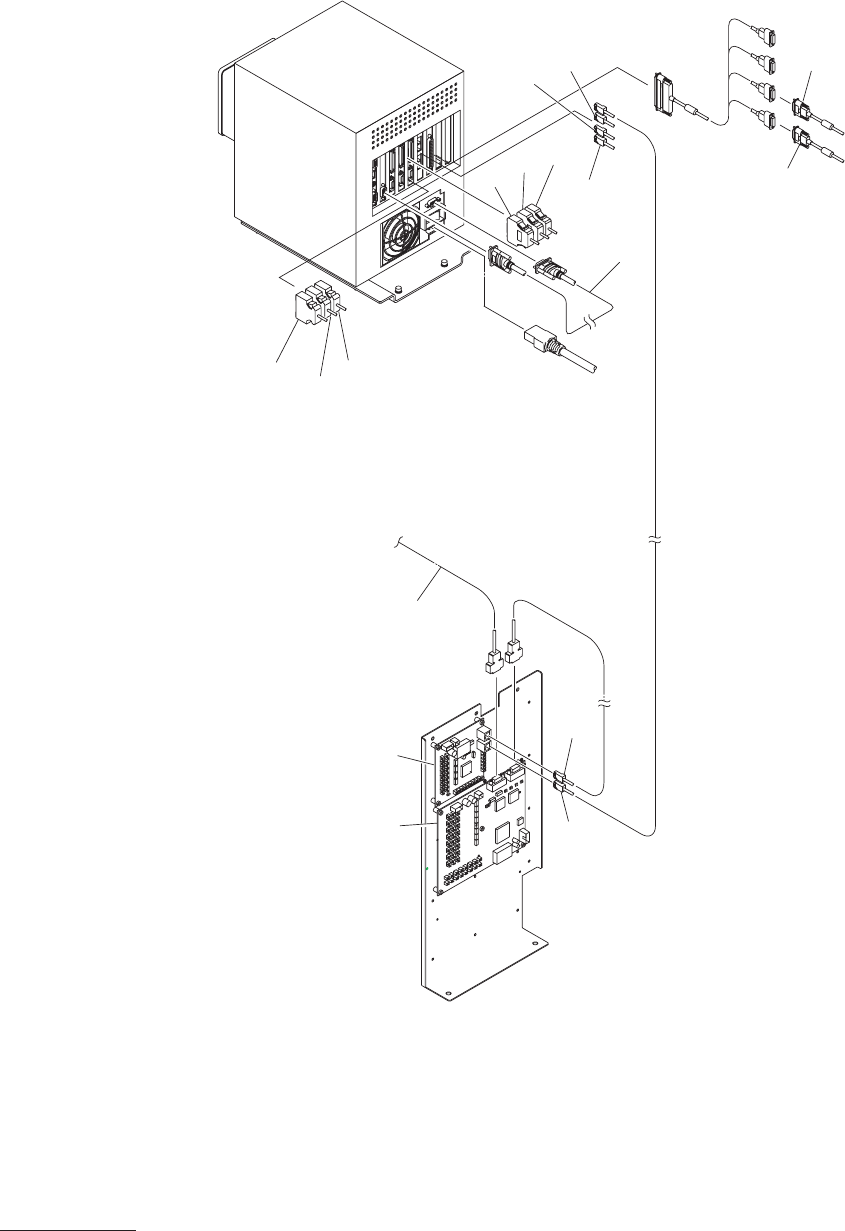

電装ボックス
L ELECTRICAL BOX L
Fig. BL-6
ケーブル
Cable
558
592
593
591
587
586
585
See Fig.BL-3
Key No.260
See Fig.BL-3
Key No.261
596
594
595
590
589
588
597
598
MODEL GXH-1J
1012-003
165
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BL-6
558 6301269856 CORD 1 829BL-010-158 4W202864
585 6301339573 CORD(CH1CN1-X1201) 1 829BL-010-185 4W203040
586
6301339580 CORD(X1202-X0503) 1 829BL-010-186 4W203041
587
6301339597 CORD(X0504-X0710) 1 829BL-010-187 4W203042
588
6301339627 CORD(CH1CN2-X0101) 1 829BL-010-188 4W203045
589
6301339658 CORD(CH2CN1-X0901) 1 829BL-010-189 4W203048
590
6301339665 CORD(CH2CN2-X0101) 1 829BL-010-190 4W203049
591
6301347028 CORD(X8203-) 1 829BL-010-281 4W203117
592 6301347035 CORD(X8303-) 1 829BL-010-282 4W203118
593 6301338309 CORD 1 829BL-010-283 4W202996
594
6301338798 CORD(X8301-X87C0) 1 829BL-010-284 4W203015
595
6301338736 CORD(X8401-X88C0) 1 829BL-010-285 4W203009
596
6301338620 CORD(X8201-X89C0) 1 829BL-010-286 4W202998
597
6301338170 CORD 1 829BL-010-287 4W202983
598
6301269818 CORD 1 829BL-010-288 4W202860
