MODEL GXH-1J 1012-003 175 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BN-1 52 6301337180 BRACKET 1 829BN-010-052 21 1F9346 53 6301268453 BRACKET 1 829BN-020-053 21 1F8353 55 6300863857 BREAKER 1 Q200 829BN-…
MODEL GXH-1J
0501-001
174
58
71
70
72
55
76
75
56
73
76
77
.
.
73
76
77
57
See Fig.BN-1
Key No.151
61
62
53
74
76
77
77
76
73
63
52
架台下
XY
サーボ電源部

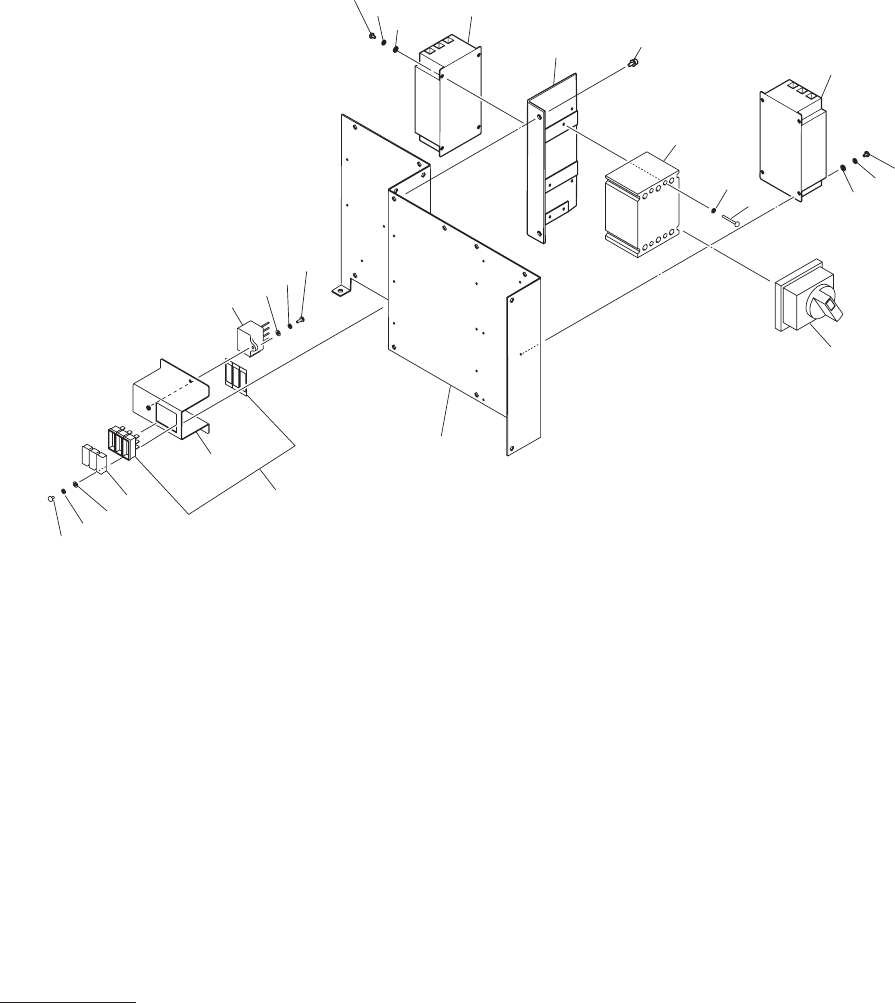

B UNDERFRAME XY SERVO
POWER SUPPLY SECTION B
Fig. BN-1
一次電源
Main Power Supply
MODEL GXH-1J
1012-003
175
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BN-1
52 6301337180 BRACKET 1 829BN-010-052 211F9346
53 6301268453 BRACKET 1 829BN-020-053 211F8353
55 6300863857 BREAKER 1 Q200 829BN-010-175 4S230067
56 6300835441 HANDLE 1 829BN-010-176 226C0141
57
6301187839 FILTER,NOISE 1 Z01 829BN-010-177 4F300073
58 6301168821 FILTER,NOISE 1 Z02 829BN-010-178 4F300071
61 4080310004 VARISTOR R.A.V-781BXZ-4 1 F200 829BN-010-251 4V320010
62 6301231303 FUSE,SPECIAL 3 F201,F202,F203
829BN-010-252 4S300006
63
6301231310 FUSE HOLDER 3 829BN-010-253 4J200032
70
6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
71
4111416705 WASHER SPR 5 2 SW5 221H0287
72
4111414107 WASHER V 5X10X1 2 FW5 221H0318
73
4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
74 4110423001 SCR PAN 4X10 1 M4X10 PAN 221E0500
75 4111132407 SCR PAN 4X30 2 M4X30 PAN 221E0570
76 4110081706 WASHER SPR 4 13 SW4 F 221H0283
77
4111192104 WASHER V 4X9X0.8 13 FW4 F 221H0314
MODEL GXH-1J
0501-001
176
162
151
171
.
170
171
.
170
171
.
170
172
172
175
174
173
153
152
168
165
193
190
192
161
160
155
190
154
156
159
158
167
166
157
190
190
190
181
167
163
164
172
175
174
173
175
174
173
架台下
XY
サーボ電源部
B UNDERFRAME XY SERVO
POWER SUPPLY SECTION B
Fig. BN-2
200V
電源２
200V Power Supply 2
