P-250-003e - 第180页
MEMO
MODEL GXH-1J
1012-003
177
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BN-2
151 6301337159 BRACKET 1 829BN-010-051 211F9343
152 6301340029 EM-CONTACTOR 1 -K33 829BN-010-152 4S2101
17
153 6301241586 COMP,CR 1 829BN-010-153 4F400025
154
6300634457 RELAY 1 -K48 829BN-010-154 4S200085
155 6300454260 SOCKET 1 829BN-010-155 4J120079
156
6300001020 BRACKET,WIRING 1 829BN-010-156 23N10001
157
6301340043 CIRCUIT PROTECTOR 1 -Q221 829BN-010-157 4S250322
158 6301340074 ACCESSORY,WIRING 1 829BN-010-158 23N30652
159
6301340081 ACCESSORY,WIRING 1 829BN-010-159 23N30653
160
6301340005 RAIL,WIRING 1 829BN-010-160 23N00101
161
6300911725 ACCESSORY,WIRING 1 829BN-010-161 23N30499
162
6301354026 TERMINAL 1 829BN-010-162 4J320229
163
6301340036 CIRCUIT PROTECTOR 1 -Q205 829BN-010-163 4S250321
164 6301340159 BREAKER 1 -Q206 829BN-010-164 4S230094
165 6301340166 EM-CONTACTOR 1 -K29 829BN-010-165 4S2101
18
166 6301340050 CIRCUIT PROTECTOR 2 -Q222,-Q223
829BN-010-166 4S250323
167
6301340067 ACCESSORY,WIRING 4 829BN-010-167 23N30651
168
6300769166 COMP,CR 1 829BN-010-168 4F400008
170
6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
171
4111416705 WASHER SPR 5 4 SW5 221H0287
172
6300010220 WASHER 4 BW5 221H0005
173
4111131400 SCR PAN 4X6 8 M4X6 PAN 221E0509
174 4110081706 WASHER SPR 4 8 SW4 F 221H0283
175
4111192104 WASHER V 4X9X0.8 8 FW4 F 221H0314
181
6301340012 BREAKER 1 -Q201 829BN-010-151 4S230093
190 6300911749 BRACKET,WIRING 6 829BN-010-170 23N10027
192
6301268712 TERMINAL 1 829BN-010-172 4J320186
193
6301339993 ACCESSORY,WIRING 1 829BN-010-173 23N30650
MEMO
MODEL GXH-1J
0501-001
179

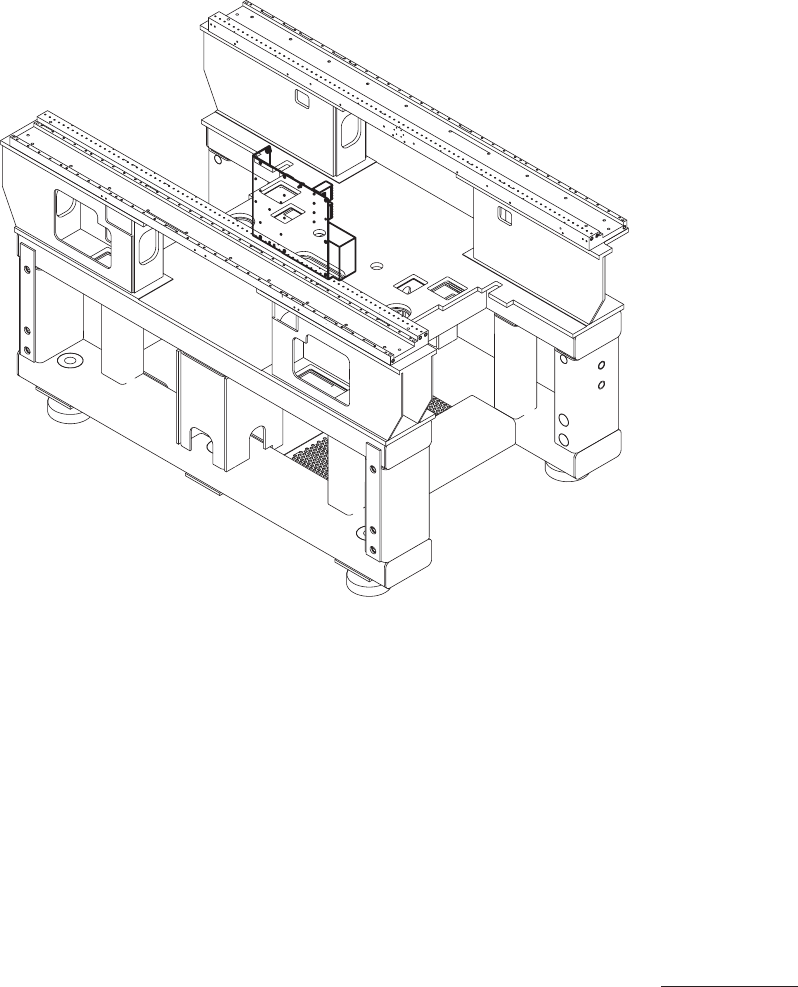

Fig. BP
架台下
XY
サーボ電源部
C UNDERFRAME XY SERVO
POWER SUPPLY SECTION C
