P-250-003e - 第193页
MODEL GXH-1J 1012-003 191 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BS-4 351 6301336046 BRACKET 1 829BS-010-077 21 1F9321 352 6301237435 BRACKET 2 829BS-010-078 21 1F8026 353 6301245102 P .C.B,MOUNT 1 U92…
MODEL GXH-1J
0501-001
190
電装ボックス

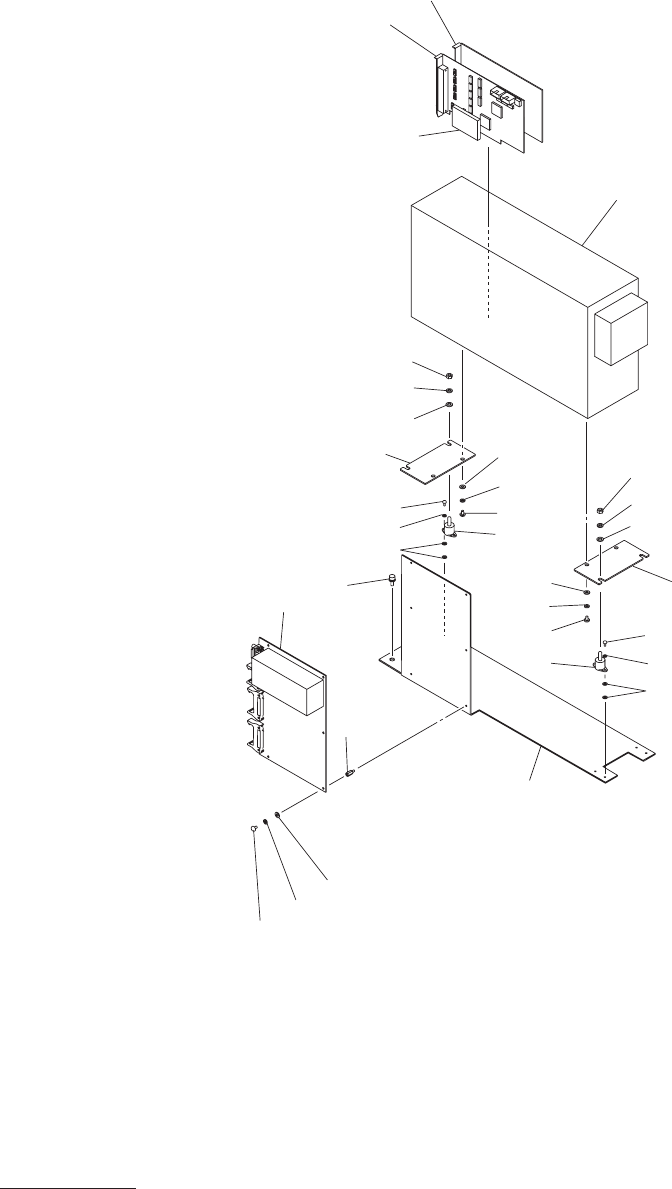

R ELECTRICAL BOX R
Fig. BS-4
認識ボード
Recognition Borad
351
374
377
382
357
358
375
378
383
353
356
360
354
352
373
381
382
377
374
375
378
383
352
382
377
374
362
373
376
381
376
362
371
.
378
..
373
MODEL GXH-1J
1012-003
191
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BS-4
351 6301336046 BRACKET 1 829BS-010-077 211F9321
352 6301237435 BRACKET 2 829BS-010-078 211F8026
353 6301245102 P.C.B,MOUNT 1 U92 829BS-010-167 4B1
11471
354 6301270340 P.C.B,MOUNT 1 U94 829BS-010-168 4B1
11484
356 6301249667 EQUIPMENT 1 U91 829BS-010-169 4U260244
357 6301246604 P.C.B,MOUNT 1 U95 829BS-010-173 4B1
11473
358 6300699616 ACCESSORY,P.C.B 6 829BS-010-176 23L10045
360
6301242675 UNIT,I/O 1 829BS-010-177 4U250158
362
6301235493 MECH PARTS(RUBBER DAMPER) 4 829BS-010-175 226J1834
371
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
373
4110418908 SCR PAN 3X6 8 M3X6 PAN 221E0497
374 4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
375 4111410505 NUT HEX 5 4 M5 221F0107
376
4110864408 WASHER SPR 3 8 SW3 F 221H0280
377
4110081706 WASHER SPR 4 10 SW4 F 221H0283
378
4111416705 WASHER SPR 5 6 SW5 221H0287
381
4111191909 WASHER V 3X7X0.5 16 FW3 F 221H0311
382 4111192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
383
4111414107 WASHER V 5X10X1 6 FW5 221H0318
MODEL GXH-1J
0501-001
192
電装ボックス

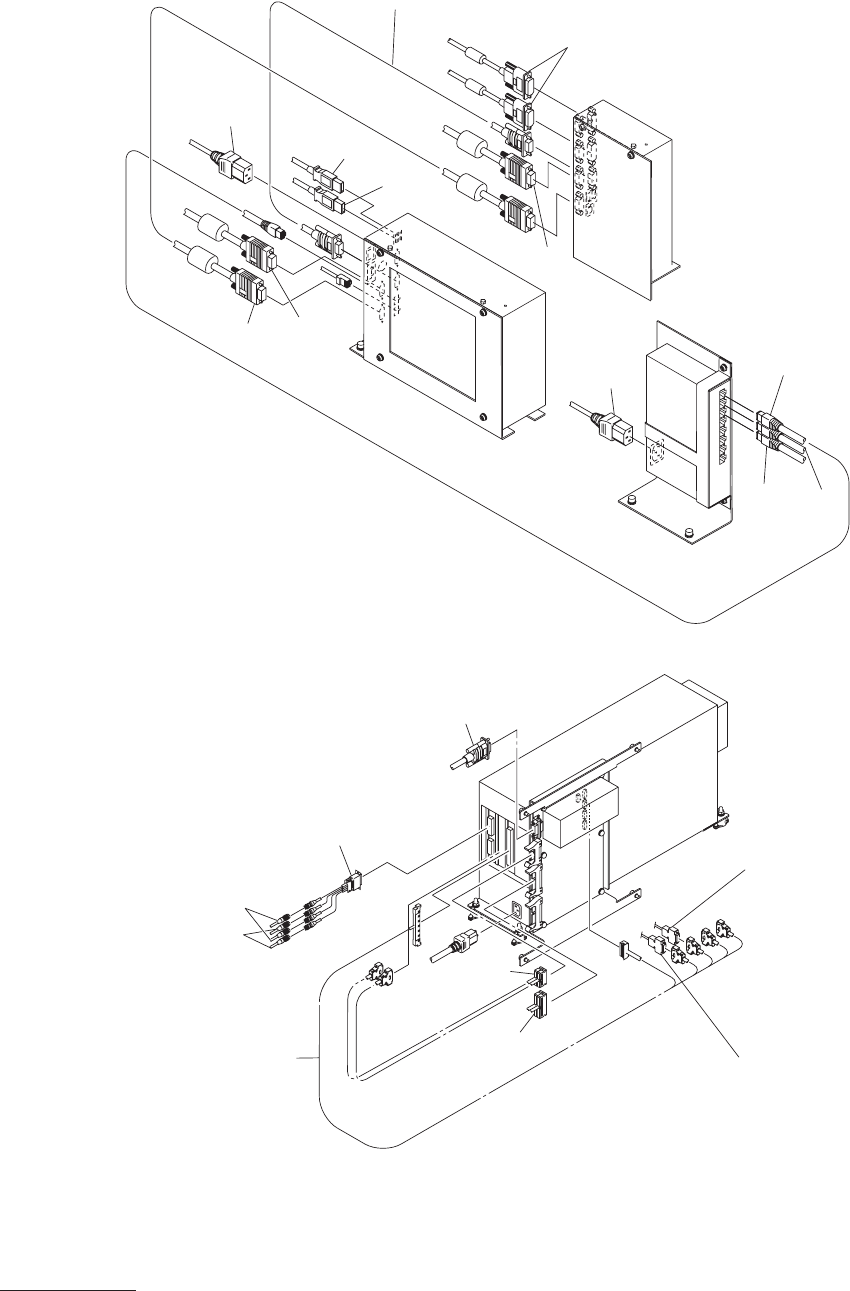

R ELECTRICAL BOX R
Fig. BS-5
ケーブル
Cable
487
486
481
482
483
489
See Fig BT-2
KeyNo.170
See Fig BU-2
KeyNo.170
488
464
465
458
455
457
456
464
469
470
468
464
466
