MODEL GXH-1J 0501-001 48 カッタ部 A CUTTER SECTION A Fig. DC-4 カッタ部 Cutter Section 362 355 . 321 354 353 357 318 333 337 316 346 310 354 358 345 351 301 367 362 . 355 . 312 331 324 335 367 362 . 355 . 366 361 . 352 . 336 307…
MODEL GXH-1J
1012-003
4747
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DC-3
208 6301245829 BUSH,BEARING 4 829DC-010-208 222A0150
209 6301245812 BUSH,BEARING 4 829DC-010-209 222A0149
212
6301371979 PLATE 1 829DC-010-012 211DA601
219 6301371986 BRACKET 1 829DC-010-019 211F9751
229 6301370613 BLOCK 2 829DC-010-029 211G4076
230 6301261164 SPRING,TORSION 2 829DC-010-060 222P0171
231
6301262017 PIN,HINGE 4 829DC-010-061 216D0443
232
6301262031 PIN,HINGE 2 829DC-010-062 216D0444
233
6301262062 PIN,HINGE 4 829DC-010-063 216D0445
234
6301374055 LEVER 1 829DC-010-064 216S2832
235
6301374062 LEVER 1 829DC-010-065 216S2833
237
6301367965 LEVER 1 829DC-010-067 216S2820
238
6301367989 LEVER 1 829DC-010-068 216S2821
239
6301374505 LEVER 1 829DC-010-069 216S2838
240
6301372525 LEVER 1 829DC-010-070 216S2831
244
6301279329 MECH PARTS 2 829DC-010-074 226J1934
251
6300007497 BOLT,HEX-SCT 4 M3X4 221A0004
252
6300007503 BOLT,HEX-SCT 4 M3X6 221A0005
253
6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
256
4111412806 WASHER SPR 3 4 SW3 221H0281
257
4111412905 WASHER SPR 4 4 SW4 221H0284
261
4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
262
4111415906 WASHER F 4X8X0.8 4 FWS4 221H0340
MODEL GXH-1J
0501-001
48

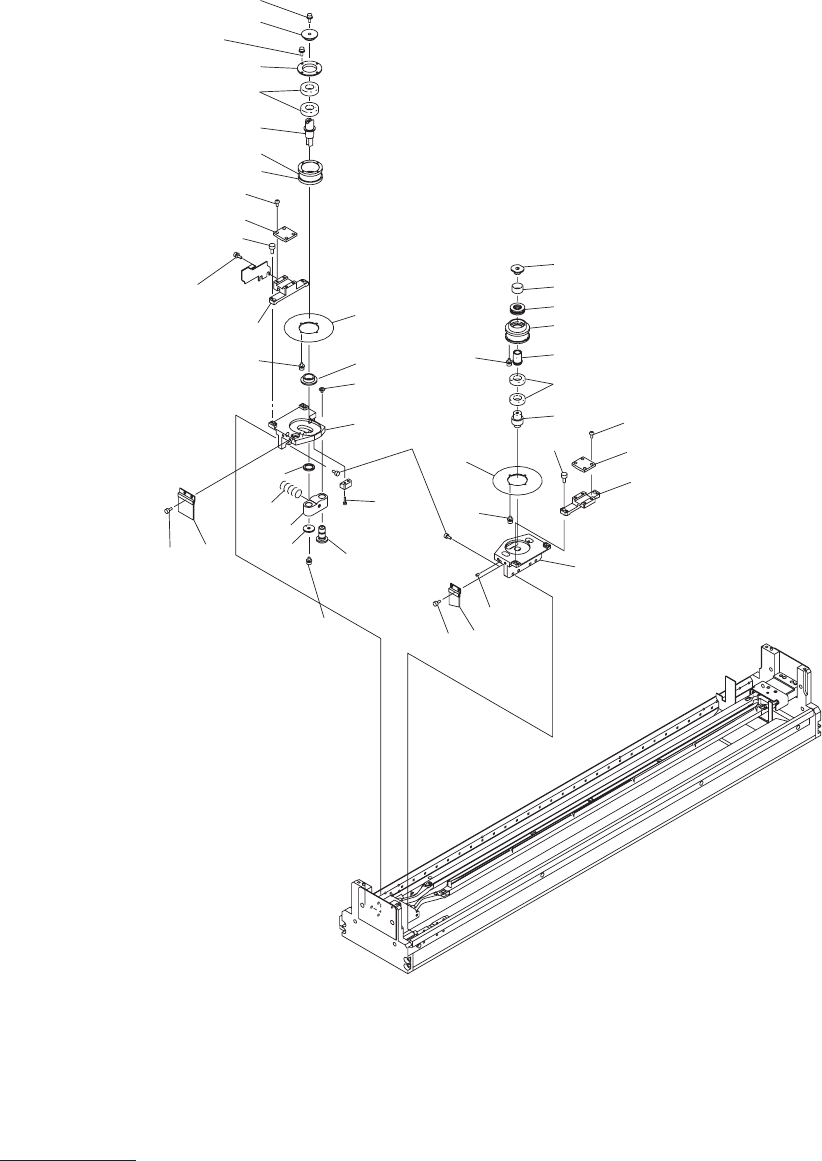

カッタ部
A CUTTER SECTION A
Fig. DC-4
カッタ部
Cutter Section
362
355
.
321
354
353
357
318
333
337
316
346
310
354
358
345
351
301
367
362
.
355
.
312
331
324
335
367
362
.
355
.
366
361
.
352
.
336
307
340
330
348
322
359
354
301
351
311
313
331
357
324
338
305
347
306
319
334
339
325
MODEL GXH-1J
1012-003
4949
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DC-4
301 6301369648 DISK 2 829DC-010-071 213D1218
305 6301099491 BEARING,RADIAL 2 829DC-010-205 222D0376
306
6301354279 BEARING,THRUST 1 829DC-010-206 222E0017
307
6301369440 BEARING,RADIAL(ANGYURA) 2 829DC-010-207 222D0412
310
6301369716 BASE 1 829DC-010-050 210A2376
31
1 6301369747 BASE 1 829DC-010-051 210A2379
312
6301369723 BASE 1 829DC-010-052 210A2377
313
6301369730 BASE 1 829DC-010-053 210A2378
316
6301366678 LEVER 1 829DC-010-066 216S2815
318
6301359762 SPRING,COMP 1 829DC-010-058 222M1373
319
6301367088 SPRING,COMP 1 829DC-010-059 222M1378
321
6301364599 COVER 1 829DC-010-221 211A9719
322 6301365527 COVER 1 829DC-010-222 211A9733
324 6300690644 BOLT 8 829DC-010-224 221E0129
325
6301288901 MACHINE SCREW 4 829DC-010-225 221D0172
330
6301376028 SEAL 1 829DC-010-230 226A0256
331
6301262635 BLOCK 2 829DC-010-031 211G3470
333 6300010206 WASHER 1 829DC-010-233 221H0003
334
6301365084 HOLDER 1 829DC-010-034 216B1514
335
6301369808 HOLDER 1 829DC-010-035 216B1519
336
6301365565 HOLDER 1 829DC-010-036 216B1516
337
6301364674 SHAFT 1 829DC-010-037 213A1197
338 6301365060 SHAFT 1 829DC-010-038 213A1200
339
6301365077 SHAFT 1 829DC-010-039 213A1201
340
6301365541 SHAFT 1 829DC-010-040 213A1205
345
6301364568 GUIDE 1 829DC-010-045 212A2212
346
6301364575 GUIDE 1 829DC-010-046 212A2213
347
6301369990 GUIDE 1 829DC-010-047 212A2225
348
6301370002 GUIDE 1 829DC-010-048 212A2226
351
6300083507 BOLT,HEX-SCT 8 M2X4 221A0121
352
6300083507 BOLT,HEX-SCT 4 M2X4 221A0121
353
6300876659 BOLT,HEX-SCT 2 M2X10 221A0245
354
6300007503 BOLT,HEX-SCT 20 M3X6 221A0005
355
6300007503 BOLT,HEX-SCT 2 M3X6 221A0005
356
6300007510 BOLT,HEX-SCT 2 M3X8 221A0006
357
6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
358
4111407901 SCR TRS 3X4 1 M3X4 TRS 221E0528
359 6300008883 SET SCREW 1 M3X4 SET 221C0001
361 4111412608 WASHER SPR 2 4 SW2 221H0277
362
4111412806 WASHER SPR 3 4 SW3 221H0281
366
4111416903 WASHER V 2X5X0.3 4 FW2 221H0308
367
4111413902 WASHER V 3X7X0.5 3 FW3 221H0312
