MODEL GXH-1J 1012-003 89 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE N-8 704 6301315669 BLOCK 1 829N--010-104 21 1G3758 705 6301232652 PLA TE 2 829N--010-105 21 1D9252 707 6301315690 SHAFT 4 829N--010-107 2…
MODEL GXH-1J
0501-001
88

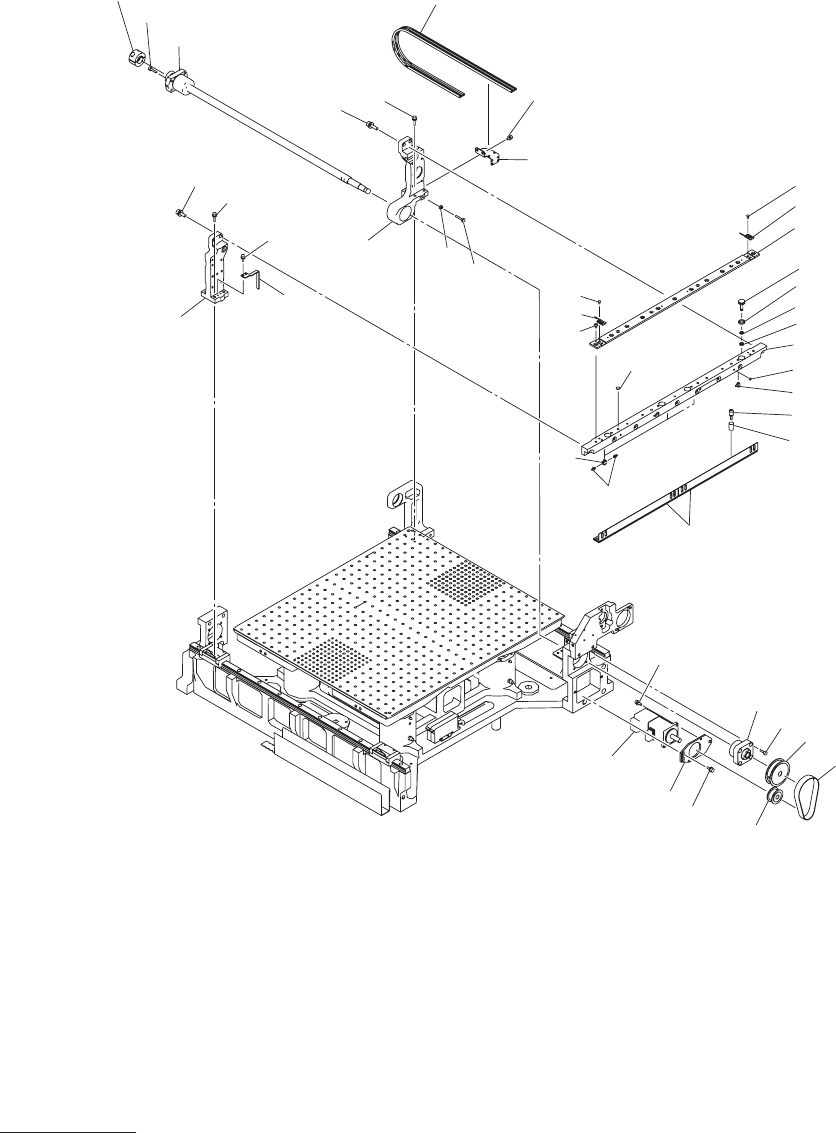

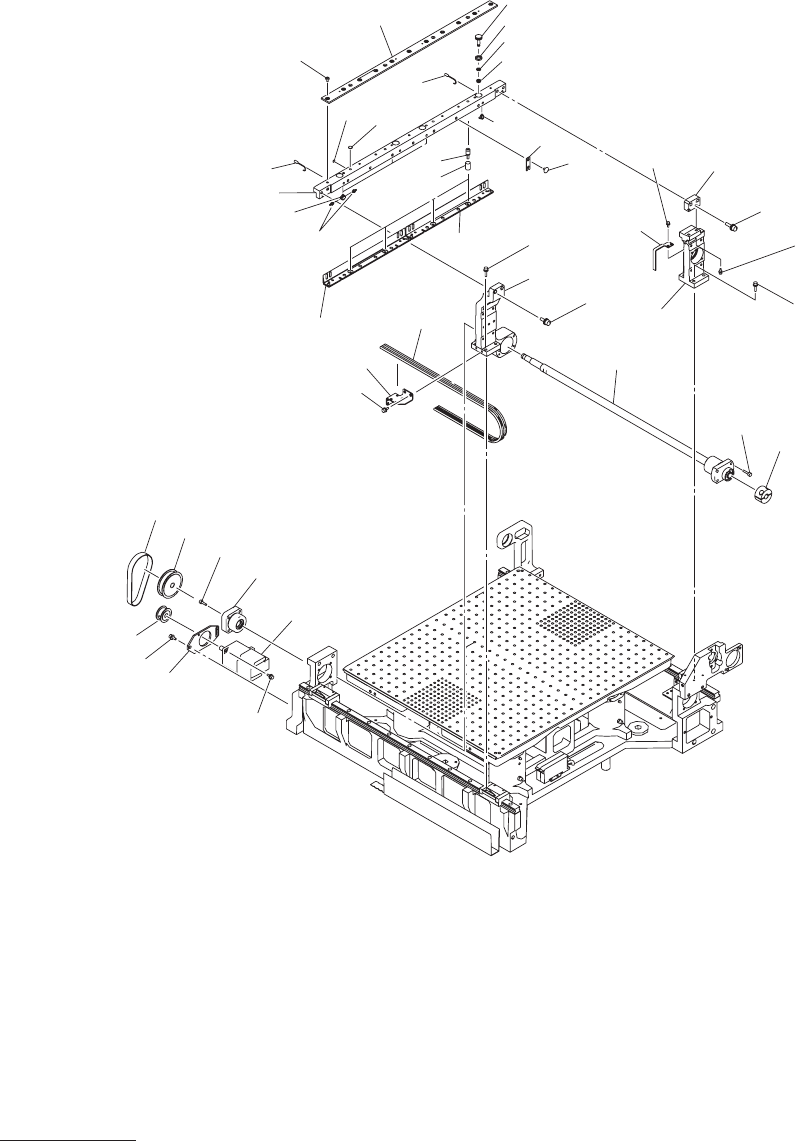

コンベア部
CONVEYOR SECTION
Fig. N-8 NA
シュート１
NA Chute 1
754
.
767
.
772
759
.
768
.
773
760
.
769
.
774
753
.
767
.
772
758
.
767
.
772
758
.
767
.
772
707
714
715
716
765
710
721
711
712
727
718
717
712
720
719
742
732
736
724
740
741
749
755
750
746
733
704
760
.
769
.
774
757
748
725
709
705
705
722
729
751
.
766
.
771
738
759
.
768
.
773
MODEL GXH-1J
1012-003
89
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-8
704 6301315669 BLOCK 1 829N--010-104 211G3758
705 6301232652 PLATE 2 829N--010-105 211D9252
707 6301315690 SHAFT 4 829N--010-107 213A1126
709 6301233253 SPRING,COMP 4 829N--010-109 222M1297
71
1 6301236933 GUIDE,SLIDE 4 829N--010-111
222C0106
712 6301237022 SENSOR,PELEC 2 -B4201,-B4202
829N--010-112 23G00241
714 6300701838 SEAL 4 829N--010-114 226A0124
715 6300033212 SEAL 4 829N--010-115 226A0003
716 6300701845 SEAL 4 829N--010-116 226A0125
717 6301236889 CAP 4 829N--010-117 217A0128
718 6301241371 BOLT,HEX-SCT(BUTTON HEAD) 11 829N--010-118 221A0319
719
6300484656 PIPE FITTINGS 6 829N--010-119 225F0261
720 6300769029 PIPE FITTINGS 3 829N--010-120 225F0330
721
6300465556 PIPE FITTINGS 1 829N--010-121 225F0253
722
6301274478 TUBE 1 829N--010-232 225G0275
724
6301236445 PULLEY,TIMING 1 829N--010-304 223Q0540
725
6301246352 COLLAR 1 829N--010-235 216A1127
727 6301315539 PLATE 1 829N--010-102 211DA002
729 6301316390 SPACER 5 829N--010-439 211E0897
732 6301336664 BLOCK 1 829N--010-202 211G3899
733 6301365954 BLOCK 1 829N--010-203 211G4038
736 6301337135 BELT,TIMING 1 829N--010-306 223L0283
738
6301360362 PLATE 1 829N--010-238 211DA512
740 6301337029 BRACKET 1 829N--010-210 211F9334
741 6301241340 MOTOR,AC-SERVO 1 -M56 829N--010-231 4M150196
742 6301358352 BRACKET 1 829N--010-212 211F9568
746 6301337050 BRACKET 1 829N--010-216 211F9337
748 6301236599 BALL SCREW 1 829N--010-218 223B0350
749
6301236698 BEARING,UNIT 1 829N--010-219 222F0089
750
6301236452 PULLEY,TIMING 1 829N--010-305 223Q0541
751
6300007510 BOLT,HEX-SCT 2 M3X8 221A0006
753
6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
754
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
755
6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
757
6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
758
6300007657 BOLT,HEX-SCT 8 M4X16 221A0020
759
6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
760
6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
765
4111408007 SCR TRS 5X6 1 M5X6 TRS 221E0536
766 4111412806 WASHER SPR 3 2 SW3 221H0281
767
4111412905 WASHER SPR 4 12 SW4 221H0284
768
4111416705 WASHER SPR 5 4 SW5 221H0287
769
4111413001 WASHER SPR 6 4 SW6 221H0289
771
4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
772
4111414008 WASHER V 4X9X0.8 12 FW4 221H0315
773
4111414107 WASHER V 5X10X1 4 FW5 221H0318
774
4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
MODEL GXH-1J
0501-001
90
コンベア部
CONVEYOR SECTION
Fig. N-9 NA
シュート２
NA Chute 2
805
859
.
868
.
873
854
.
867
.
872
860
.
869
.
874
858
.
867
.
872
851
.
866
.
871
860
.
869
.
874
853
.
867
.
872
946
863
862
834
865
838
806
807
815
816
814
811
809
821
829
817
838
865
818
803
820
819
841
840
824
850
855
849
836
825
857
848
858
.
867
.
872
822
831
843
