User Manual SIPLACE HS-50 3 What to do when ...
Software Version SR.50x.xx 01/2006 US Edition 3.8 How to avoid track errors
111
3.8 How to avoid track errors
3.8.1 General information
Æ Make sure that the areas around the feeder modules are clean and that there are no loose
components in the feeder area or under the feeder modules.
Æ Ensure that the supporting surfaces of the feeder modules, and particularly the magnetic rails
of the component tables, are clean and level.
Æ Refill promptly with components.
Æ Splice the tapes promptly. This generally means that you are to prepare the splicing material
when there is still approximately 1.5 m of tape on the reel.
Æ Handle the feeder modules carefully when you insert them into or remove them from the com-
ponent table as these are high-precision devices.
Æ When you insert the feeder modules, make sure that you do not accidentally press one of the
program keys. If you do, you could change the advance from 4 mm to 2 mm on
8 mm S feeder modules, for example.
Æ Close the flaps of the feeder modules because they can be easily damaged when open.
Æ For 8 mm S feeder modules, make sure that the components are picked up from the correct
position, depending on their sizes (see the following example).

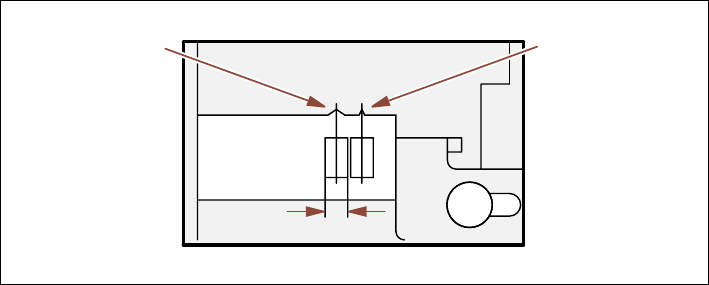

Example for 8mm S feeder modules 3
3
Fig. 3.8 - 1 Pick-up position for components (> 3 mm, </=
3 mm)
Æ Check to see if all the plugs of the feeder modules are plugged in to the correct sockets.
Pick-up position
Pick-up position
> 3 mm
for components
for components
Width
≤ 3 mm
3 What to do when ... User Manual SIPLACE HS-50
3.8 How to avoid track errors Software Version SR.50x.xx 01/2006 US Edition
112
3.8.2 ... on the 8 mm S tape feeder module
Æ NEVER open the cover flap without first releasing the tension of the cover foil remover.
Æ Set the pick-up position and the spacing of the tape according to the short instructions en-
closed with each tape feeder module.
Æ Insert the tape material over the spring into the tape feeder module.
3.8.3 ... on the tape container
Æ Insert the spacers correctly (see Fig. 3.5 - 2).
Æ Use insertable shafts for large tape reels.
User Manual SIPLACE HS-50 3 What to do when ...
Software Version SR.50x.xx 01/2006 US Edition 3.8 How to avoid track errors
113

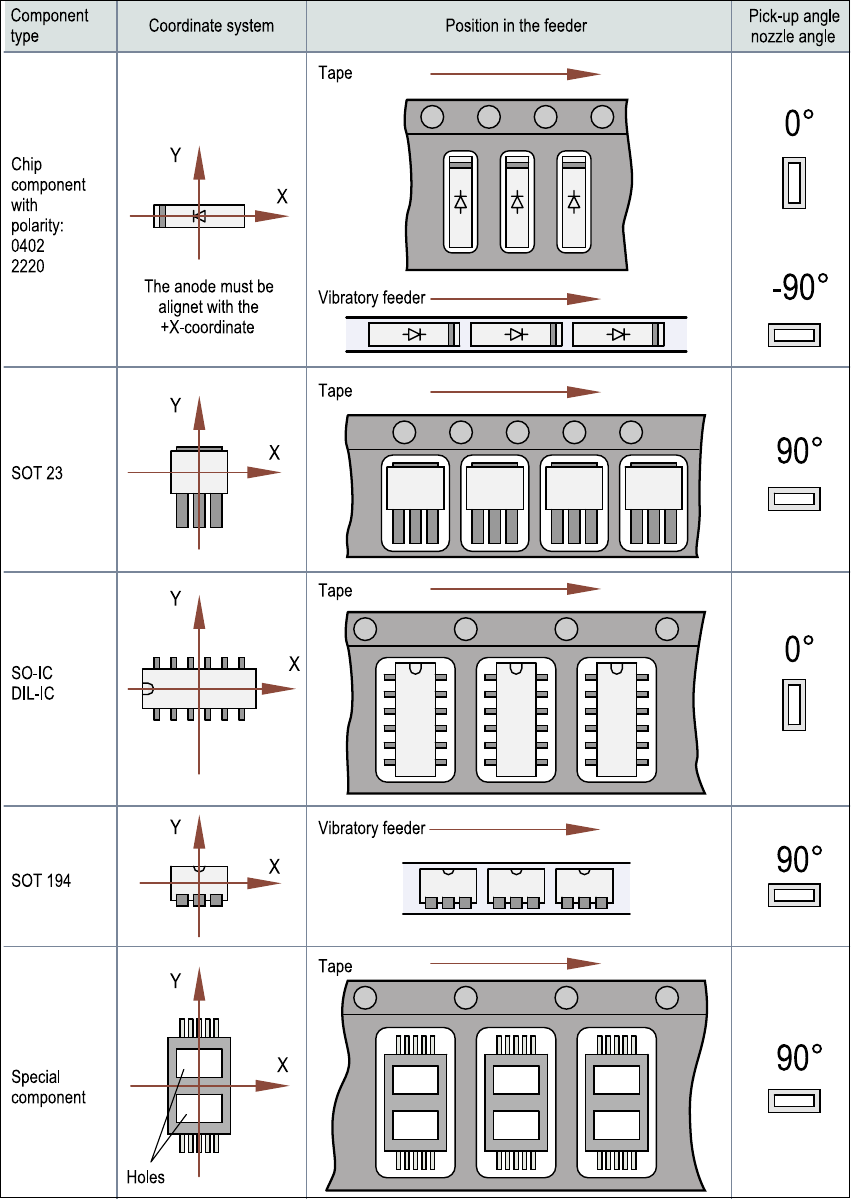

3.8.4 Component coordinate system and pick-up angle
3
Fig. 3.8 - 2 Position of the component and its pick-up angle
