4 Component handling User Manual SIPLACE HS-50
4.2 Technical data for the feeder modules Software Version SR.50x.xx 01/2006 US Edition
120
4.2.2 3 x 8 mm S feeder
4
Fig. 4.2 - 2 8 mm S II feeder
Item no. 00141098-xx
Width 30 mm
Tracks per feeder 3
Maximum number of feeders 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC 4
User Manual SIPLACE HS-50 4 Component handling
Software Version SR.50x.xx 01/2006 US Edition 4.2 Technical data for the feeder modules
121
4.2.3 3 x 8 mm S feeder for 0201/0402 components
4

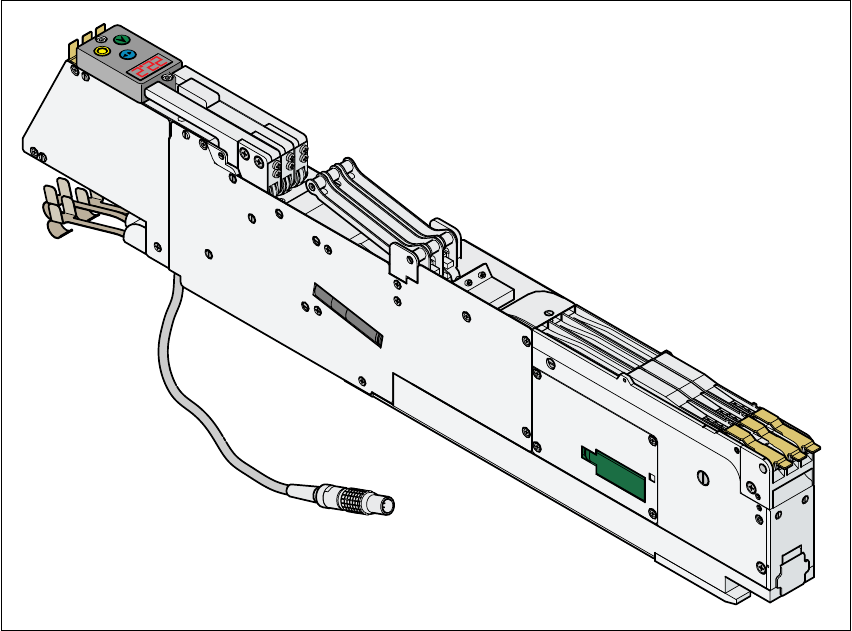

Fig. 4.2 - 3 3x8 mm S feeder for 0201/0402 components
Article number 00141099-xx
Width 30 mm
Component range 0201, 0402
Tracks per feeder 3
Maximum number of feeders 4 x 12
Stock of components for 7” reels approx. 10,000 – 15,000
Data specific to reel diameter 7” – 15”, maximum 381 mm
Transport distance (adjustable) 2mm ( 4mm)
Cycle time 60 ms
Power supply 30 V DC
4 Component handling User Manual SIPLACE HS-50
4.2 Technical data for the feeder modules Software Version SR.50x.xx 01/2006 US Edition
122
4.2.4 12/16 mm S feeder
4
Fig. 4.2 - 4 12/16 mm S feeder
Item no. 00141092-xx
Width 30 mm
Tracks per feeder 1
Maximum number of feeders 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms (8 mm feeding interval)
Main power supply 30 VDC 4
