User Manual SIPLAC E HS-50 4 Component han dling Software Version SR.50x.xx 01/2006 US Edition 4.2 Technical data for the feeder modules 123 4.2.5 12 mm S module for cap acitors ba sed on powdered met al, model C/D Fig. …
4 Component handling User Manual SIPLACE HS-50
4.2 Technical data for the feeder modules Software Version SR.50x.xx 01/2006 US Edition
122
4.2.4 12/16 mm S feeder
4

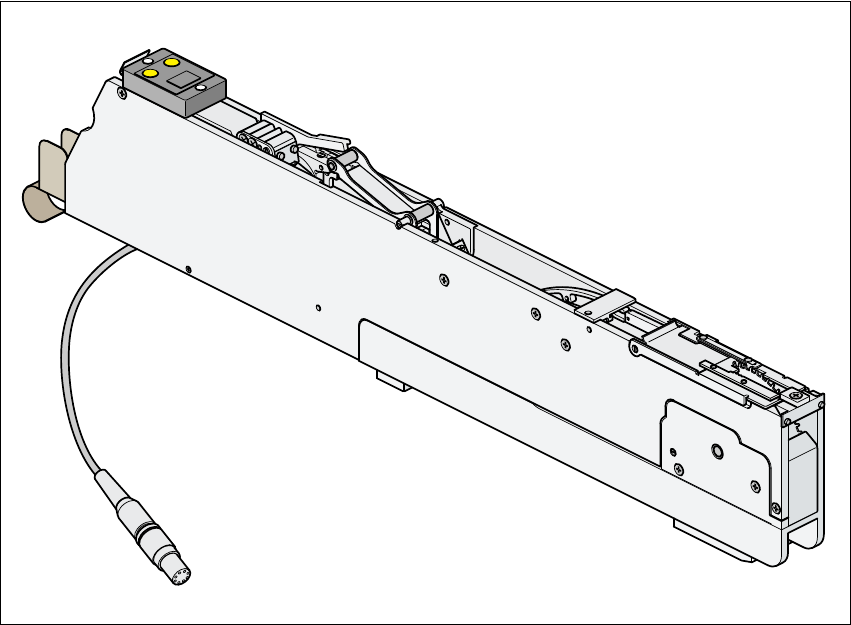

Fig. 4.2 - 4 12/16 mm S feeder
Item no. 00141092-xx
Width 30 mm
Tracks per feeder 1
Maximum number of feeders 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms (8 mm feeding interval)
Main power supply 30 VDC 4
User Manual SIPLACE HS-50 4 Component handling
Software Version SR.50x.xx 01/2006 US Edition 4.2 Technical data for the feeder modules
123
4.2.5 12 mm S module for capacitors based on powdered metal, model C/D

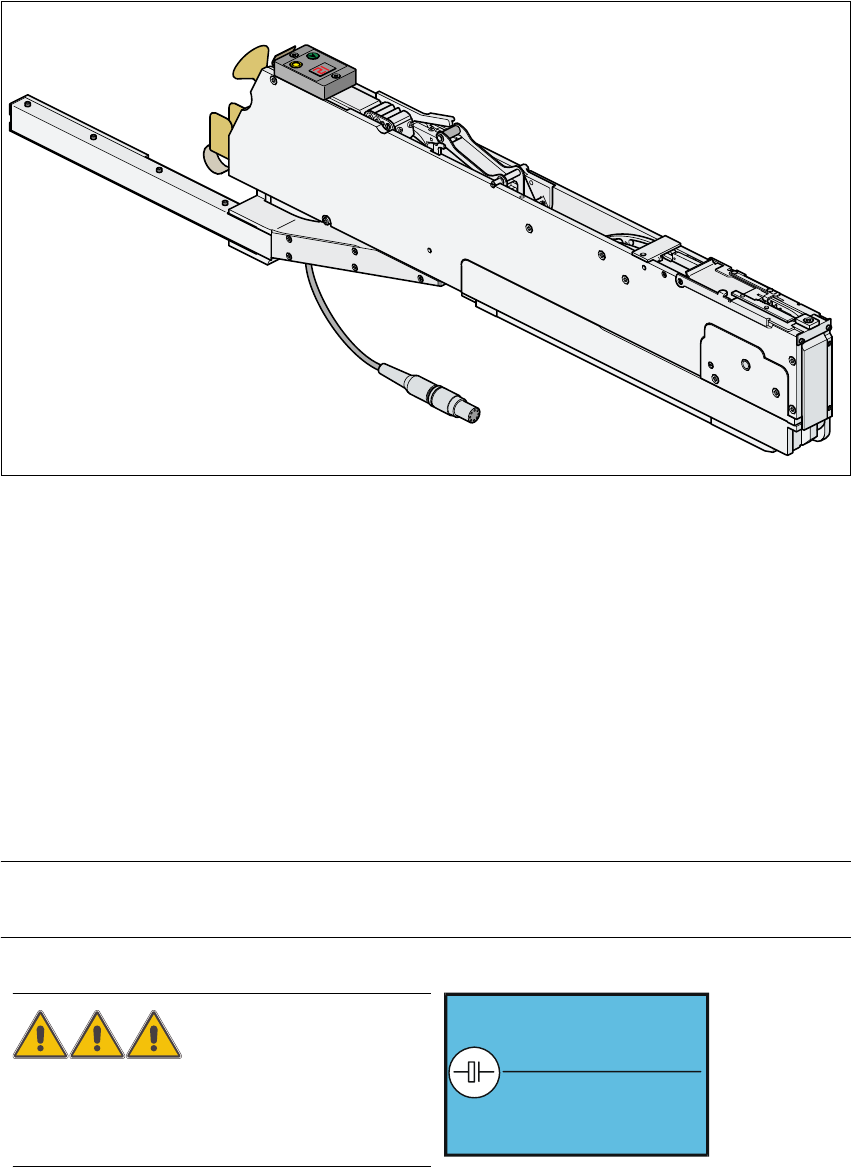

Fig. 4.2 - 5 12 mm S module for capacitors based on powdered metal, model C/D
Item no. 00141118-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Maximum tape height 3,6 mm
Feeding stroke (variable) 4mm, 8mm, 12mm, 16mm
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Vibrator time (waiting time) 100 ms
Main power supply 30 VDC
NOTE: 4
Using this feeder type you can adjust the height of the tape support at the pick-up position. 4
DANGER 4
Use only feeders, labeled as shown above,
when feeding capacitors based on metal-
powder (e.g. tantalum). 4
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
4 Component handling User Manual SIPLACE HS-50
4.2 Technical data for the feeder modules Software Version SR.50x.xx 01/2006 US Edition
124
4.2.6 12 mm S module for capacitors based on powdered metal, model E

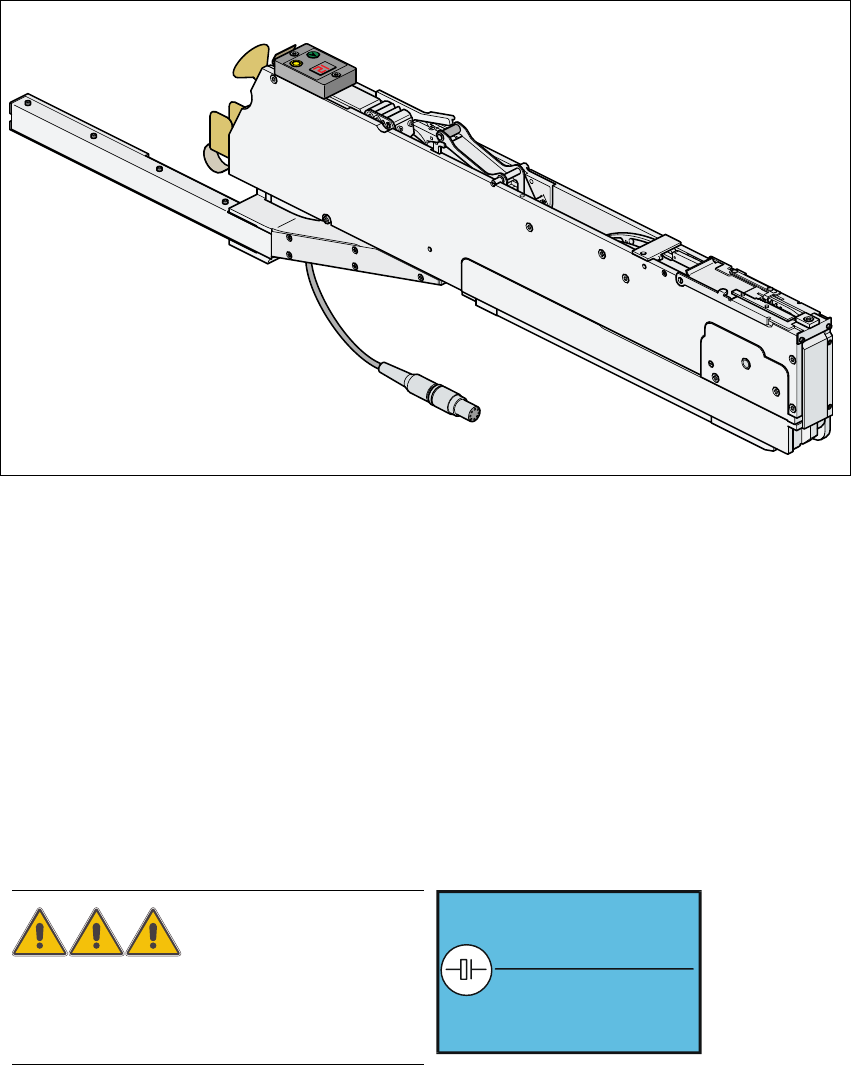

Fig. 4.2 - 6 12 mm S module for capacitors based on powdered metal, model E
Item no. 00141117-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 4 x 12
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Maximum tape height 3,6 mm
Feeding stroke (variable) 4mm, 8mm, 12mm, 16mm
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Vibrator time (waiting time) 100 ms
Main power supply 30 VDC
DANGER 4
Use only feeders, labeled as shown above,
when feeding capacitors based on metal-
powder (e.g. tantalum). 4
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
