5.2.2 Notes on operation

– The barcode reader must connected.

– The barcode for each component must entered on the line computer.

Æ To do this, select the "Set-up check with barcode" function from the Machine options menu.

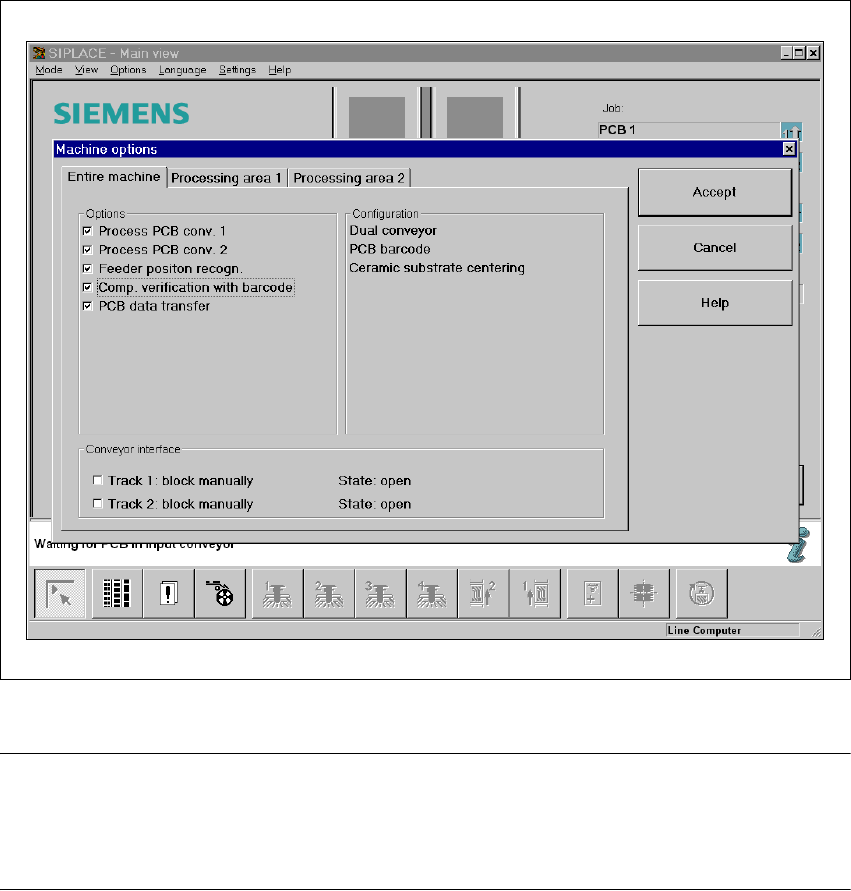

Fig. 5.2 - 2 Set-up check with barcode

PLEASE NOTE: 5

If one of the digits of the barcode has been assigned to a filter (i.e. a star *), this digit will not be

evaluated. This enables data contained in the barcode, such as the date or company name, to be

skipped.

– If the component barcode has been activated on the line computer and "Set-up check with bar-

code" has been selected from the machine options on the station, the "Fill location" and "Fill

track with barcode" functions cannot be used manually.

– If there are tracks with components without a barcode, then a manual "Fill" is possible, even if

the refill check has been activated.

User Manual SIPLACE HS-50 5 Station extensions

Software Version SR.50x.xx 01/2006 US Edition 5.2 Component barcode

149

Options in the event of an illegible barcode 5

Æ Deactivate the refill check from the Machine options menu.

Æ Enter the Barcode manually.

5.2.3 Operation

Select the "Empty tracks" view from the Set-up menu.

Æ Use the barcode reader to scan the desired track barcode.

If the track is contained in the set-up and the component has a barcode, the "Set-up check with

barcode" dialog will appear, specifying the corresponding track.

PLEASE NOTE 5

You can open the dialog by clicking on the desired track or by clicking on the "Set-up check

with barcode" button. 5

The track can be filled once the comparison has been carried out and the return barcode has been

scanned.

5.2.4 Technical data

Component barcode

Max. resolution 0.13 mm

Scanning speed 36 scans/sec.

Laser class IEC class 2

Degree of protection IP 64

Compatible barcode types

Code 39 (normal / FULL ASCII)

EAN/UPC (family with/without ADD ON

CODABAR

INTERLEAVED 2/5

NORMAL 2/5 (5 bars)

(others available upon request)

5 Station extensions User Manual SIPLACE HS-50

5.3 Dual conveyor Software Version SR.50x.xx 01/2006 US Edition

150

5.3 Dual conveyor

5.3.1 Structure of the dual conveyor

The conveyor belts are driven by DC motors. There is a lifting table for holding the PCBs in each

processing area. The width of the PCB conveyor can be adjusted either via the menu or using the

line computer.

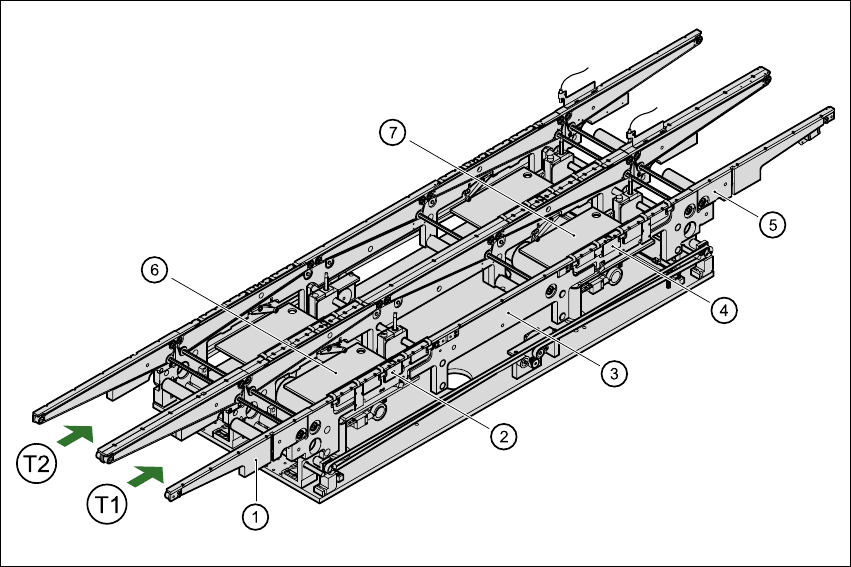

Fig. 5.3 - 1 Structure of the dual conveyor

(1) Feeding area (2) Processing area 1

(3) Intermediate area (4) Processing area 2

(5) Output area (6) Lifting table, processing area 1

(7) Lifting table, processing area 2 T1 Transport track 1

T2 Transport track 2
