The placement system can be linked to input and output stations, screen printing systems, sol-
dering ovens and other automatic placement systems from the SIPLACE range (HS-50, S-20,
F4, F5, and the SIPLACE G glue application station). All SIPLACE modules are supplied with the
necessary data by the UNIX line computer. The placement system can also be linked to a higher
level data processing system through the use of suitable interfaces.
1.9.2 Technical data – line concept
1
*) SIPLACE HS-50, SIPLACE 80 S-20, SIPLACE S-23 HM, SIPLACE S-25 HM or SIPLACE 80 F
4
with 12-segment collect&place head 1
**) SIPLACE S-25 HM 1
***)SIPLACE 80 F
4
/F
5
/F
5
HM 1
1
1
System SIPLACE placement lines
Modules SIPLACE HS-50 / SIPLACE 80 S-20 / SIPLACE S-23 HM
SIPLACE 80 F
4
/ SIPLACE F
5
/ SIPLACE F
5
HM,
SIPLACE S-25 HM
Peripherals Input/output stations
Screen printers
Soldering ovens
Inspection stations, etc.
Component range from 0402 * to 32 mm x 32 mm ** or
from 0402 * to 55 mm x 55 mm ***
PCB conveyor Automatic width adjustment
PCB format
(length x width)
50 mm x 50 mm to 508 mm x 460 mm
(2" x 2" to 20" to 18")
Placement rate Depends on how the modules are connected to one another
Space required 4 m² / SIPLACE S/F module
7.5 m² / SIPLACE HS-50 module
1 Introduction User Manual SIPLACE HS-50
1.10 Connection data for the placement system Software Version SR.50x.xx 01/2006 US Edition
20
1.10 Connection data for the placement system
1.10.1 Electrical and pneumatic connection points on the placement system
1

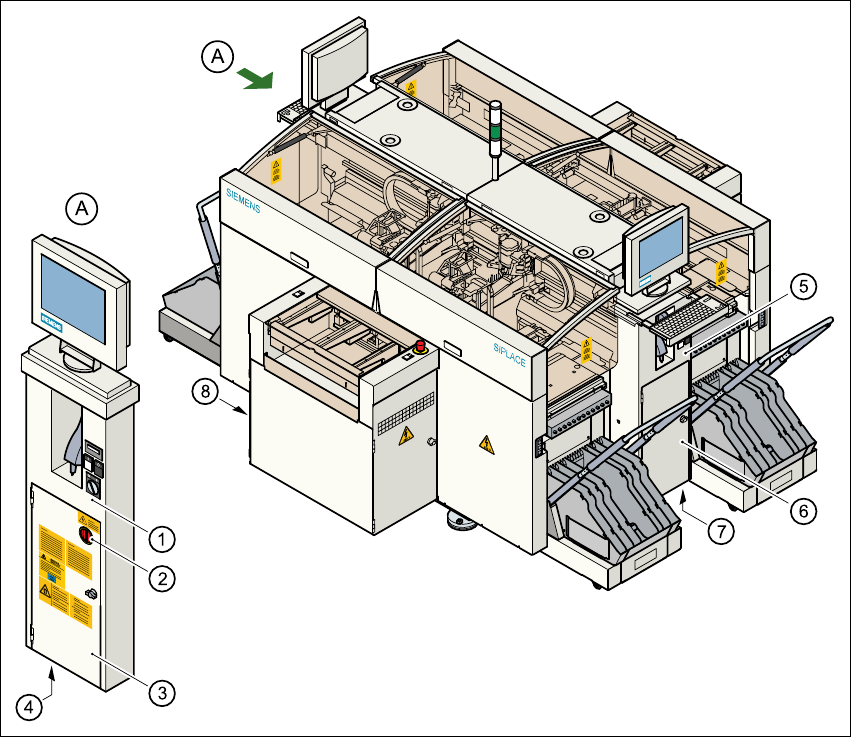

Fig. 1.10 - 1 Electrical and pneumatic connection points on the placement system
(1) Operating panel, left
(2) Main switch
(3) Safety doors to the power supply unit
(4) Hole for the power cable
(5) Operating panel, right
(6) Safety door to the compressed air unit
(7) Hole for the compressed air line
(8) LAN connection on the station computer
User Manual SIPLACE HS-50 1 Introduction
Software Version SR.50x.xx 01/2006 US Edition 1.10 Connection data for the placement system
21
DANGER
The placement system is supplied with 3 x 204 V AC (US version), 3 x 230 V AC, 3 x 380 V AC,
3 x 400 V AC or 3 x 415 V AC ± 5 %, 50/60 Hz mains voltage. This means that some parts of the
system carry potentially lethal voltages - even when switched off at the main switch. Incorrect han-
dling of the placement system can therefore result in death or severe injury or considerable dam-
age to equipment. 1
WARNING
NEVER detach compressed air lines while they are still pressurized. Risk of injury. 1
1.10.2 Technical data - electrical ratings
1
Supply voltage 3 x 204 VAC ± 5 %; 50/60 Hz (U.S.A)
3 x 230 VAC ± 5 %; 50/60 Hz
3 x 380 VAC ± 5 %; 50/60 Hz
3 x 400 VAC ± 5 %; 50/60 Hz (Europe)
3 x 415 VAC ± 5 %; 50/60 Hz
Fuses 3 x 32 A (3 x 204 VAC)
3 x 32 A (3 x 230 VAC)
3 x 16 A (3 x 380 VAC)
3 x 16 A (3 x 400 VAC)
3 x 16 A (3 x 415 VAC)
Total connected load 11.1 kVA
Total output 9 kW
Power failure max. 10 msec
