1 Introduction User Manual SIPLACE HS-50
1.12 Dimensions and weight of the placement system Software Version SR.50x.xx 01/2006 US Edition
24
1.12.3 The placement system’s center of gravity
1

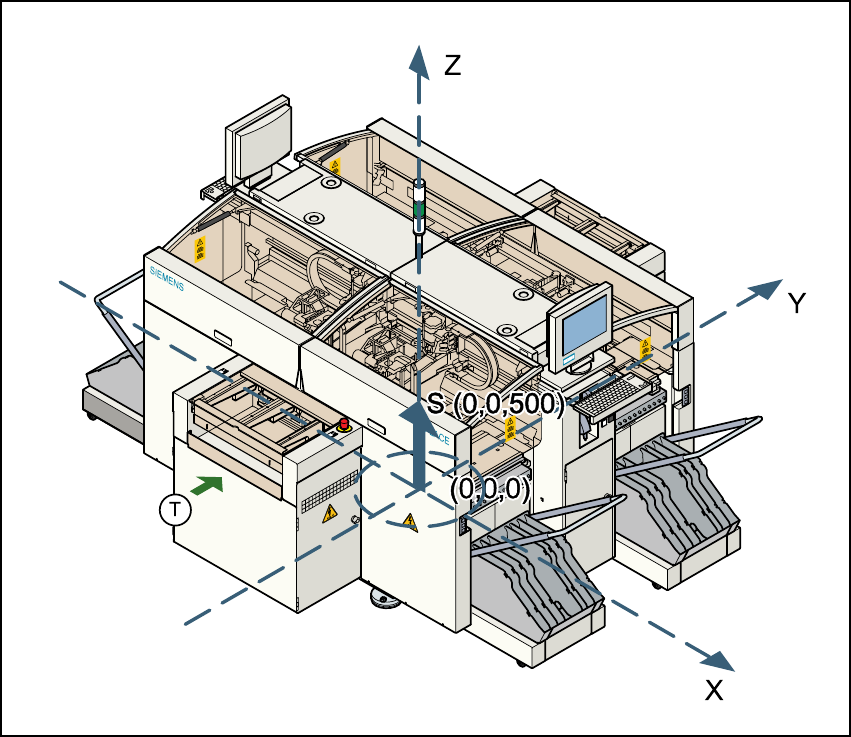

Fig. 1.12 - 2 The placement system’s center of gravity
X coordinate 0 mm 1
Y coordinate 0 mm 1
Z coordinate 500 mm high 1
T PCB transport direction 1
1
These center of gravity coordinates relate to placement systems with a PCB transport height of
830 mm. 1
User Manual SIPLACE HS-50 1 Introduction
Software Version SR.50x.xx 01/2006 US Edition 1.13 Setting up the placement system
25
1.13 Setting up the placement system
1.13.1 Transport dimensions
The placement system mounting kit (A) on the input side can be dismantled for transportation pur-
poses, which will reduce the width of the machine from 2380 mm to 1960 mm. 1
1
Fig. 1.13 - 1 Dimensions of the placement system during transportation and setting up
A Mounting kit which can be dismantled for transportation purposes. 1
B Points for attaching the fork-lift truck (fork length 2500 mm) 1
1
The PCB conveyor height is 830 mm ± 15 mm (or 952.5 mm ± 15 mm in accordance with the
SMEMA standard). The height specifications for the machine will change accordingly. 1
1 Introduction User Manual SIPLACE HS-50
1.13 Setting up the placement system Software Version SR.50x.xx 01/2006 US Edition
26
1.13.2 Transport configuration and transportation
The following components are not installed when the placement system is delivered from the fac-
tory: 1
– keyboards
–monitors
– fault indicator lamps and
– component tables
Æ Install the dismantled components for commissioning.
Æ Use a fork-lift truck to transport the placement system:
– minimum fork length 2000 mm if the mounting kit is dismantled.
– minimum fork length 2500 mm if the mounting kit is still fitted.
Æ Attach the fork-lift truck only at the indicated points.
1.13.3 Quality of the foundation
Æ Ensure that
– you set up the placement system on a firm and non-vibrating foundation.
– the load bearing capacity per unit area of the foundation is greater than 1000 kg/m².
1.13.4 Compressed air supply
– The pressure of the compressed air supply must be 6.5 bar min.
– The compressed air must conform to the above specification.
This can be achieved with 1
– oil-free compressors, e.g. Atlas, Copco type ZR4
– compressed air washer/driers
– micro-filters, series X, e.g. from Zander
1.13.5 Power supply
– The power socket must be fused with the following fuse ratings:
3x32A for 3x204VAC 1
3x32A for 3x230VAC 1
