1 Introduction User Manual SIPLACE HS-50

1.14 Overview of the modules - controls Software Version SR.50x.xx 01/2006 US Edition

1.14 Overview of the modules - controls

1.14.1 Controls

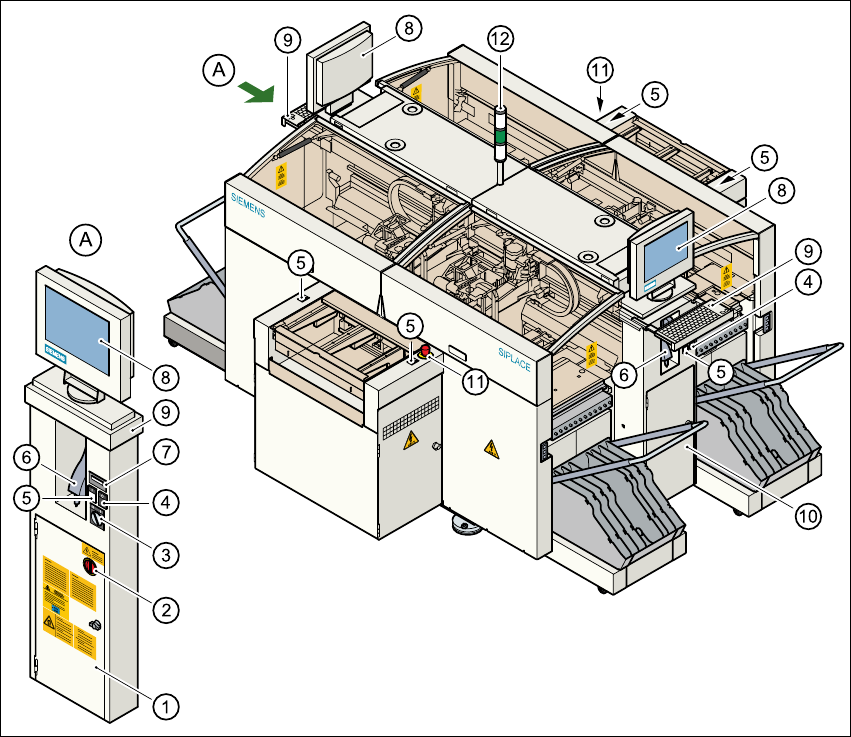

Fig. 1.14 - 1 Overview of the modules - controls

(1) Operating panel, left-hand side (2) Main switch

(3) Key switch (4) Stop button (black)

(5) Start button (white) (6) Component barcode scanner

(7) Component counter (8) LCD screen

(9) Keyboard with trackball (10) Operating panel, right-hand side

(11) Emergency stop button (12) Indicator lamps

User Manual SIPLACE HS-50 1 Introduction

Software Version SR.50x.xx 01/2006 US Edition 1.14 Overview of the modules - controls

1.14.2 Description

All the controls can be reached by a 1.60 m tall person. 1

Main switch 1

The main switch is used to switch the power supply to the placement system on and off. 1

RISK OF DEATH

Some parts inside the placement system carry potentially lethal voltages - even when switched off

at the main switch. 1

Key switch 1

In normal mode, the key switch is set to "0". The key should be removed and kept in a safe place.

It must only be turned to position "I" (set-up mode) by authorized personnel, and then only for cer-

tain maintenance and servicing work. 1

Stop button 1

This button is used to stop the placement system. 1

Start button 1

This button starts the placement system after it has been switched on or after faults have been

eliminated. 1

Emergency stop button 1

The emergency stop button latches into place when it is pressed. The power supply for the gantry

axes, component tables, conveyor belts and cutting devices is interrupted and the voltage to the

star axes of the placement heads is reduced. The button must be turned to release it. 1

Component counter 1

The component counter displays the number of components processed. 1

LCD screen 1

There is a flat LCD screen with a touch-sensitive surface (touch-screen) on either side of the

placement system. The screen resolution is 1024 x 768 pixels. 1

1 Introduction User Manual SIPLACE HS-50

1.14 Overview of the modules - controls Software Version SR.50x.xx 01/2006 US Edition

Keyboard 1

A keyboard with the trackball is located beneath each screen. The keyboards can be pulled in and

out as required. 1

Indicator lamps 1

The sequence of colors is white - green - white. These lamps are used to signal operating statuses

and malfunctions of the placement system. 1

Component barcode reader 1

There is a compartment for a Datalogic DL 910 component barcode reader on either side of the

machine. The barcode reader enables the components to be set up and topped up quickly and

reliably. 1

1.14.3 Ergonomic arrangement of the controls

Figure 1.14 - 1 on page 30 provides an overview of the position of the controls, which are subdi-

vided into the following groups: 1

Operating panel on the right-hand side of the central console with 1

– LCD screen

– Keyboard with trackball

– Start button

– Component barcode reader

Operating panel on the left-hand side of the central console with 1

– LCD screen

– Keyboard with trackball

– Component counter

– Start button

– Stop button

–Key switch

– Component barcode reader

– Main switch

Input / output side of the PCB conveyor with 1

– Emergency stop buttons
