2 Operational Safety User Manual SIPLACE HS-50
2.2 Safety equipment Software Version SR.50x.xx 01/2006 US Edition
66
2.2 Safety equipment
2.2.1 Protective covers
2

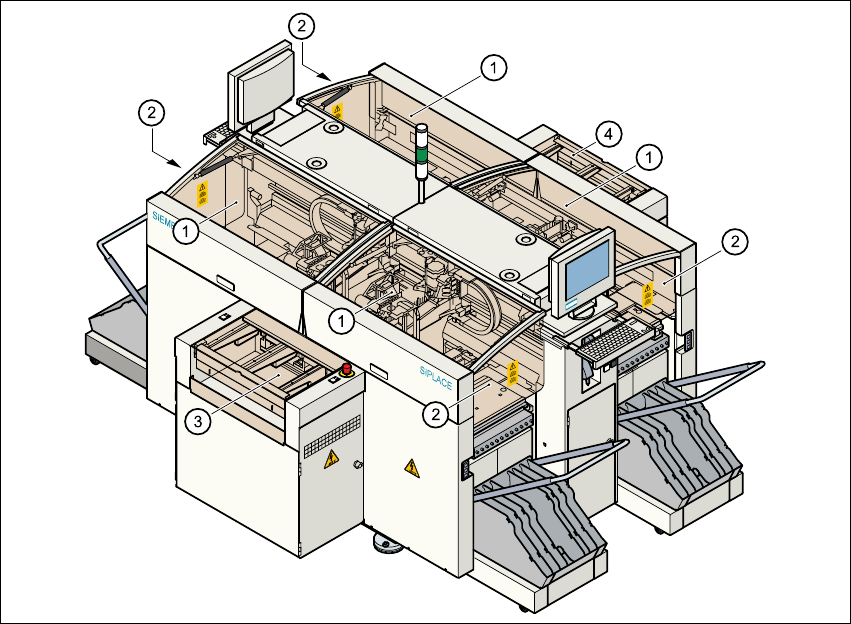

Fig. 2.2 - 1 Protective covers
2
The travelling range of the gantries is covered by four protective covers which can be folded up.
Side screens prevent access to the inside of the placement system from the side. The covers over
the input and output belts of the PCB conveyor and the guards on the input and output belts pre-
vent access to the PCB conveyor. 2
(1) Protective covers
(2) Safety screens
(3) Cover and guard on the input belt
(4) Cover and guard on the output belt
User Manual SIPLACE HS-50 2 Operational Safety
Software Version SR.50x.xx 01/2006 US Edition 2.2 Safety equipment
67
Function
If one of the protective covers is folded up or one of the covers on the PCB conveyor is raised, the
power supply to the gantry axes will be interrupted immediately. The gantry axes will stop and the
message "Close the cover" will appear on screen. 2
Æ Close the protective covers and press one of the Start buttons to continue placement.
2

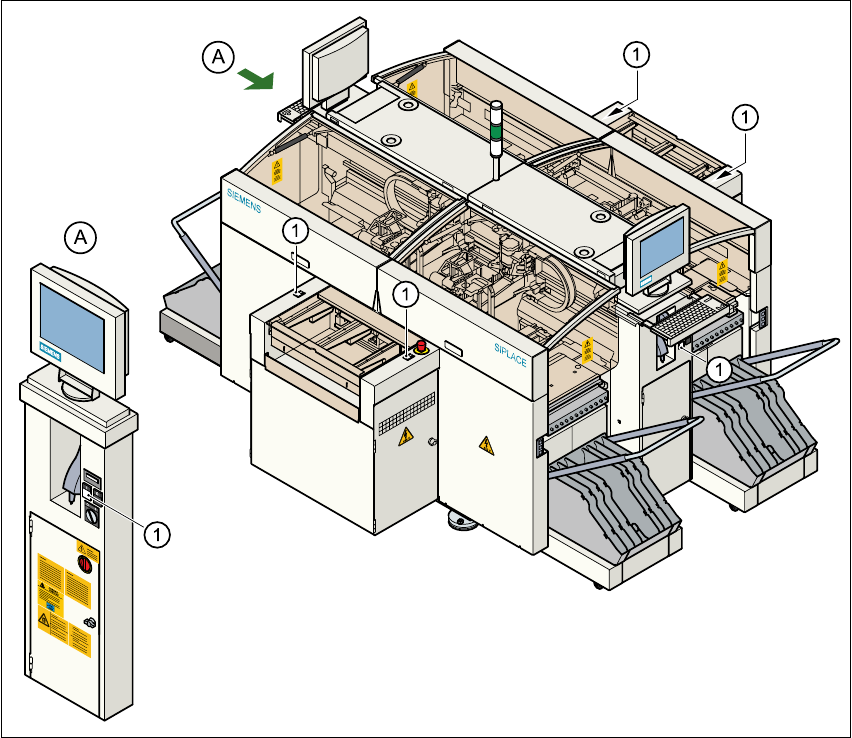

Fig. 2.2 - 2 Position of the Start buttons (white) on the placement system
(1) Start buttons (white) on the placement system
2
2 Operational Safety User Manual SIPLACE HS-50
2.2 Safety equipment Software Version SR.50x.xx 01/2006 US Edition
68
2.2.2 Guard on the input/output belt
DANGER The guard must always be set to the height of the PCB to be pro-
cessed. Ensure that the gap between the guard and the safety bar is as small as possible. 2
Guards are fitted on the input and output belts of the PCB conveyor. 2
Æ Set the height of the guard using the slots so that the PCB can pass through.
2

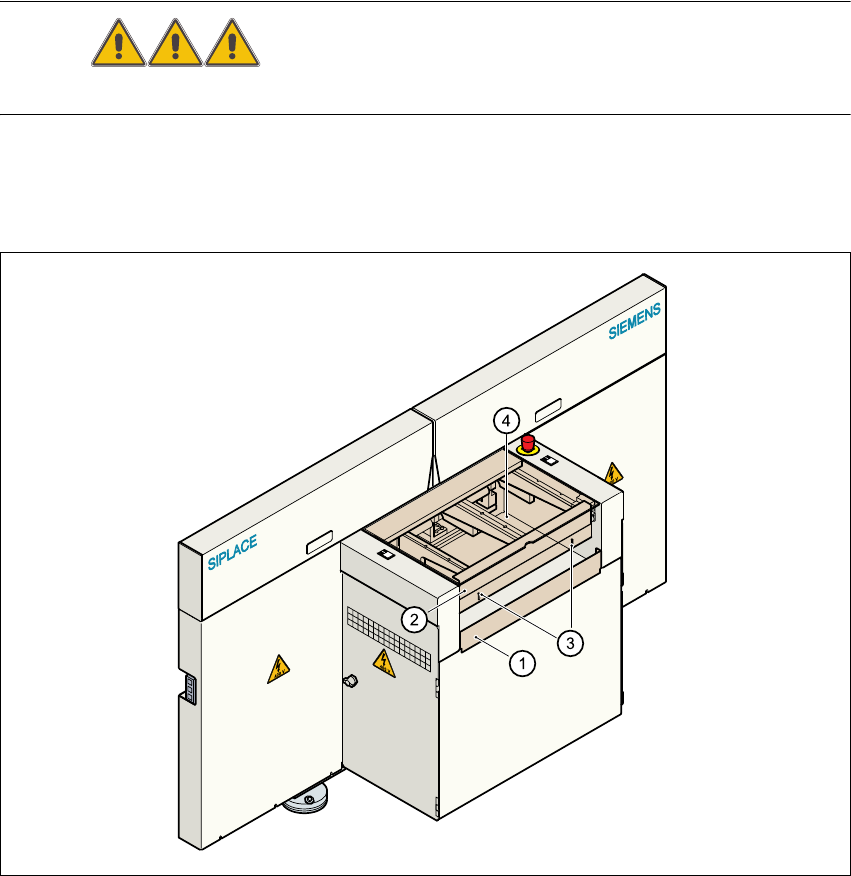

Fig. 2.2 - 3 Guard on the input/output belt of the placement system
(1) Safety bar (fixed)
(2) Guard (adjustable)
(3) Slots for adjusting the height
(4) Cover
2
