2 Assembly instructions for vacuum pump D1 / D2
11/2006 Edition
30
2.5 Modifying the compressed air supply
: Switch the placement machine off at the main switch and disconnect it from the electricity.
: Open the door of the compressed air supply (completely open).
: Fasten the connector in the measurement connection of the vacuum distribution blocks (see
Fig. 2.5.1).
: Put a blanking plug (QSC-4H) into the measurement connection.
: Turn both of the connectors into the vacuum distribution block.
Fig. 2.5.1 Compressed Air Supply with the vacuum distribution block
2
2
2
2
2
2
2
D1 / D2 2 Assembly instructions for vacuum pump
11/2006 Edition
31
: Mount the vacuum distribution block on the back.
: Close off both compressed air main shut-off valves (red).

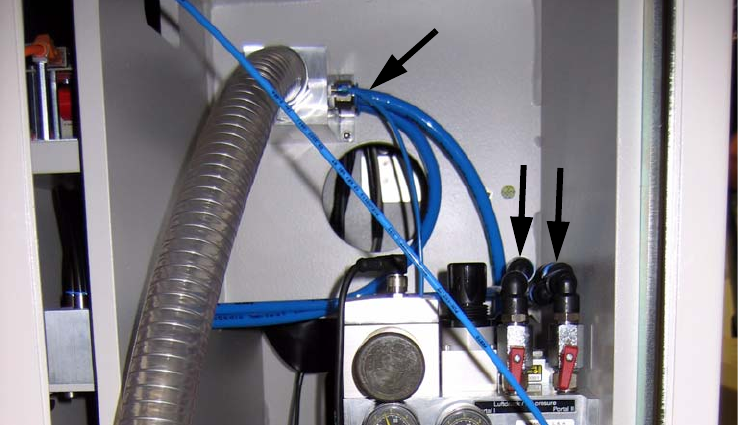

Fig. 2.5.2 Compressed Air tubes in the vacuum distribution block
2
: Pull in each case the upper compressed air tube (PUN 12 00344918-) out of the Y fitting (next
to the shut-off valves).
: Put them into the vacuum distribution block
: Put the blanking plugs (QSC-12H from the vacuum distribution) into the open Y pieces next to
the shut-off valves.
2
2 Assembly instructions for vacuum pump D1 / D2
11/2006 Edition
32
2.6 Changes to the placement head
Fig. 2.6.1 HF-vacuum Generator (Initial State)
