D1 / D2 2 Assembly instructions for vacuum pump
11/2006 Edition
33
: Remove the cover of the vacuum generator plate (2 screws).
Fig. 2.6.2 Remove HF-vacuum Generator
2
: Open the cable clip at the gantry distributor.
: Remove the ribbon cable from the gantry distribution plate.
: Remove the tubes from the connectors.
2
2
2
2
2
2
2
2
2
2
2
2 Assembly instructions for vacuum pump D1 / D2
11/2006 Edition
34

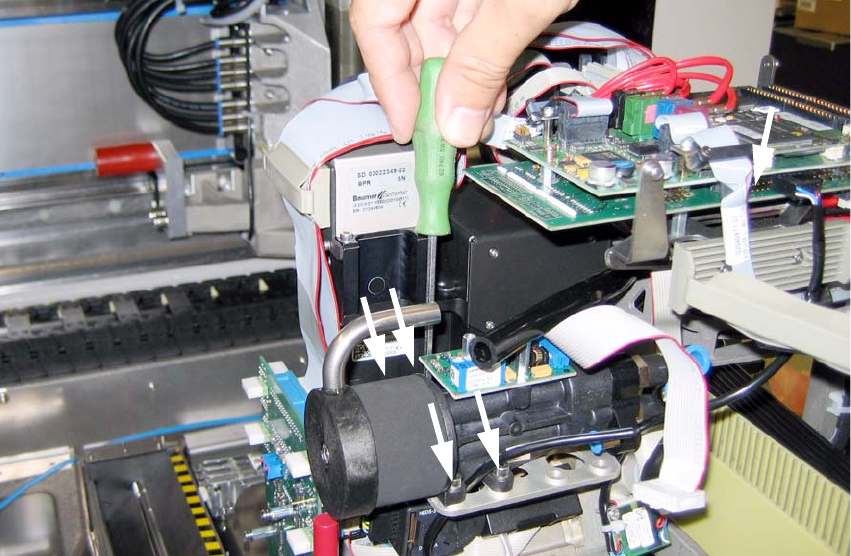

: Remove the 4 fixing bolts from the vacuum generator (pay attention to the washer).
Fig. 2.6.3 Tubing on HF-Vacuum Generator
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
D1 / D2 2 Assembly instructions for vacuum pump
11/2006 Edition
35
: Remove the remaining tubes (pay attention to the positioning)
: Remove the entire HF-vacuum generator.
Fig. 2.6.4 Reequipped vacuum generator for vacuum pump DLM2 (not air-permeable cylinder)
2
The transparent tubes as before –do not attach crosswise therefore!
: Put the tubes correctly into the vacuum generator for vacuum pump DLM2.
2
Pay attention to the pins when attaching. This plug could be attached also misplaced, leading to
damage! 2
: Attach the ribbon cable to the ga
ntry distribution plate.
: Fasten the vacuum generator (4 screws and disks).
: Loosen the screw on the front side, to turn the pipe correctly and you fix them again afterwards.
: Fasten the cover of the vacuum generator plate (2 screws).
: Fix the cables with the cable clip at the gantry distributor.
2
: Before powering on complete the ”Finishing Work” (Chapter 2.9).
