Introduction Scope of Delivery 5 I n t r o d u c t io n – S c o p e o f D e liv e r y The scope o f delivery includes: ▪ 1 X- feeder test box , item no. 03054548-01 ▪ 1 p ower p ack, item no. 03133449 -01 ▪ 1 CAN cable ▪…
Job Guide X-Feeder Test Station4
Contents
4
6 2b - Resetting the maintenance counter (only 2x8 mm X, SmartFeeder
12, 16 mm X)
37
7 3 - Updating the firmware 39
7.1 3-1 X-Feeder Testbox checks the Connections 41
7.2 3-2 X-Feeder Testbox checks the Firmware Version 42
7.3 3-3 Starting the Firmware Update 43
7.4 3-4 Connecting and disconnecting the Feeder Module 44
7.5 3-5 X-Feeder Testbox checks the Firmware Update 45
8 4 - Saving the Log File 47
8.1 4-1 Starting the Storage 48
8.2 4-2 X-Feeder Testbox checks the Storage 49
9 B - Removing the Feeder Module 51
10 Switching off X-Feeder Testbox 53
11 Removing the X-Feeder Testbox Cable 55
Introduction Scope of Delivery
5
Introduction– Scope of Delivery

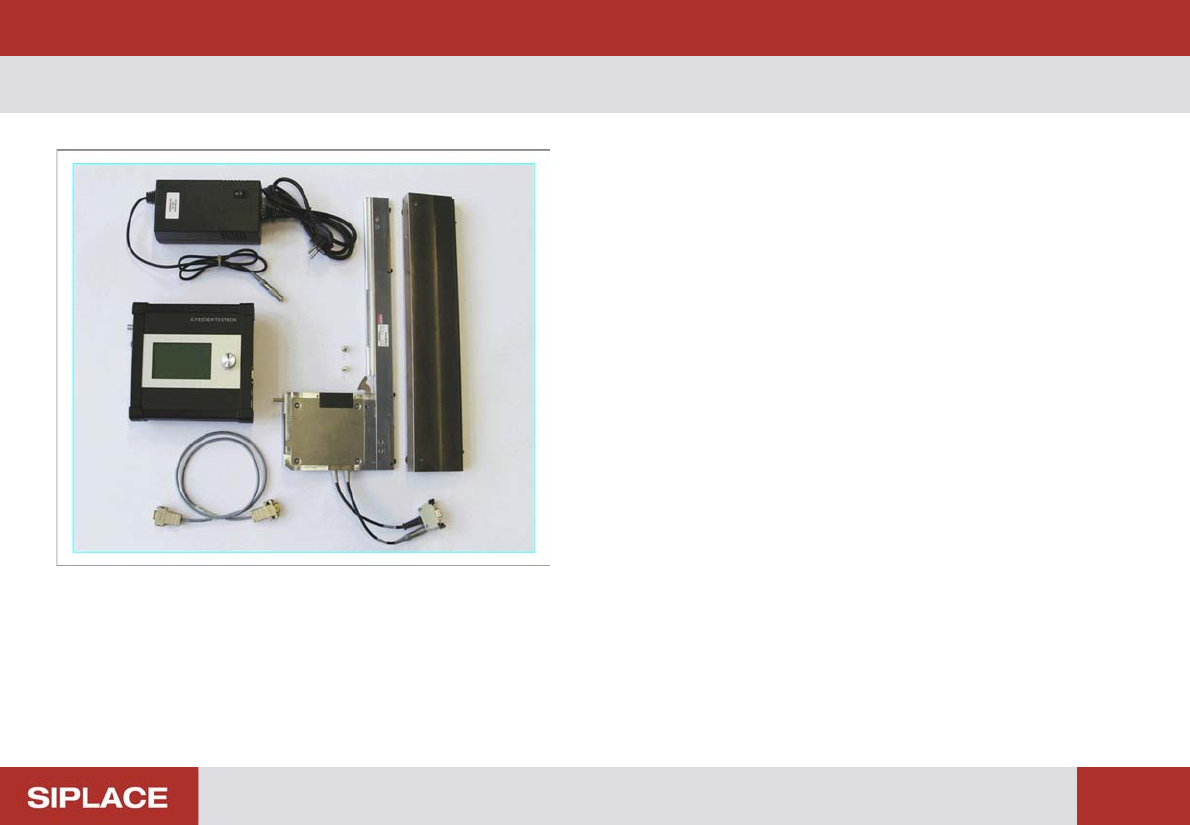

The scope of delivery includes:
▪ 1 X-feeder test box
, item no. 03054548-01
▪ 1 power pack, item no. 03133449-01
▪ 1 CAN cable
▪ 1 Single Slot EDIF with plate and 2 screws
Introduction Use of Symbols
6
– Use of Symbols
Work step
Repair (see service manual)
Note
as used in this Operation Manual provides information on the product or indicates a
part of the Operation Manual that requires particular attention.
Caution
as used in this Operation Manual means that slight injury or damage to equipment may
occur if the caution instructions are not followed.
Warning
as used in this Operation Manual means that death, severe injury or considerable
damage to equipment may occur if the warning instructions are not followed.
Danger
as used in this Operation Manual means that death, severe injury or considerable
damage to equipment will occur if the danger instructions are not followed.
