1 - Checking of the Feeder Modul e 1-1 Dealing wi th Stored Error s in the Feeder Module 27 The status LED for the feeder module flashes red. Two status-LEDs are flashing in case of 2x8 mm X-Feeder. Update the firmware o…
1 - Checking of the Feeder Module 1-1 Dealing with Stored Errors in the Feeder Module
26
Repeat the test.
If the error still exists, you will not be able to repair the feed
-
er module by yourself.
Please send the feeder module to the manufacturer for re
-
pair.
Make sure that the
X feeder test station
is correctly con
-
nected and then restart the test.
If this message is shown repeatedly, communication with
the feeder module is not possible.
Please send the feeder module to the manufacturer for re
-
pair.
1 - Checking of the Feeder Module 1-1 Dealing with Stored Errors in the Feeder Module
27
The status LED for the feeder module
flashes red. Two status-LEDs are flashing
in case of 2x8 mm X-Feeder.
Update the firmware of the feeder module.
If you are unable to fix the error, send the feeder module to
the manufacturer for repair.

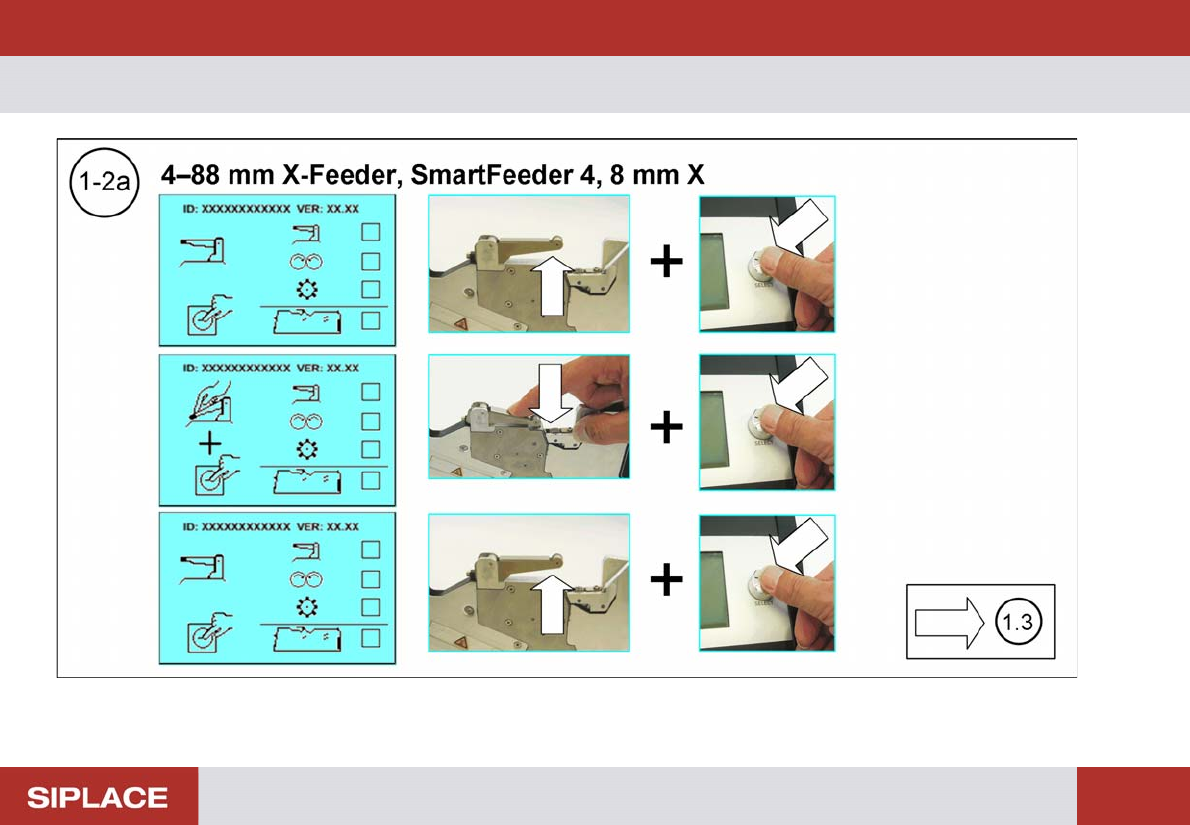

1 - Checking of the Feeder 1-2a Performing the X-Feeder-Test (4-88 mm X, SmartFeeder 4, 8 mm X)
28
– 1-2a Performing the X-Feeder-Test (4-88 mm X, SmartFeeder 4, 8 mm X)
