Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
252 6301326344 BRACKET 1→0 803BR-210-052 211F9154
267 6301463483 BRACKET 1
803BRA210080-A054
211FA927
268 6301235707 P.C.B,MOUNT 1 -U19
803BRA210080-A062
4B111448
269 6301465340 PROGRAM ROM 1
803BRA210080-A075
24000132
270 6301268705 TERMINAL 1
803BRA210080-A076
4J320185
271 6300911718 ACCESSORY,WIRING 1
803BRA210080-A068
23N30498
273 4111130700 SCR PAN 3X16
8→12
M3X16 PAN 221E0491
BR-3
116
G -S165-01
0909-002
641
651
653
652
656
.
661
690
689
688
See Fig.BR-1
Key No.55
625
644
631
646
.
648
653
647
698
.
695
.
696
673
658
651
653
652
656
.
661
654
.
660
653
655
698
.
695
.
696
EXCHANGE
EXCHANGE
ADD
640
.
642
.
643
657
.
661
639
.
642
.
643

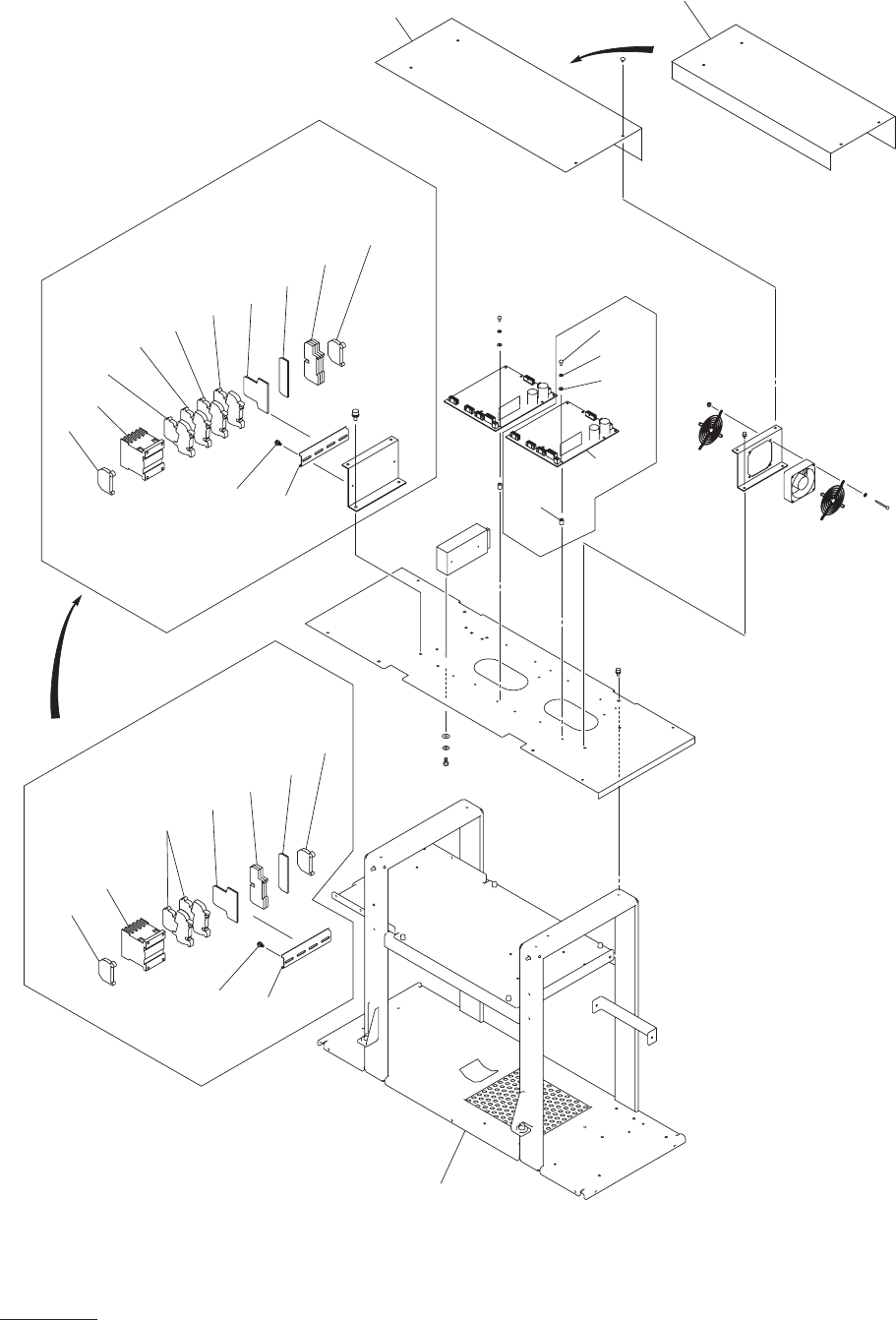

デュアル搬送取付本体対応
Main Machine Modification
For
G -S165-01 Attaching Dual
Transfer G -S165-01
Fig. BR-7
電装ボックス
R
コンベアドライバ
Electrical Box R-Conveyor Driver
117
G -S165-01
1012-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
625 6301487113 COVER 1
803BRA210080-A055
211AB031
631 6301242088 UNIT,DRIVER 1 -G05
803BRA210080-A061
4U240441
639 6301269887 FUSE HOLDER 1
803BRA210080-A069
4J200034
640 6301262864 FUSE HOLDER 1
803BRA210080-A070
4J200033
641 6301262871 ACCESSORY,WIRING 1
803BRA210080-A071
23N30605
642 6301262888 ACCESSORY,WIRING 2
803BRA210080-A072
23N30606
643 4230228302 FUSE 250V 5A 2 F035,F039
803BRA210080-A073
4S300024
644 6301613994 ACCESSORY,P.C.B 7
803BRA210080-A074
23L10106
646 6301268705 TERMINAL 3
803BRA210080-A076
4J320185
647 6301268729 ACCESSORY,WIRING 1
803BRA210080-A077
23N30609
648 6301268736 ACCESSORY,WIRING 4
803BRA210080-A078
23N30610
654 6301270302 TERMINAL 2→0 803BR-210-384 4J320187
655
6301270296 ACCESSORY,WIRING 1→0 803BR-210-385 23N30612
658
6301262871 ACCESSORY,WIRING 1→0 803BR-210-388 23N30605
660
6300969917 ACCESSORY,WIRING 1→0 803BR-210-390 23N30524
673
6301428024 COVER 1→0 803BR-210-073 211AA378
688 4110418908 SCR PAN 3X6
7→14
M3X6 PAN 221E0497
689 4110864408 WASHER SPR 3
7→14
SW3 F 221H0280
690 4111191909 WASHER V 3X7X0.5
7→14
FW3 F 221H0311
BR-7
