Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

625 6301487113 COVER 1

803BRA210080-A055

211AB031

631 6301242088 UNIT,DRIVER 1 -G05

803BRA210080-A061

4U240441

639 6301269887 FUSE HOLDER 1

803BRA210080-A069

4J200034

640 6301262864 FUSE HOLDER 1

803BRA210080-A070

4J200033

641 6301262871 ACCESSORY,WIRING 1

803BRA210080-A071

23N30605

642 6301262888 ACCESSORY,WIRING 2

803BRA210080-A072

23N30606

643 4230228302 FUSE 250V 5A 2 F035,F039

803BRA210080-A073

4S300024

644 6301613994 ACCESSORY,P.C.B 7

803BRA210080-A074

23L10106

646 6301268705 TERMINAL 3

803BRA210080-A076

4J320185

647 6301268729 ACCESSORY,WIRING 1

803BRA210080-A077

23N30609

648 6301268736 ACCESSORY,WIRING 4

803BRA210080-A078

23N30610

654 6301270302 TERMINAL 2→0 803BR-210-384 4J320187

655

6301270296 ACCESSORY,WIRING 1→0 803BR-210-385 23N30612

658

6301262871 ACCESSORY,WIRING 1→0 803BR-210-388 23N30605

660

6300969917 ACCESSORY,WIRING 1→0 803BR-210-390 23N30524

673

6301428024 COVER 1→0 803BR-210-073 211AA378

688 4110418908 SCR PAN 3X6

7→14

M3X6 PAN 221E0497

689 4110864408 WASHER SPR 3

7→14

SW3 F 221H0280

690 4111191909 WASHER V 3X7X0.5

7→14

FW3 F 221H0311

BR-7

118

G -S165-01

0909-002

See Fig.D-2

Key No.161

See Fig.D-2

Key No.161

See Fig.FB-2

Key No.132

See Fig.FB-2

Key No.188

381

See Fig.FB-2

Key No.137

See Fig.FB-2

Key No.188

EXCHANGE

380

ADD

デュアル搬送取付本体対応

Main Machine Modiﬁcation

For

G -S165-01 Attaching Dual

Transfer G -S165-01

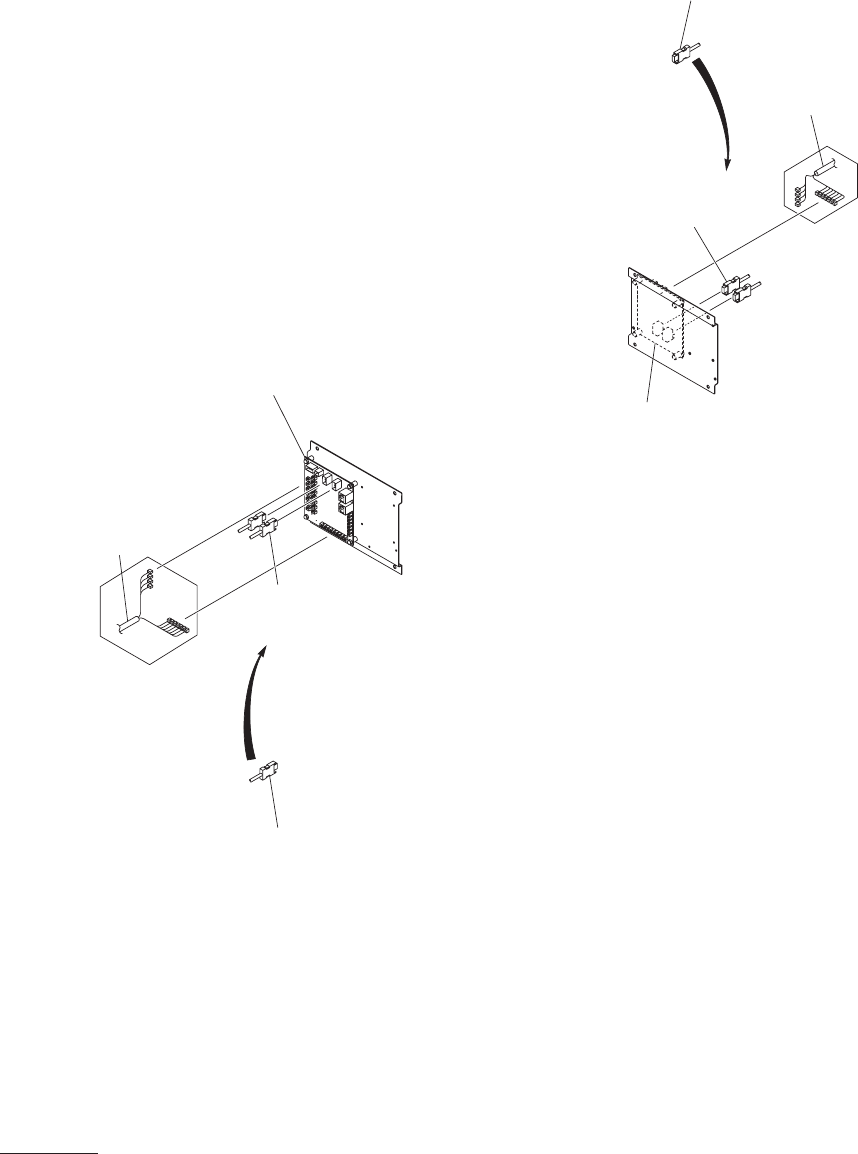

Fig. D-4

部品認識部 -

ケーブル

Recognition Section-Cable

119

G -S165-01

1012-004

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

D-4

380 6301532233 CORD 1

803BLA210080-A155

4W203882

381 6301532264 CORD 1

803BRA210080-A155

4W203884
