MODEL DL-G100 0612-001 12 供給コンベア INPUT CONVEYOR Fig. NL-2 シュート Chute 131 129 130 130
MODEL DL-G100
1012-003
11
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
NL-1
4 6301500744 ROD 4 806NL-110-004 216C0906
5 6301536118 BASE 1 806NL-110-005 210A2762
6 6301516394 BRACKET 1 806NL-110-006 21
1FB511
10 6301504063 BLOCK 2 806NL-110-010 21
1G4865
11 6301476704 GUIDE,LINEAR 2 806NL-110-011
222L0826
20 6301505886 PIN,LOCATE 6 806NL-110-100 216E1669
21 6301480664 PIN,LOCATE 2 806NL-110-101 216E1651
22 6301499987 BRACKET 1 806NL-110-122 21
1FB337
23 6301499994 BRACKET 1 806NL-110-123 21
1FB338
31 6301503028 BRACKET 3 806NL-110-11
1 211FB367
32 6301509464 BRACKET 3 806NL-110-112
211FB440
51 6300007633 BOLT,HEX-SCT 18 M4X12 221A0018
52
6300007657 BOLT,HEX-SCT 16 M4X16 221A0020
53
6300007732 BOLT,HEX-SCT 12 M5X8 221A0028
54
6300007749 BOLT,HEX-SCT 4 M5X10 221A0029
55
6300008012 BOLT,HEX-SCT 4 M8X20 221A0056
56
4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
61 4111416705 WASHER SPR 5 16 SW5 221H0287
62
4111413100 WASHER SPR 8 4 SW8 221H0291
66
4111414107 WASHER V 5X10X1 16 FW5 221H0318
67
4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
MODEL DL-G100
0612-001
12
供給コンベア
INPUT CONVEYOR

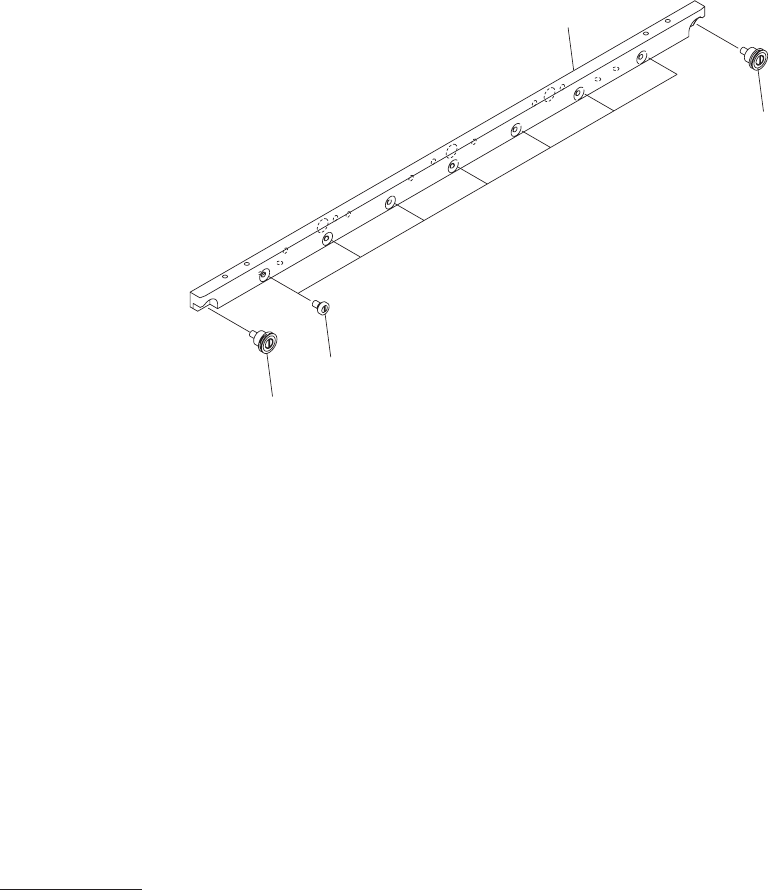

Fig. NL-2
シュート
Chute
131
129
130
130
MODEL DL-G100
1012-003
13
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
NL-2
129 6301518602 BLOCK 4 806NL-110-029 211G4987
130 6301480602 PULLEY,TIMING 8 806NL-110-030 223Q0663
131 6301311616 PIN,GUIDE 28 806NL-110-031 216F0902
