MODEL DL-G100 1012-003 45 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE NB-1 1 6301518947 PLA TE 1 806NB-1 10-001 21 1DC362 2 6301518954 ROD 4 806NB-1 10-002 216C0921 3 6301498041 ROD 4 806NB-1 10-003 216C090…
MODEL DL-G100
0612-001
44
バッファ部
BUFFER SECTION
Fig. NB-1
ベース部
Base Section
10
11
52
53
52
53
6
55
67
62
.
54
.
21
20
5
3
2
56
3
2
56
42
43
66
61
.
51
.
66
61
.
51
.
1
67
62
.
54
.
MODEL DL-G100
1012-003
45
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
NB-1
1 6301518947 PLATE 1 806NB-110-001 211DC362
2 6301518954 ROD 4 806NB-110-002 216C0921
3 6301498041 ROD 4 806NB-110-003 216C0903
5 6301518596 BASE 1 806NB-110-005 210A2701
6 6301516394 BRACKET 1 806NB-110-006 21
1FB511
10 6301504063 BLOCK 2 806NB-110-010 21
1G4865
11 6301476704 GUIDE,LINEAR 2 806NB-110-011
222L0826
20 6301505886 PIN,LOCATE 6 806NB-110-100 216E1669
21 6301480664 PIN,LOCATE 2 806NB-110-101 216E1651
42 6301484112 BRACKET 1 806NB-110-042 21
1FB137
43 6301236643 AIR LINE EQPT 2 806NB-110-043 225B0494
51 6300007626 BOLT,HEX-SCT 6 M4X10 221A0017
52
6300007633 BOLT,HEX-SCT 18 M4X12 221A0018
53
6300007657 BOLT,HEX-SCT 16 M4X16 221A0020
54
6300008012 BOLT,HEX-SCT 4 M8X20 221A0056
55
4110511708 SCR TRS 4X6 4 M4X6 TRS 221E0532
56 4111411106 NUT HEX 10 4 M10 221F0091
61
4111412905 WASHER SPR 4 6 SW4 221H0284
62
4111413100 WASHER SPR 8 4 SW8 221H0291
66
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
67
4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
MODEL DL-G100
0612-001
46
バッファ部
BUFFER SECTION
Fig. NB-2

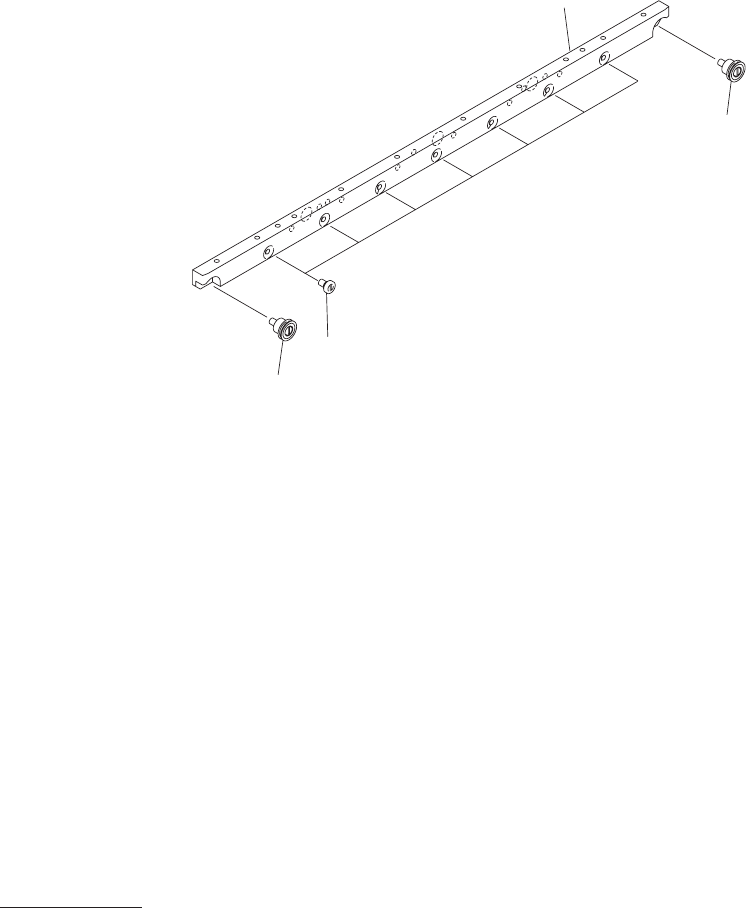

シュート
Chute
131
129
130
