MODEL DL-G100 0612-001 54 バックアップ部２ BACK UP SECTION 2 Fig. NC-1 ベース部 Base Section 48 6 1 36 44 45 6 22 22 69 64 . 58 . 56 55 56 55 41 41 42 42 25 25 8 47 46 3 7 2 2 47 46 3 7 8 69 64 . 58 . 66 61 . 54 . 66 61 . 52 . 67 62…
MODEL DL-G100
0612-001
53
Fig. NC
バックアップ部２
BACK UP SECTION 2
MODEL DL-G100
0612-001
54
バックアップ部２
BACK UP SECTION 2

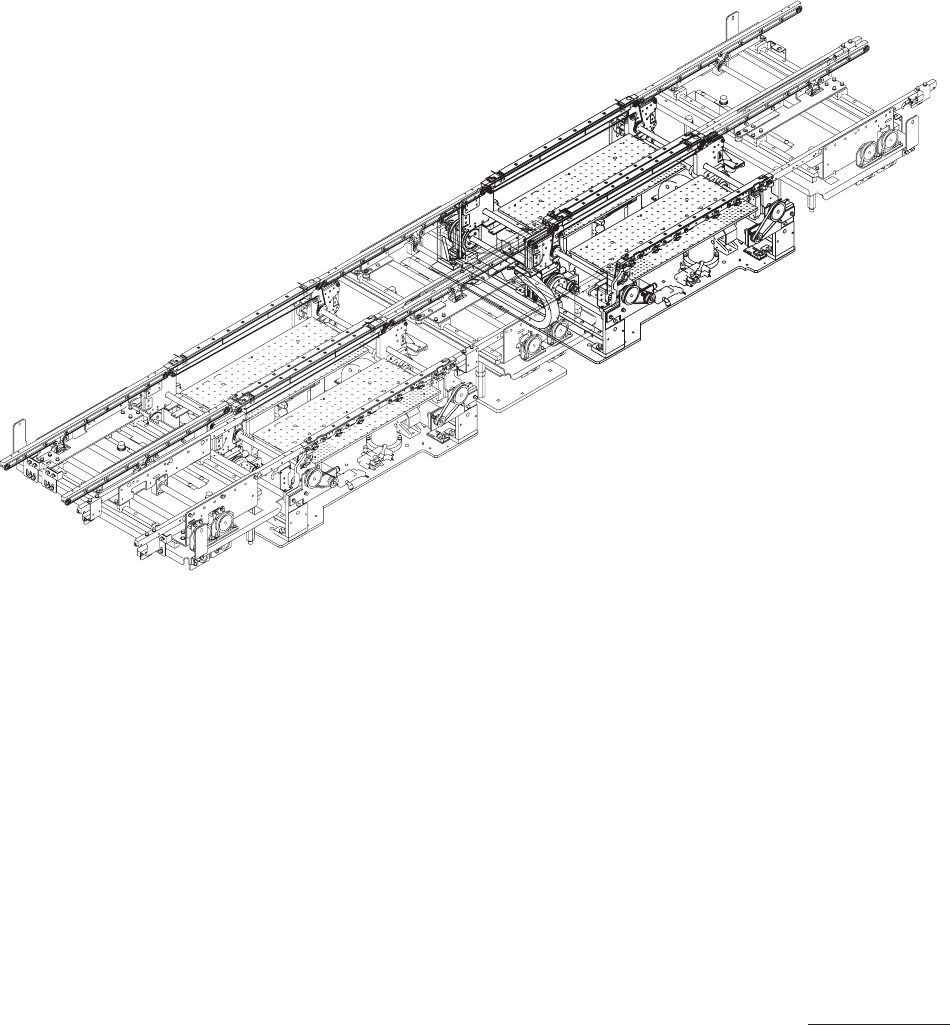

Fig. NC-1
ベース部
Base Section
48
6
1
36
44
45
6
22
22
69
64
.
58
.
56
55
56
55
41
41
42
42
25
25
8
47
46
3
7
2
2
47
46
3
7
8
69
64
.
58
.
66
61
.
54
.
66
61
.
52
.
67
62
.
53
.
66
61
.
54
.
5
4
66
61
.
51
.
66
61
.
51
.
68
63
.
57
.
66
61
.
52
.
67
62
.
53
.
66
61
.
54
.
5
4
66
61
.
54
.
9
11
10
MODEL DL-G100
1012-004
55
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301534558 BASE 1 806NC-110-001 210A2752
2 6301237039 SENSOR,PELEC 4 -B4201,-B4202Amp
806NC-110-002 23G00242
3 6301333106 VALVE 2 806NC-110-003 225C0125
4 6301106083 PIPE FITTINGS 2 806NC-110-004 225F0467
5 6300036534 AIR LINE EQPT 4 806NC-110-005 225B0059
6 6301325477 ACCESSORY,P.C.B 4 806NC-110-006 23L10096
7 6301251844 VALVE 2 806NC-110-007 225C0107
8 6301237053 VALVE 2 806NC-110-008 225C0101
9 6300955026 AIR LINE EQPT 4 806NC-110-009 225B0367
10 6301510071 PIPE FITTINGS 4 806NC-110-010 225F0685
11 6300482935 AIR LINE EQPT 8 806NC-110-011
225B0251
22 6301615462 HOLDER 4 806NC-110-102 216B1768
25 6300034271 GREASE NIPPLE 8 806NC-110-105 226B0001
36 6301483290 ROD 4 806NC-110-116
216C0889
41 6301519647 SPACER 2 806NC-110-201 21
1E1032
42 6301476704 GUIDE,LINEAR 2 806NC-110-202 222L0826
44 6301497884 BLOCK 1 806NC-110-204 21
1G4801
45 6301498997 PLATE 3 806NC-110-205 21
1DC085
46 6300000252 SENSOR,PHOTO 4 -B5101,-B5201,-B5501,
-B5502 806NC-110-206
23G10002
47 6300000269 SENSOR,PHOTO(CONNECTOR) 4 806NC-110-207 23G10003
48
6301498522 PLATE 1 806NC-110-208 21
1DC082
51 6300007510 BOLT,HEX-SCT 4 M3X8 221A0006
52
6300007527 BOLT,HEX-SCT 8 M3X10 221A0007
53
4110406202 SCR PAN 3X10 8 M3X10 PAN 221E0488
54 6300007565 BOLT,HEX-SCT 8 M3X20 221A0011
55 6300007633 BOLT,HEX-SCT 18 M4X12 221A0018
56
6300007657 BOLT,HEX-SCT 10 M4X16 221A0020
57
6300007671 BOLT,HEX-SCT 2 M4X25 221A0022
58
6300007770 BOLT,HEX-SCT 16 M5X20 221A0032
61
4111412806 WASHER SPR 3 20 SW3 221H0281
62
4110864408 WASHER SPR 3 8 SW3 F 221H0280
63
4111412905 WASHER SPR 4 2 SW4 221H0284
64
4111416705 WASHER SPR 5 16 SW5 221H0287
66
4111413902 WASHER V 3X7X0.5 20 FW3 221H0312
67
4111191909 WASHER V 3X7X0.5 8 FW3 F 221H0311
68 4111414008 WASHER V 4X9X0.8 2 FW4 221H0315
69
4111414107 WASHER V 5X10X1 16 FW5 221H0318
3
NC-1
