MODEL DL-G100 1012-003 87 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE ND-1 51 630152831 1 CORD 1 806ND-1 10-351 4W203857 52 6301528328 CORD 1 806ND-1 10-352 4W203858 61 6301478272 ASSY ,CORD 1 806ND-1 10-25…
MODEL DL-G100
0612-001
86
ケーブル
CABLE

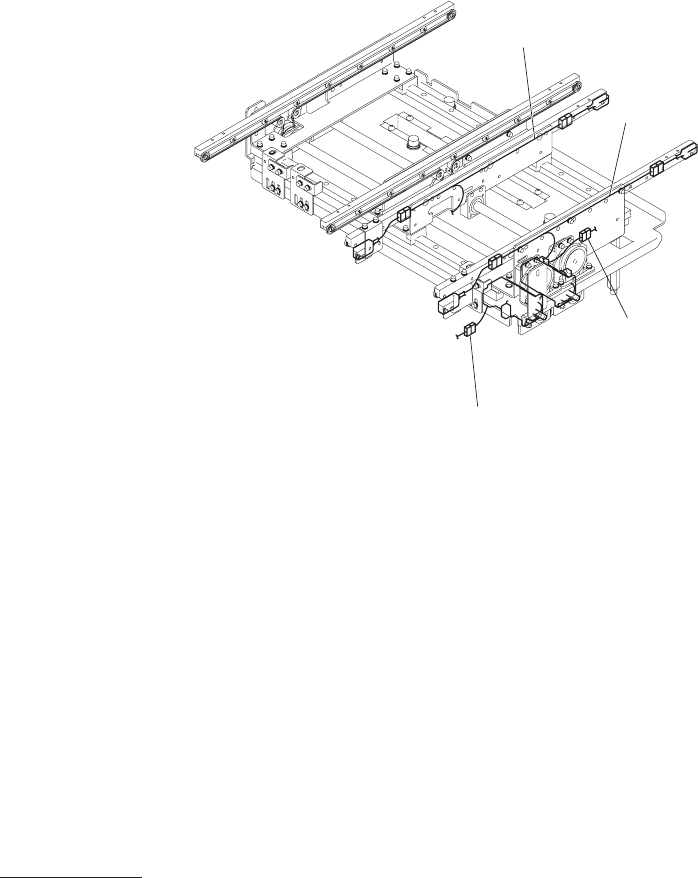

Fig. ND-1
供給コンベア
Input Conveyor
52
51
61
65
MODEL DL-G100
1012-003
87
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ND-1
51 6301528311 CORD 1 806ND-110-351 4W203857
52 6301528328 CORD 1 806ND-110-352 4W203858
61 6301478272 ASSY,CORD 1 806ND-110-251 0W201254
65 6301478302 ASSY,CORD 1 806ND-110-255 0W201257
MODEL DL-G100
0612-001
88
ケーブル
CABLE

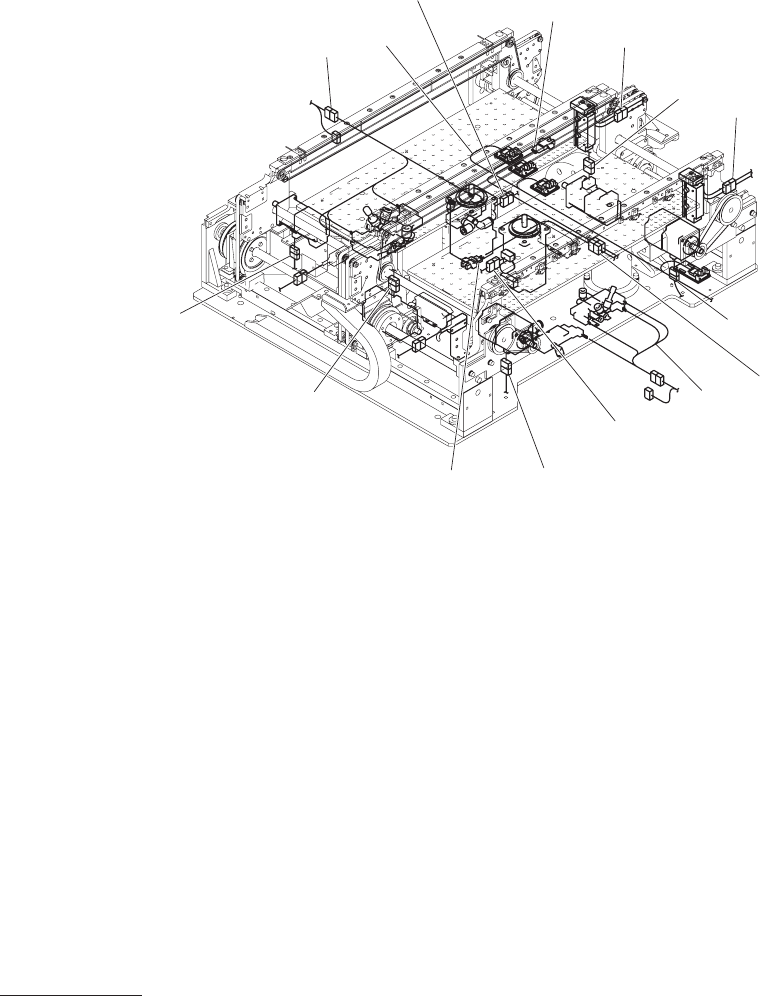

Fig. ND-2
バックアップ部１
Back Up Section 1
156
See Fig.BA-2
Key No.181,183
160
180
182
172
176
See Fig.BA-2
Key No.182,184
157
See Fig.BA-2
Key No.185
161
154
158
181
159
