MODEL DL-G100 1012-003 91 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE ND-3 262 6301510330 CORD 1 806ND-1 10-362 4W203802 263 6301528380 CORD 1 806ND-1 10-363 4W203864 264 6301528397 CORD 1 806ND-1 10-364 4W…
MODEL DL-G100
0612-001
90
ケーブル
CABLE

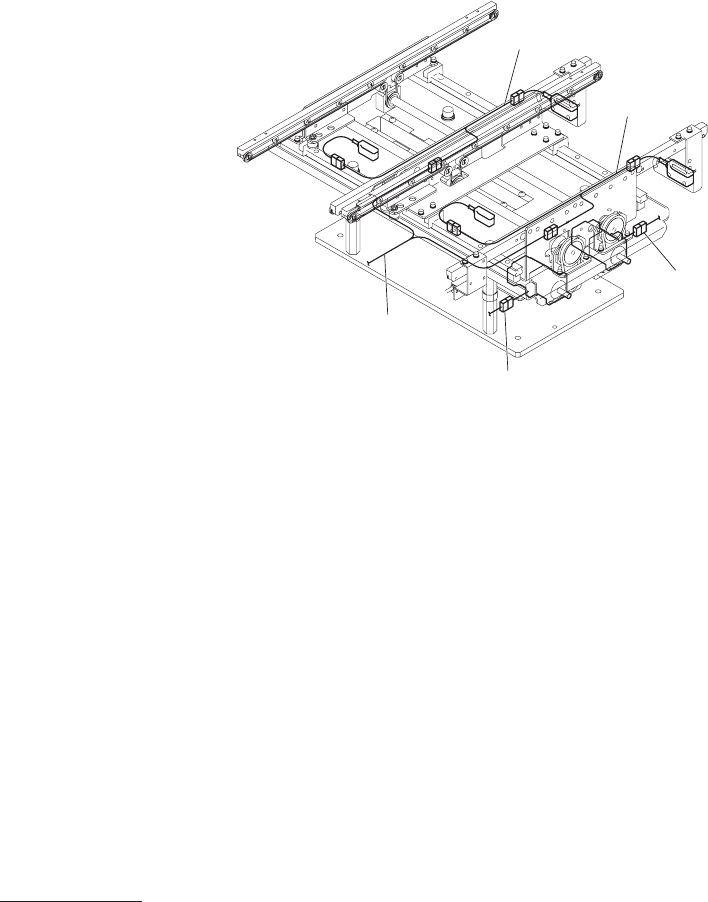

Fig. ND-3
バッファ部
Buffer Section
262
273
275
264
263
MODEL DL-G100
1012-003
91
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
ND-3
262 6301510330 CORD 1 806ND-110-362 4W203802
263 6301528380 CORD 1 806ND-110-363 4W203864
264 6301528397 CORD 1 806ND-110-364 4W203865
273 6301478296 ASSY,CORD 1 806ND-110-253 0W201256
275 6301478326 ASSY,CORD 1 806ND-110-257 0W201259
MODEL DL-G100
0612-001
92
ケーブル
CABLE
Fig. ND-4
バックアップ部２
Back Up Section 2
368
383
385
384
374
379
See Fig.BC-2
Key No.181,183
372
See Fig.BC-2
Key No.182,184
369
See Fig.BC-2
Key No.185
373
366
370
371
