4022 591 96082 User Re ference Manual 02.02 FCM Multiflex 5-45 MIS T ABLE 5- 20 fcm0 544a.ep s FIGURE 5-8 E x ample of tim e elemen ts from the [Pr odu ction times ...] r eport Repor t text Explanation Wai ting f or oper…
MIS
User Reference Manual 4022 591 96082
5-44 FCM Multiflex 02.02
fcm0543a.tif

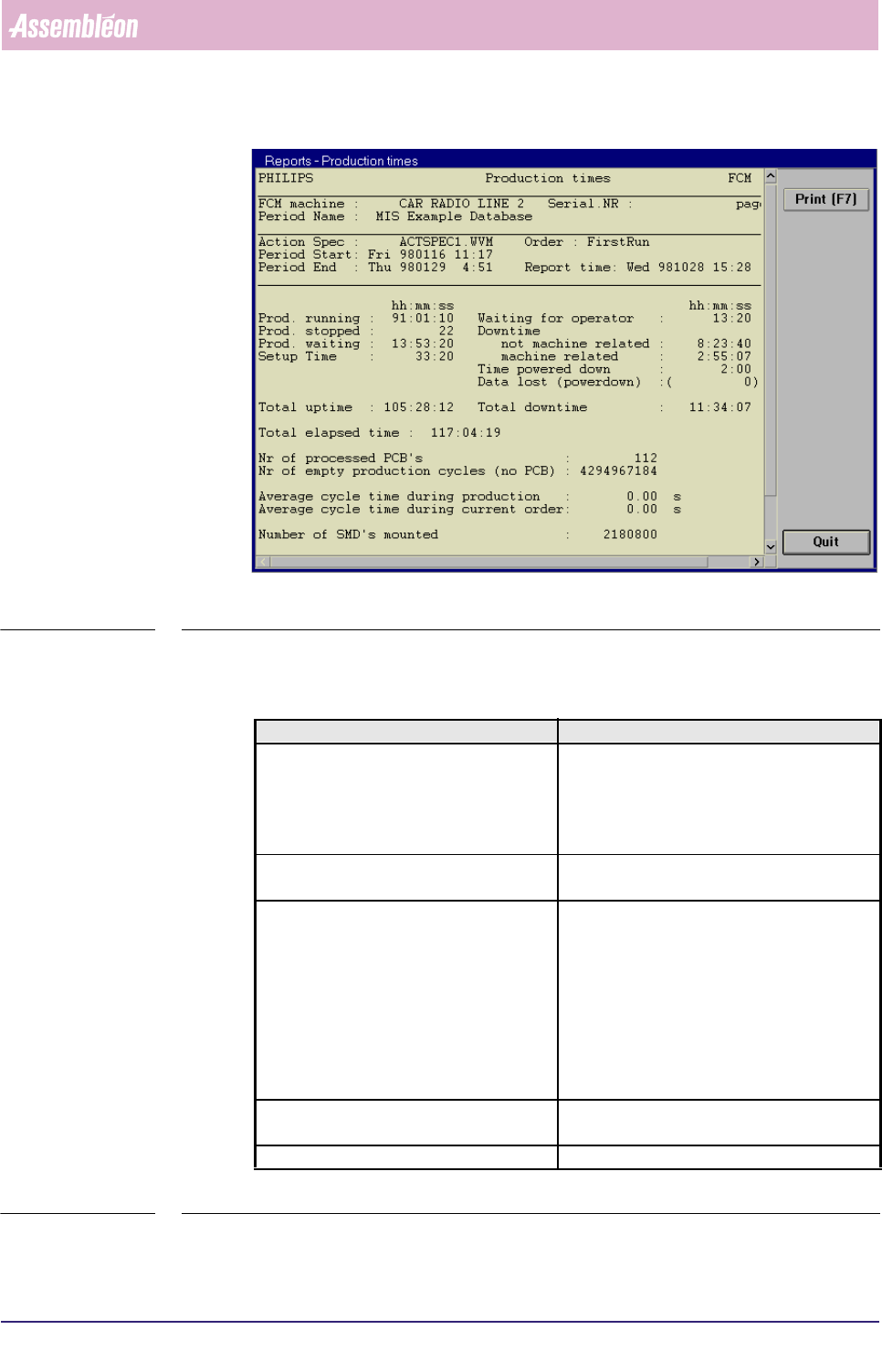

SCREEN 5-35 [Production times...] screen example
✱✱Detailed Information
▼Displayed Information
TABLE 5-19
Report text Explanation
Prod. running
■ the total time for which production has
been running
■ please note that this time is defined as the
sum of the [Running] and [Waiting (board
in runin/runout)] times
Prod. stopped the total time for which the production has
been paused (stopped by the operator)
Prod. waiting the total time the FCM Multiflex was
■ waiting for a board to enter the run-in
section while all carriers were empty
■ waiting for a board to leave the run-out
section while all carriers were occupied +
all SMDs have been placed (for instance,
no boards allowed to leave the run-out
section as a SMEMA-busy signal was given
by the upstream unit)
Setup Time the time between order entry and production
start + the time after the order was completed
Total uptime the sum of the previous 4 items
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 5-45
MIS
TABLE 5-20
fcm0544a.eps

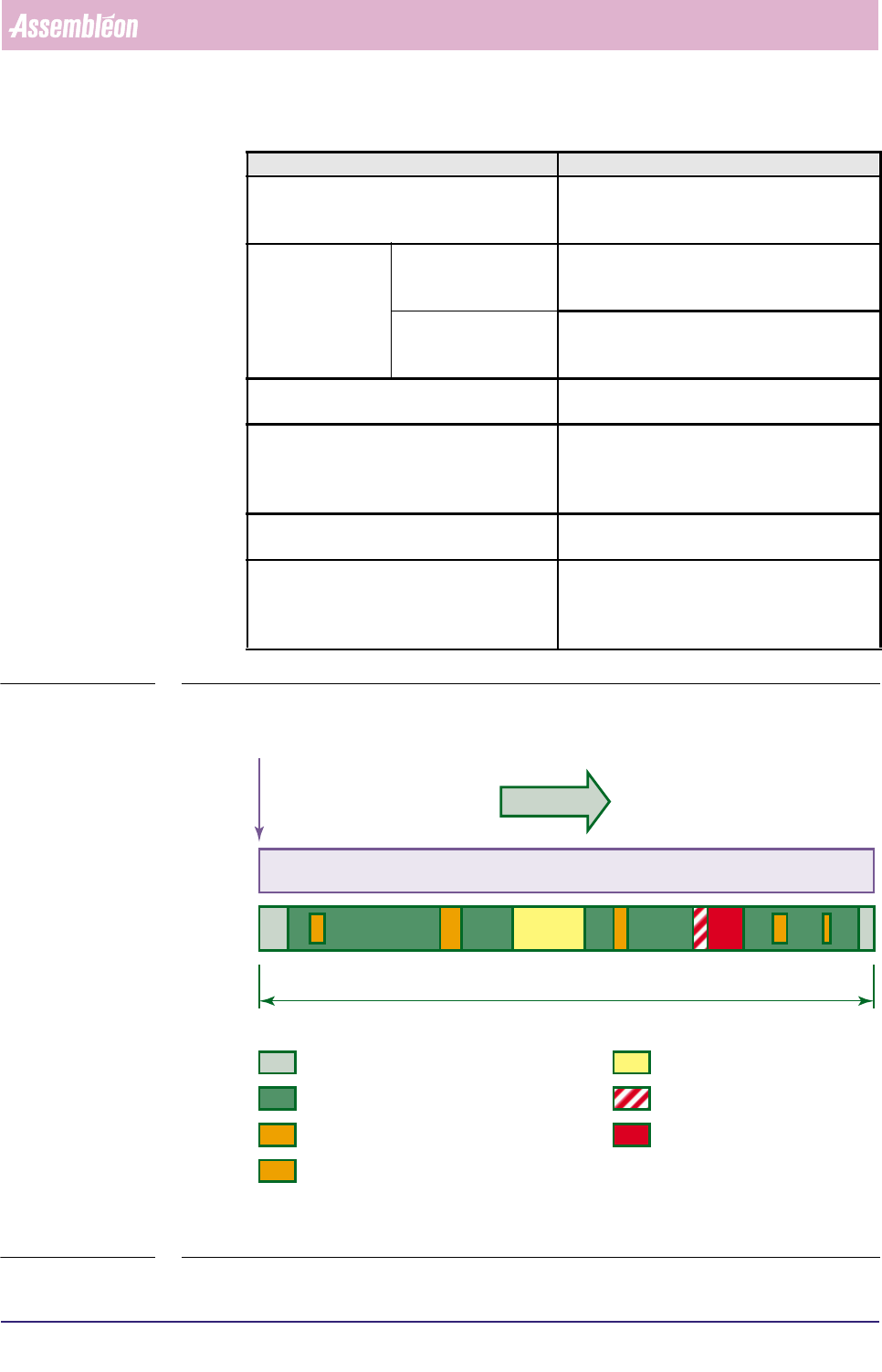

FIGURE 5-8 Example of time elements from the [Production times...] report
Report text Explanation
Waiting for operator the total Waiting-for-operator time during error
(time between occurrence of the error and the
moment the operator starts with recovery)
Downtime not machine related the total time the FCM Multiflex has stopped
due to not-machine related errors; for
instance an empty tape
machine related the total time the FCM Multiflex has stopped
due to machine-related errors; for instance a
servo error
Time powered down the total time for which the FCM Multiflex has
been pow-ered down
Data lost (power down) the total time for which MIS data was lost due
to power down; for instance the MIS data had
not yet been stored when the power went
down
Total downtime the sum of the previous 4 items excluding
“Data lost due (power down)”
Total elapsed time the total elapsed time for this MIS period so
far, counted from the first production started
situation up till the last production stopped sit-
uation (see also section 5.2.3.2)
new order A entered
MIS period A
Total elapsed time
Setup Time Prod. stopped
Waiting for operator
Downtime
Prod. running
Waiting (PCB to enter/leave system)
Prod. waiting (All carriers empty while waiting for a PCB to enter, or
all carriers occupied + all SMDs placed while waiting for a PCB to leave)
!
!!
MIS
User Reference Manual 4022 591 96082
5-46 FCM Multiflex 02.02
TABLE 5-21
▼ Controls
The controls on the right of the screen (see SCREEN 5-35) have the functions:
■ select
[Print (F7)] or press <F7> to print the report
■ select
[Quit] to leave the [Production times...] menu
Report text Explanation
Nr of processed
boards
the total number of processed boards, which means the good + the
skipped + the suspected boards all together
Nr of empty produc-
tion cycles (no board)
■ the number of production cycles in which no boards were
loaded in the FCM Multiflex (all transport carriers empty)
■ this is an indication of how (in)efficient your FCM Multiflex
worked
Average cycle time
during production
■ the average production cycle time per board calculated for the
production running time
■ this is:
production running time
number of processed boards number of empty production cycles
Average cycle time
during current order
■ the average production cycle time per board calculated for the
total elapsed time
■ this is:
total elapsed time
number of processed boards number of empty production cycles
Number of SMD’s
mounted
total number of all SMDs that had been placed on the boards so far
during the current MIS period
