MIS
User Reference Manual 4022 591 96082
5-62 FCM Multiflex 02.02
✱✱Detailed Information
▼Displayed Information
The [Error history...] report gives a chronological log of all machine errors and
process errors.
Report text explanation
fcm0558a/0559a.tif

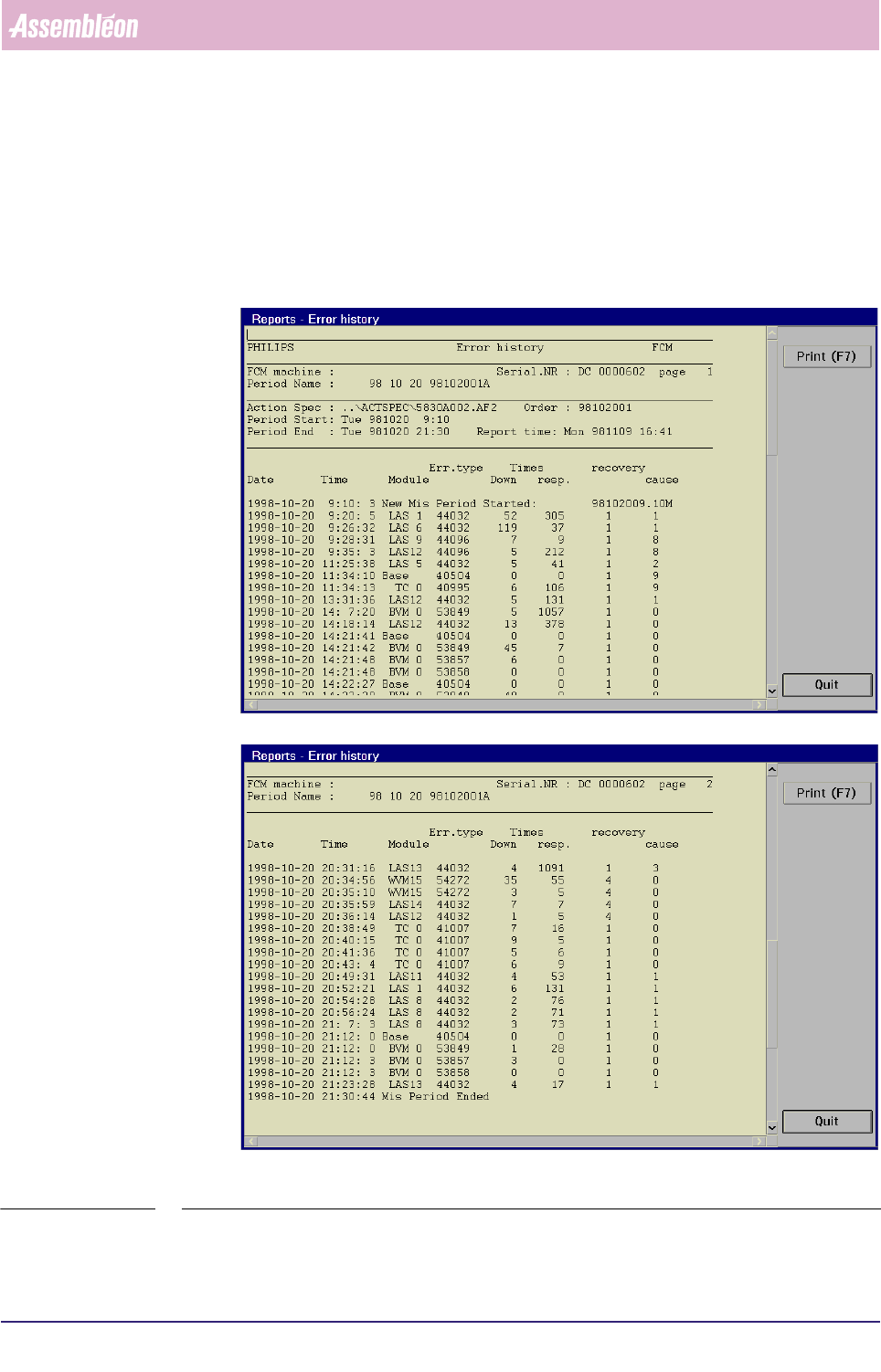

SCREEN 5-52 [Error history...] screen examples (page 1 and page 2)
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 5-63
MIS
TABLE 5-30
Error type code list
Report text Explanation
Date the date of the error occurrence
Time the time of the error occurrence
Module the FCM Multiflex module concerned
Err. type ➤ SEE ERROR TYPE CODE LIST
Times Down the FCM Multiflex down time - excluding
operator response time - expressed in
hh:mm:ss, where hh = hours, mm = minutes,
and ss = seconds
resp. response time = the time between
occurrence of the error and the moment the
operator started with recovery (the Waiting-
for-operator time, see also FIGURE 5-8)
recovery recovery action number, where
1 = retry
2 = skip action
4 = skip board
cause the error cause number
the meaning of the used numeric codes is
appointed in the [Parameters] > [Error
causes] list as filled in by the supervisor, see
section 3.9.3
Error code Subsystem Error description
40501 Base Emergency button pressed
40502 Phase inspection error
40504 Servo power missing
40505 Vacuum inspection error
40506 Air pressure insufficient
40961 TC Communication error: BEAM servo
40962 Communication error: HOIST servo
40963 Communication error: RUNIN servo
40964 Communication error: RUNOUT servo
40965 Communication timeout: BEAM servo
40966 Communication timeout: HOIST servo
40967 Communication timeout: RUNIN servo
40968 Communication timeout: RUNOUT serv
40969 Servo tracking error on BEAM
40970 Servo tracking error on HOIST
40971 Unknown error (TC AST11)
40972 Unknown error (TC AST12)
40973 Error on BEAM movement: Motor Off
MIS
User Reference Manual 4022 591 96082
5-64 FCM Multiflex 02.02
Error code Subsystem Error description
40974 TC Error on HOIST movement: Motor Off
40975 Unknown error (TC AST15)
40976 Unknown error (TC AST16)
40977 Homing error BEAM: no right stop
40978 Homing error HOIST: no up stop
40979 Unknown error (TC AST19)
40980 Unknown error (TC AST20)
40981 Homing error BEAM: Pulse not found
40982 Homing error HOIST: Pulse not foun
40983 Unknown error (TC AST23)
40984 Unknown error (TC AST24)
40985 Homing error BEAM: no left stop
40986 Homing error HOIST: no down stop
40987 Unknown error (TC AST27)
40988 Unknown error (TC AST28)
40989 Homing error BEAM: move obstructed
40990 Homing error HOIST: move obstructe
40991 Unknown error (TC AST31)
40992 Unknown error (TC AST32)
40993 Board stuck in run-in section
40994 Timeout on HOIST movement
40995 Board stuck in run-out section
40996 Centering board in run-in failed
40997 Requested BEAM pos. out of range
40998 Requested HOIST pos. out of range
40999 Stopper run-in front does not work
41000 Stopper run-in rear does not work
41001 Unexpected board in run-in section
41002 No actionspec. available
41003 Index number out of range
41004 No command available ( do_step)
41005 SMEMA runout blocked
41006 Bad or suspected board in run-out
41007 Board missing in run-out section
41008 Transport not homed yet
41009 Requested func. can’t be performed
41010 Continuation not possible: restart
41011 TC lost location of boards
41012 Servo amplifiers disabled
41013 Unexpected board in runin - remove
