Human Interface
User Reference Manual 4022 591 96082
3-12 FCM Multiflex 02.02
3.5 Function and Control Keys
TABLE 3-1 Function and Control keys
Key Function
<Esc> Cancel current dialogue or menu screen.
<F1> Help, general and context sensitive
<F2> Show the MIS Process Graph of the currently running Order
<F3> Error recovery, show Error recovery dialogue
<F4> FCM Multiflex Warnings, show Warning recovery dialogue ; Drops down List Box (if not dropped already)
<F5> Start, production
<F6> Stop, production
<F7> Variable meaning, depending on active dialogue
<F8> Displays Order Setup dialogue ; If FCM Multiflex Status = Change Setup!, displays Order-Setup-View dialogue
<F9> Variable meaning, depending on active dialogue
<F10> Menu, display WVM Monitor ; Error Recovery Dialogue: Maximize WVM Monitor display
<F11> Variable meaning, depending on active dialogue
<Tab> Next group, used in dialogue to advance to the next group, sequence defined in dialogues
<Shift>+<Tab> Previous group, used in dialogue to go back to the previous group, sequence defined in dialogues
<Enter> Activate current selection
<Alt> Menu, activate bar (used in combination with underlined letter)
<Home> Move cursor in a pull-down menu/dialogue to the beginning
<End> Move cursor in a pull-down menu/dialogue to the end
<Space> Selects or deselects a check box or an item in a listbox
<Delete> Delete character highlighted by cursor
<Backspace> Delete character to the left of the character highlighted by the cursor
<Insert> Insert character to the right of highlighted character
<Page Down> Move cursor in list one page down
<Page Up> Move cursor in list one page up
Left control button Activate option currently pointed at. Holding the left control button while pointing at the upper border of a dialogue
screen permits the moving of the box within the menu. Double-tapping maximizes WVM Monitor display in the
Error Recovery Dialogue.
↑ Move cursor upwards in pull-down menu, dialogue or list
↓ Move cursor from main menu to pull-down menu, and move cursor downwards in pull-down menu, dialogue or list
→ Move cursor to the right in menu bar/dialogue
← Move cursor to the left in menu bar/dialogue
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 3-13
Human Interface
3.6 On-line Help operation
Depending on the context, on-line help information is available for the user of the
FCM Multiflex system. It can be obtained when pressing function key <F1> after:
■ An FCM Multiflex function has been highlighted in a pull-down menu.
This will give a description of the function itself.
■ Entering a function dialogue.
This will give the following information:
• A description of the function.
• Operating instruction.
• Displayed information.
• Errors which may occur (only if available).
■ An error or warning message is displayed (either immediately after display or
after entering the “Error Recovery” or “FCM Multiflex Warnings” dialogue).
If more than one error and/or warning is displayed, the operator has to select
one first by:
• Pressing the space bar (first item will be highlighted) and moving the ↑ and ↓
cursor keys to the requested message.
• Tapping the touch pad directly on the requested message.
This will give the following information:
• A description of the error/warning.
• Possible cause of the error/warning.
• Possible error recovery method.
Human Interface
User Reference Manual 4022 591 96082
3-14 FCM Multiflex 02.02
3.7 Quick Reference of Human Interface Functions
This section gives an overview of all accessible functions in the Human Interface of
the FCM Multiflex.

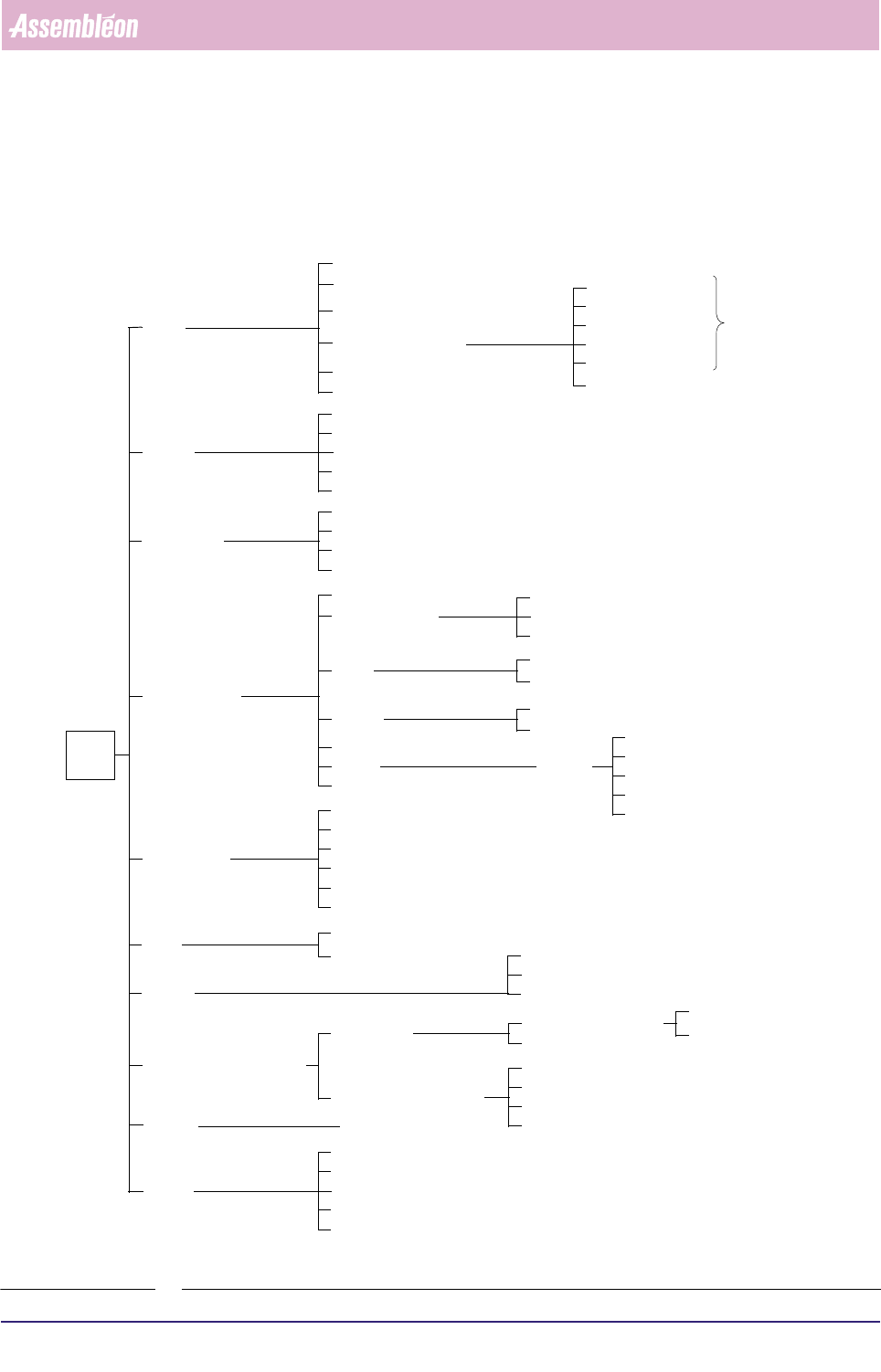

FIGURE 3-1 Main Menu
Main
Operator...
Supervisor...
Maintenance/
Entry...
Schedule...
Module Setup... [F8]
Runout...
Abort...
Start... [F5]
Error Recovery... [F3]
FCM Multiflex Warnings... [F4]
LAS
WVM
BVM
BI (optional)
Associate...
Help Index
User
Order
Production
Configuration
ActionSpec
Help
Extended Help
Keys Help
MIS
Edit...
Menu
Stop... [F6]
TC
Copy from Archive...
Copy to Archive...
Maintenance/
Shutdown FCM Multiflex...
FCM Multiflex Base System
WVM
TC
LAS
BVM
BI (optional)
Available Module (LAS) Number(s)
Available Module (WVM) Number(s)
Delete...
Format...
Functions... (see Figure 3-10)
Summary... [F2]
Help for Help
About FCM Multiflex...
Calibration
Calibration - Functions...
System Calibration File
Service Engineer...
Service Functions
Exit
Exit
Exit
Bad Mark Sensing
Fiducial Alignment
Board Vision Module
Options
Edit...
Copy from Archive...
Copy to Archive...
Delete...
Exit
Create Order...
Create System
Calibration File...
Transport Calibration
see Figure 3-9
Video
Online/Offline
Remote/Local
Enable/Disable
Display... [F10]
Fiducial Offset Check
SECS-II / GEM
System Parameters...
HOST
Online/Offline
Remote/Local
Enable/Disable
FCM Base System
