1.2.4 Use as prescribed
The product must only be used for its intended purposes as described in the catalogs and
technical descriptions, namely the placement of SMD components, and only with the third-
party equipment and components recommended or permitted by SIEMENS A&D. Use for a
different or extended purpose is not prescribed.
If the product is not used as prescribed, SIEMENS accepts no liability for any damage that
may occur and does not guarantee that the components will work properly and without
problems.
Use as prescribed also includes compliance with all the instructions in the user manual.
For the product to operate correctly and reliably, it must have been transported, stored,
erected and assembled correctly and must be operated and maintained with care.
1.2.5 Failure to use as described
Failure to use the product as prescribed can result in both danger to life and limb and
material damage. For this reason any use that is not prescribed is not allowed. If the product
is not used as prescribed, SIEMENS accepts no liability for any damage that may occur and
does not guarantee that the components will work properly and without problems.
Failure to use the placement machine as prescribed includes, for example the operation of
the station without safety cover or with safety cover without function.
1-6
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
1.3 Product description
1.3.1 Product overview
AVSP consists of 3 main components, which are:
(1) Support Pin Block or Pin Module
(2) Control Unit
(3) User Interface Pendant or Teach Pendant

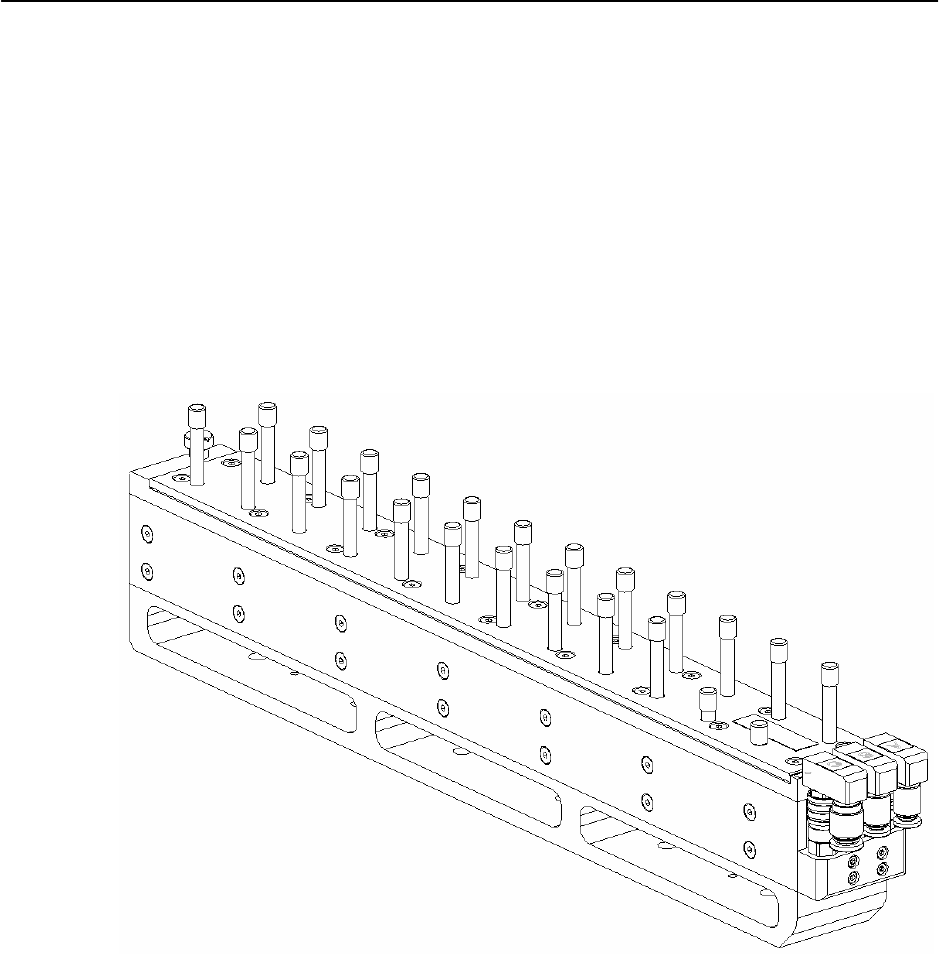

Figure 1.3.1-1 Pin module
1-7
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
Figure 1.3.1-2 Control unit
Figure 1.3.1-3 Teach pendant
