Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP) Edition 04/2006 These components are connected to each other ele ctrically and pneumatically to function. Figures below show an overview of…
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006

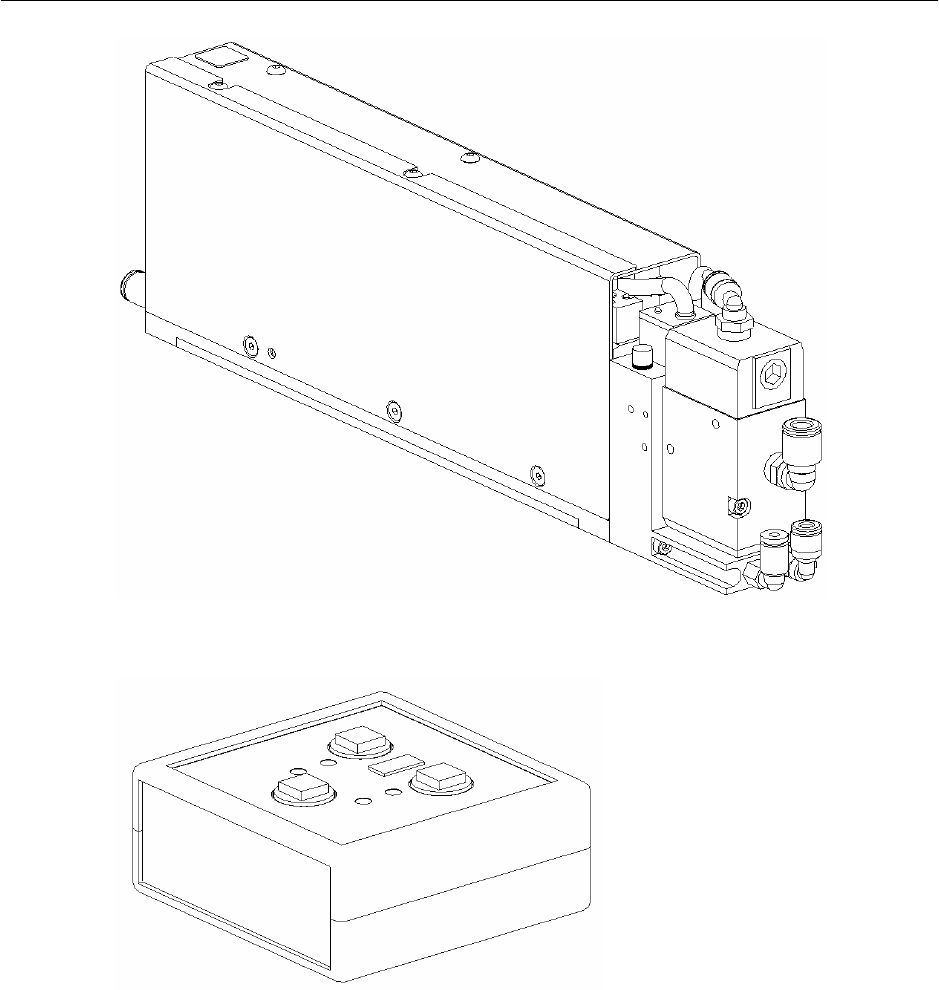

Figure 1.3.1-2 Control unit
Figure 1.3.1-3 Teach pendant
1-8
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006
These components are connected to each other electrically and pneumatically to function.
Figures below show an overview of interconnection on both the single and dual conveyor
SIPLACE HS-60 machine.
Figure 1.3.1-4 Overview of interconnection on single conveyor SIPLACE machine (HF & HS-60)
1-9
Retrofit Instructions & User’s Manual / Automatic Vacuum Support Pins (AVSP)
Edition 04/2006

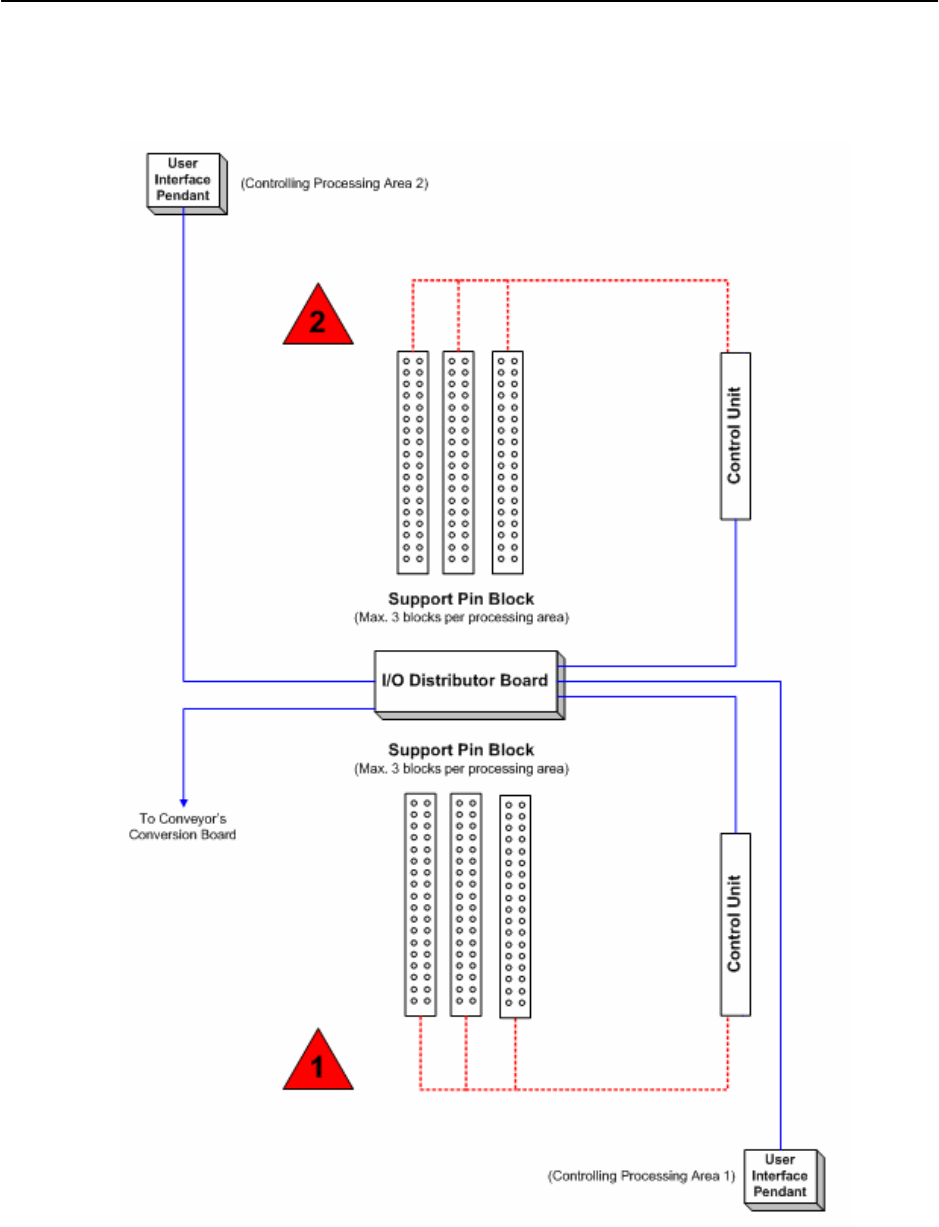

Figure 1.3.1-5 Overview of interconnection on dual conveyor SIPLACE machine (HF & HS-60)
1-10
